COWLING

ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

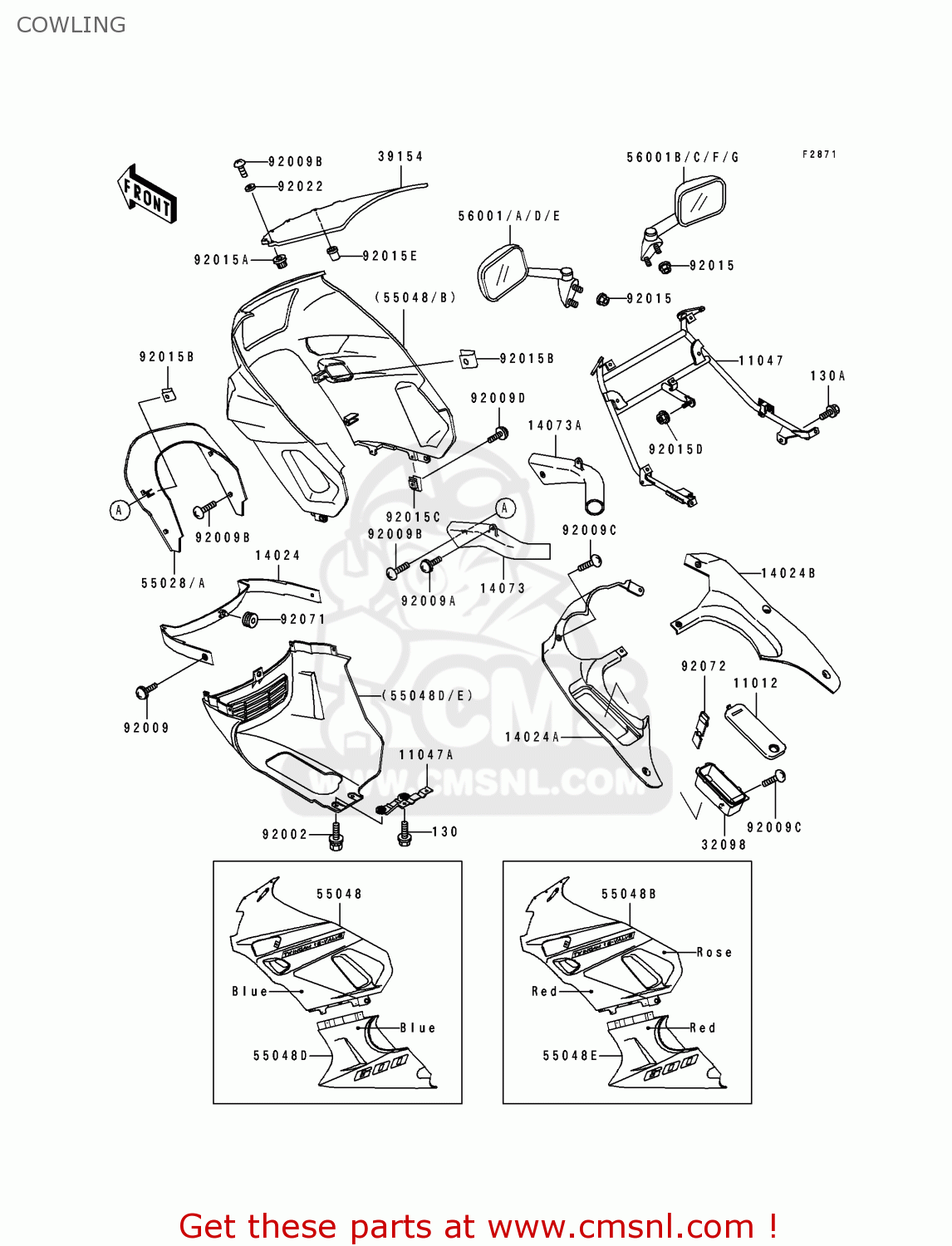

Cowling diagram ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

COWLING ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121735
ref: 11012
CAP,INNER COWLING,LH
110121735
€ 18.50
11047
110461962
ref: 11047
BRACKET,COWLING
110461962
€ 223.50
11047A
110471091
ref: 11047A
BRACKET,LWR COWLING
110471091
€ 17.00
14024
140241877GD
ref: 14024
COVER,COWLING,CNT,G.G
140241877GD
€ 79.00
14024A
140241901
ref: 14024A
COVER,INNER COWLING,L
140241901
€ 67.00
14024B
140241902
ref: 14024B
COVER,INNER COWLING,R
140241902
€ 64.00
14073
140731426
ref: 14073
DUCT,AIR INTAKE,LH
140731426
€ 25.50
14073A
140731427
ref: 14073A
DUCT,AIR INTAKE,RH
140731427
€ 12.50
32098
320981093
ref: 32098
CASE-TOOL
320981093
€ 24.00
39154
391541109
ref: 39154
WINDSHIELD
€ 167.00
55028
550281244FC
ref: 55028
EUFRGRITNRSDSPSTUKWG
COWLING,FR,C.A.BLUE
€ 106.00
55028A
550281244L1
ref: 55028A
COWLING,FR,C.C.RED
550281244L1
€ 106.00
55048
550485428GX
ref: 55048
EUFRGRITNRSDSPSTUKWG
COWLING.,UPP,BLUE/BLU
€ 765.50
55048B
550485430HF
ref: 55048B
COWLING.,UPP,RED/ROSE
€ 765.50
55048D
550485432GX
ref: 55048D
EUFRGRITNRSDSPSTUKWG
COWLING.,LWR,BLUE/BLU
€ 375.50
55048E
550485433HF
ref: 55048E
COWLING.,LWR,RED/ROSE
€ 375.50
56001
560011392FC
ref: 56001
GRNRSDSTWG
MIRROR-ASSY,LH,C.A.BL
560011392FC
€ 113.00
56001A
560011392L1
ref: 56001A
ARGRNRSDSTWG
MIRROR-ASSY,LH,C.C.RE
560011392L1
€ 123.00
56001B
560011393FC
ref: 56001B
GRNRSDSTWG
MIRROR-ASSY,RH,C.A.BL
560011393FC
€ 113.00
56001C
560011393L1
ref: 56001C
ARGRNRSDSTWG
MIRROR-ASSY,RH,C.C.RE
€ 119.00
56001D
560011394FC
ref: 56001D
EUFRITSPUK
MIRROR-ASSY,LH,C.A.BL
560011394FC
€ 113.00
56001E
560011394L1
ref: 56001E
EUFRITSPUK
MIRROR-ASSY,LH,C.C.RE
560011394L1
€ 113.00
56001F
560011395FC
ref: 56001F
EUFRITSPUK
MIRROR-ASSY,RH,C.A.BL
560011395FC
€ 113.00
56001G
560011395L1
ref: 56001G
EUFRITSPUK
MIRROR-ASSY,RH,C.C.RE
560011395L1
€ 119.00
92002
920021242
ref: 92002
BOLT
920021242
€ 3.00
92009
920091287
ref: 92009
SCREW,6X14
920091287
€ 1.50
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0812
ref: 130A
BOLT-FLANGED
130J0812
€ 0.50
92009A
920091288
ref: 92009A
SCREW,6X14
920091288
€ 2.00
92009B
920091301
ref: 92009B
SCREW,5X16
920091301
€ 0.50
92009C
920091611
ref: 92009C
SCREW,6X14
920091611
€ 2.50
92009D
920091621
ref: 92009D
SCREW
920091621
€ 1.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92015A
920151343
ref: 92015A
NUT,5MM,COWLING
920151343
€ 3.00
92015B
920151573
ref: 92015B
NUT,5MM
920151573
€ 4.50
92015C
920151602
ref: 92015C
NUT,6MM
920151602
€ 4.50
92015D
920151696
ref: 92015D
NUT,FLANGED,LOCK,8MM
920151696
€ 3.00
92015E
920151757A
ref: 92015E
NUT,5MM
920151757A
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92072
920721235
ref: 92072
BAND,L=300
920721235
€ 12.00
