GEAR CHANGE MECHANISM

ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

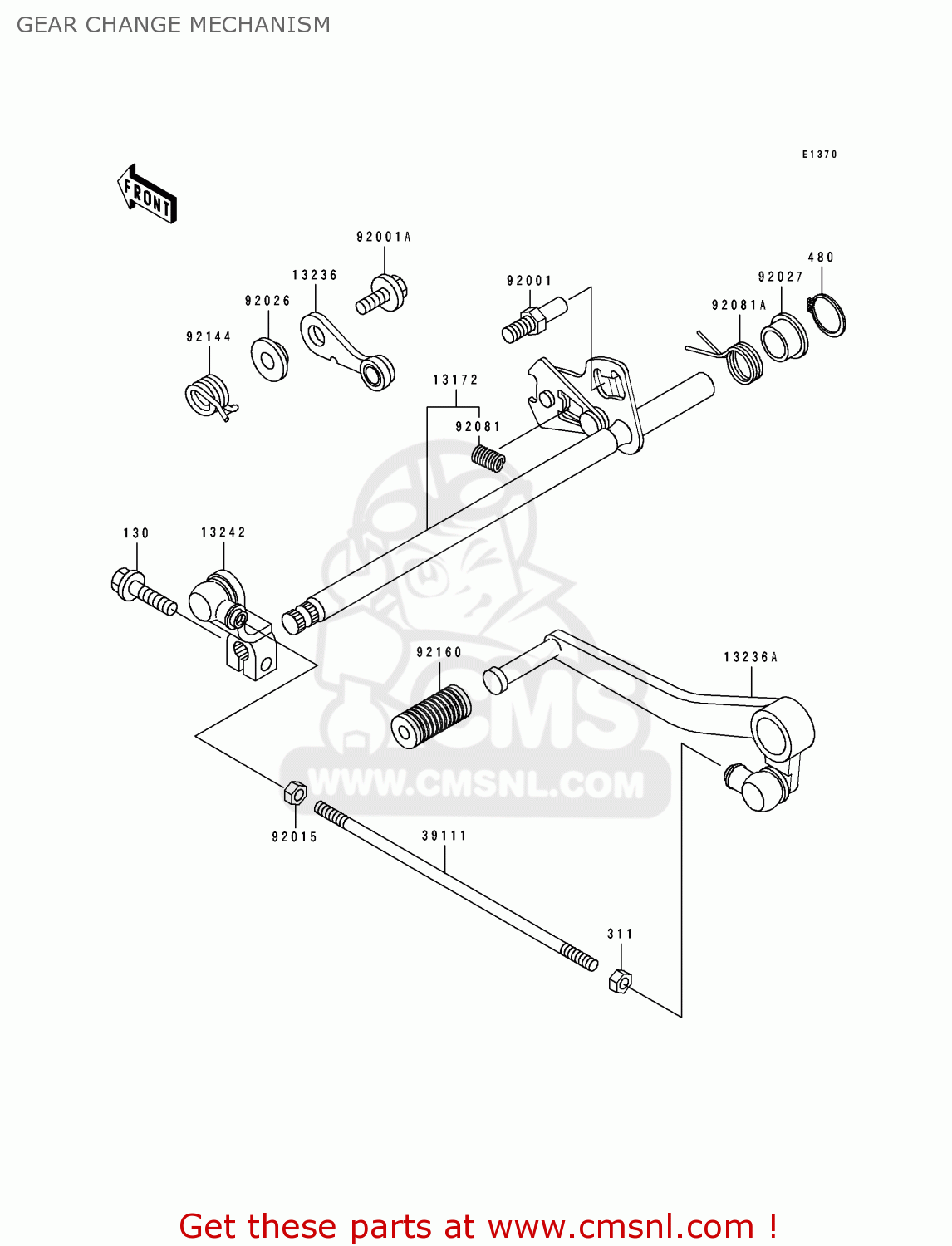

Gear change mechanism diagram ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

311

311J0600
ref: 311

NUT-HEX

€ 1.00

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13172

131721072
ref: 13172

SHAFT-ASSY-CHANGE

€ 89.00

13236

132361209
ref: 13236

LEVER-COMP,NEUTRAL PO

€ 13.00

13236A

132361211
ref: 13236A

LEVER-COMP,CHANGE PED

€ 72.50

13242

132421285
ref: 13242

LEVER-ASSY-CHANGE,BOS

€ 24.00

39111

391111057
ref: 39111

ROD-TIE

€ 7.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92001A

920011516
ref: 92001A

BOLT,W/WASHER,6X12

€ 3.00

92015

920151178
ref: 92015

NUT

€ 2.50

92026

920261217
ref: 92026

SPACER

€ 3.50

92027

920271801
ref: 92027

COLLAR,13X18X9

€ 5.50

92081

920811275
ref: 92081

SPRING CHANGE LEVER

€ 2.50

92081A

920811279
ref: 92081A

SPRING,CHANGE LEVER R

€ 4.50

92144

921441478
ref: 92144

SPRING,NEUTRAL POSITI

€ 3.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
