TAILLIGHT(S)
ZX550A5 GPZ550 1988 EUROPE FG GR

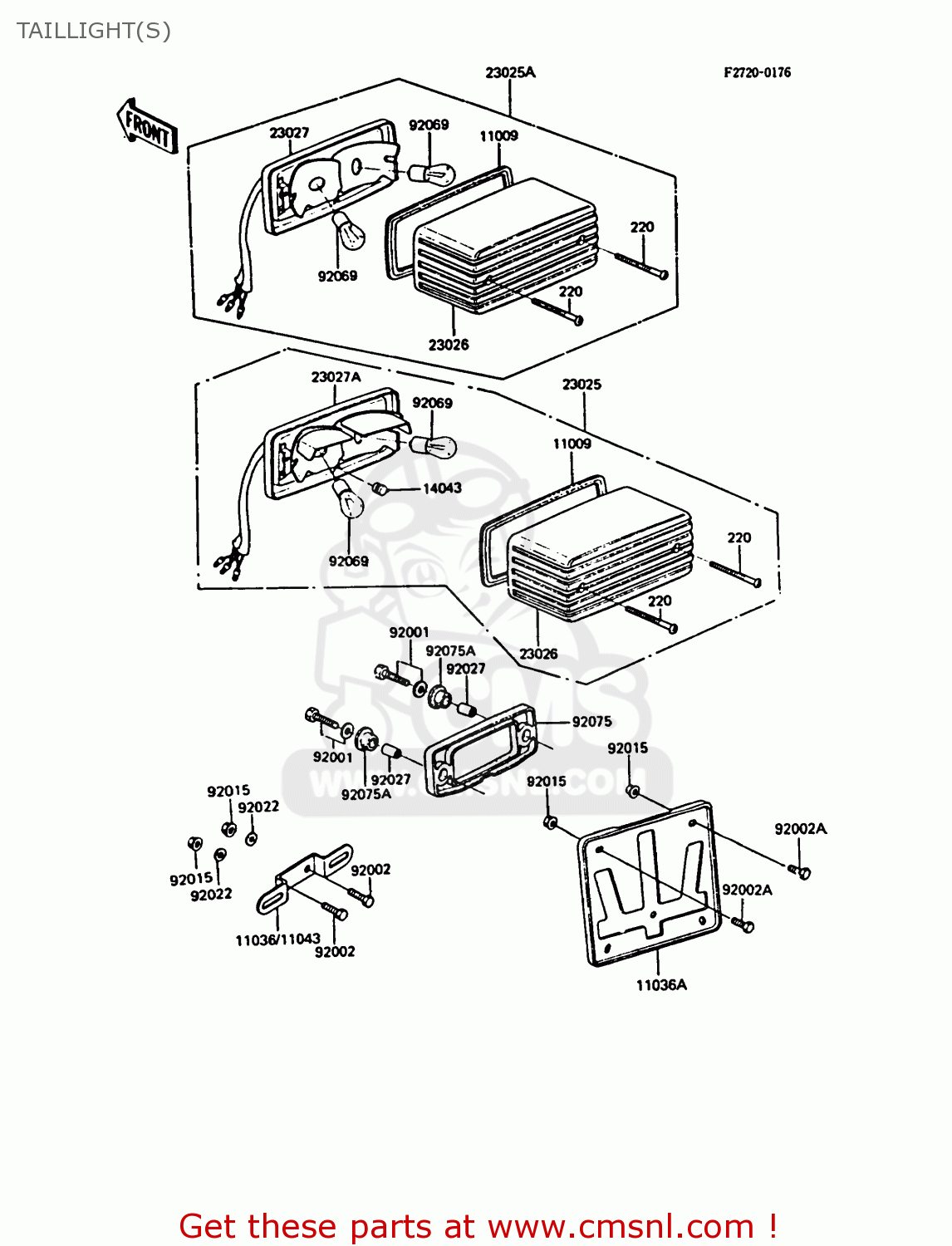

Taillight(s) diagram ZX550A5 GPZ550 1988 EUROPE FG GR
TAILLIGHT(S) ZX550A5 GPZ550 1988 EUROPE FG GR
×
prices are in EUR
ref
part #
description
quantity
220
220C0465
ref: 220
SCREW-PAN-CROS
€ 2.50
11009
110091221
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 8.50
11036
110361040
ref: 11036
EUGR
BRACKET-A,LICENSE PLT
€ 13.00
11043
110431572
ref: 11043
FG
BRACKET,LICENSE PLATE
€ 6.50
14043
140431004
ref: 14043
FG
FILTER
€ 2.50
23025
230251040
ref: 23025
FG
LAMP-TAIL
€ 175.00
23025A
230251134
ref: 23025A
EUGR
LAMP-TAIL
€ 125.50
23026
230261075
ref: 23026
LENS,TAIL LAMP
€ 126.00
23027
230271026
ref: 23027
EUGR
BODY-COMP-TAIL LAMP,B
€ 121.50
23027A
230271027
ref: 23027A
FG
BODY-COMP-TAIL LAMP
€ 175.00
92001
920011776
ref: 92001
BOLT,6X30
€ 3.00
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271400
ref: 92027
COLLAR,6.8X10X21
€ 3.50
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92075
920751282
ref: 92075
DAMPER,TAIL LAMP
€ 13.00
92075A
920751367
ref: 92075A
DAMPER,TAIL LAMP
€ 3.00
