SWINGARM
ZX550A5 GPZ550 1988 EUROPE FG GR

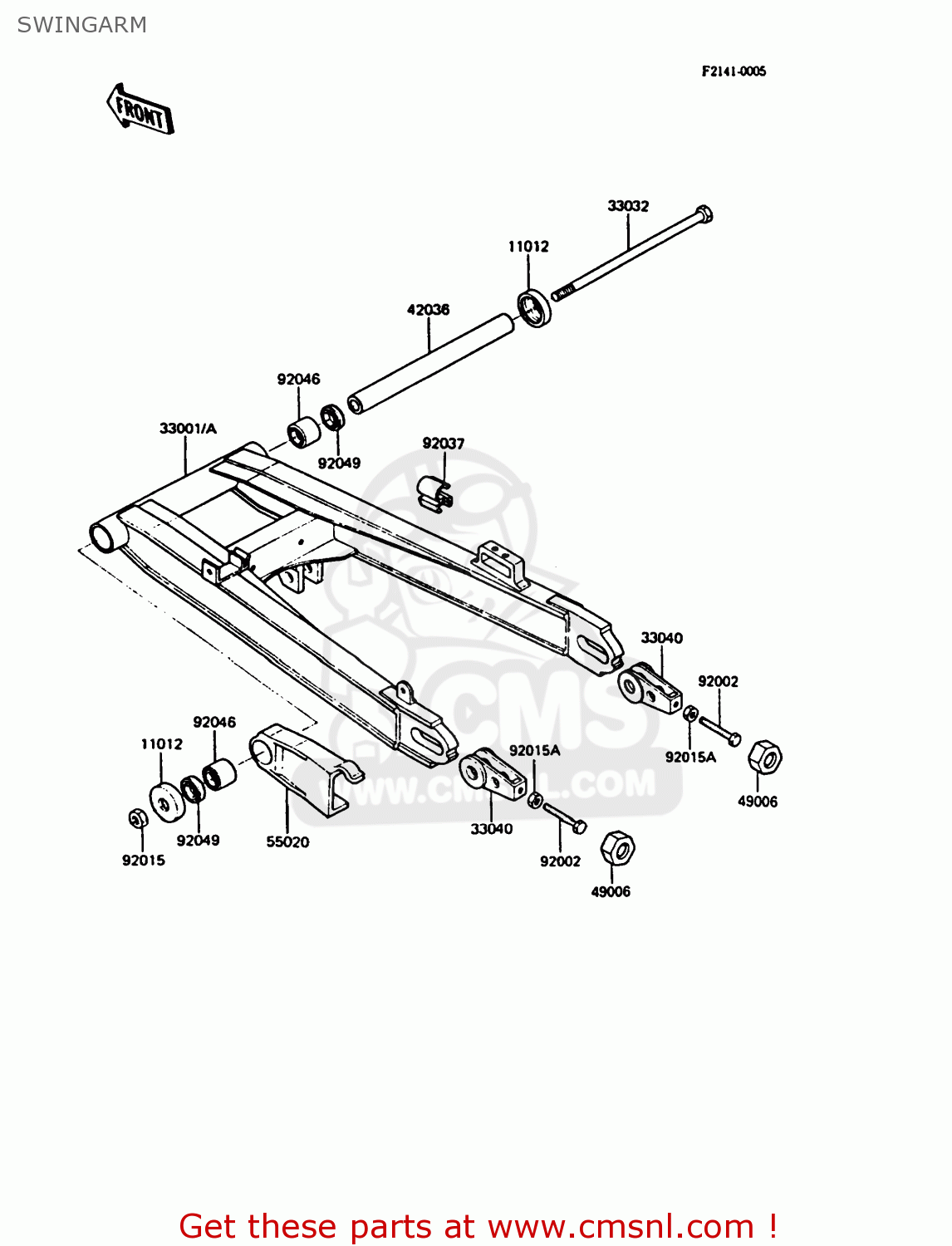

Swingarm diagram ZX550A5 GPZ550 1988 EUROPE FG GR
SWINGARM ZX550A5 GPZ550 1988 EUROPE FG GR
×
prices are in EUR
ref
part #
description
quantity
11012
110121029
ref: 11012
CAP,SWING ARM
€ 13.50
33001A
330011210P1
ref: 33001A
ARM-COMP-SWING,SILVER
€ 651.00
33032
330321029
ref: 33032
SHAFT-SWING ARM,BLACK
€ 39.00
33040
330401051
ref: 33040
ADJUSTER-CHAIN
€ 17.00
42036
420361018
ref: 42036
SLEEVE,SWING ARM
€ 36.50
49006
490061217
ref: 49006
FG
BOOT,CHAIN ADJUSTER B
€ 3.50
55020
550201160
ref: 55020
GUARD,CHAIN
€ 29.00
92002
920021060
ref: 92002
BOLT,8X50
€ 4.50
92015
920151327
ref: 92015
NUT,14MM
€ 5.50
92015A
920151364
ref: 92015A
NUT,8MM
€ 2.50
92037
920371392
ref: 92037
CLAMP,BRAKE HOSE
€ 3.50
92046
920461036
ref: 92046
BEARING
€ 20.50
92049
920491059
ref: 92049
OIL SEAL,MHA22284
€ 7.00
