FRAME

ZX550A5 GPZ550 1988 EUROPE FG GR

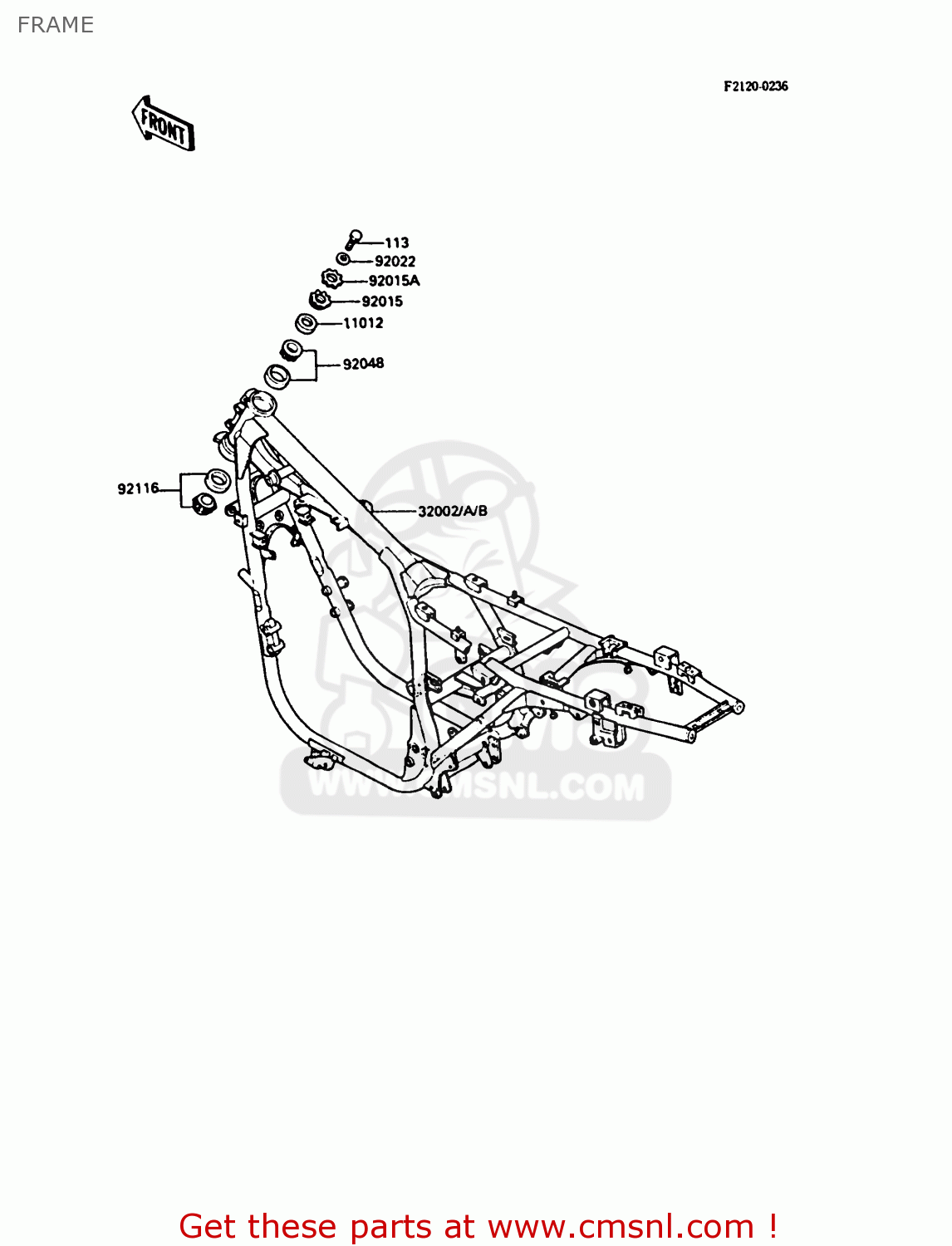

Frame diagram ZX550A5 GPZ550 1988 EUROPE FG GR

prices are in EUR

ref

part #

description

quantity

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50

11012

110121256
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021681
ref: 32002
EUGR

FRAME-COMP

€ 925.00

32002A

320021682
ref: 32002A
FG

FRAME-COMP

€ 1,083.50

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92022

920221229
ref: 92022

WASHER,14.5X36X4.5

€ 8.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00
