COWLING(ZX550-A3/A4/A5)
ZX550A5 GPZ550 1988 EUROPE FG GR

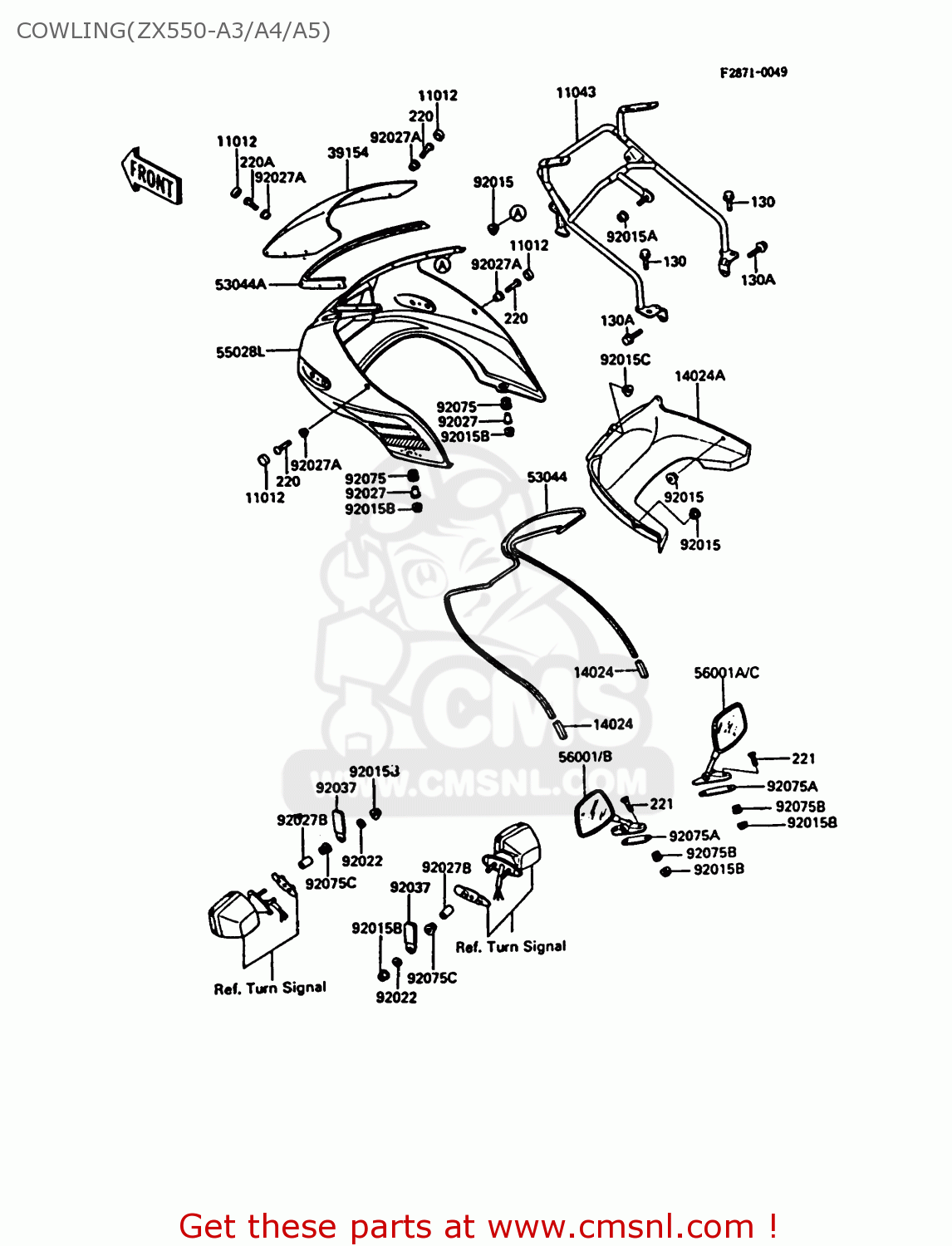

Cowling(zx550-a3/a4/a5) diagram ZX550A5 GPZ550 1988 EUROPE FG GR
COWLING(ZX550-A3/A4/A5) ZX550A5 GPZ550 1988 EUROPE FG GR
×
prices are in EUR
ref
part #
description
quantity
11012
110121309
ref: 11012
CAP,COWLING
€ 4.00
11043
110431084
ref: 11043
BRACKET-B,COWLING
€ 181.50
14024
140251756
ref: 14024
COVER,TRIM END
€ 4.50
14024A
140251758
ref: 14024A
COVER,COWLING
€ 43.00
39154
391541054
ref: 39154
WINDSHIELD
€ 266.50
53044
530441108
ref: 53044
TRIM,COWLING
€ 52.00
53044A
530441123
ref: 53044A
TRIM,WINDSHIELD
€ 28.50
55028L
550285208H8
ref: 55028L
COWLING,EBONY
€ 746.50
56001B
560011362
ref: 56001B
MIRROR-ASSY,LH
€ 64.00
56001C
560011363
ref: 56001C
MIRROR-ASSY,RH
€ 61.50
92015
920151025
ref: 92015
NUT,5MM
€ 3.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
€ 3.00
92015B
920151233
ref: 92015B
NUT,FLANGED,6MM
€ 3.50
92015C
920151306
ref: 92015C
NUT,FLANGED,5MM,BLACK
€ 2.50
92022
92022228
ref: 92022
WASHER-PLAIN,7MM
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
€ 4.00
92027A
920271596
ref: 92027A
COLLAR,COWLING,ID=5.5
€ 5.50
92027B
92027162
ref: 92027B
COLLAR-REAR FENDER
€ 4.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
130
130C0625
ref: 130
BOLT-FLANGED,FLANGED,
€ 2.00
130A
130C0812
ref: 130A
BOLT-FLANGED,8X12,BLA
€ 0.50
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
220A
220C0516
ref: 220A
SCREW-PAN-CROS
€ 0.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
€ 1.00
92075
920751057
ref: 92075
DAMPER
€ 3.00
92075A
920751500
ref: 92075A
DAMPER,MIRROR
€ 5.50
92075B
920751512
ref: 92075B
DAMPER,MIRROR
€ 2.50
92075C
92075263
ref: 92075C
DAMPER
€ 4.50
