SUSPENSION
ZX550A5 GPZ550 1988 EUROPE FG GR

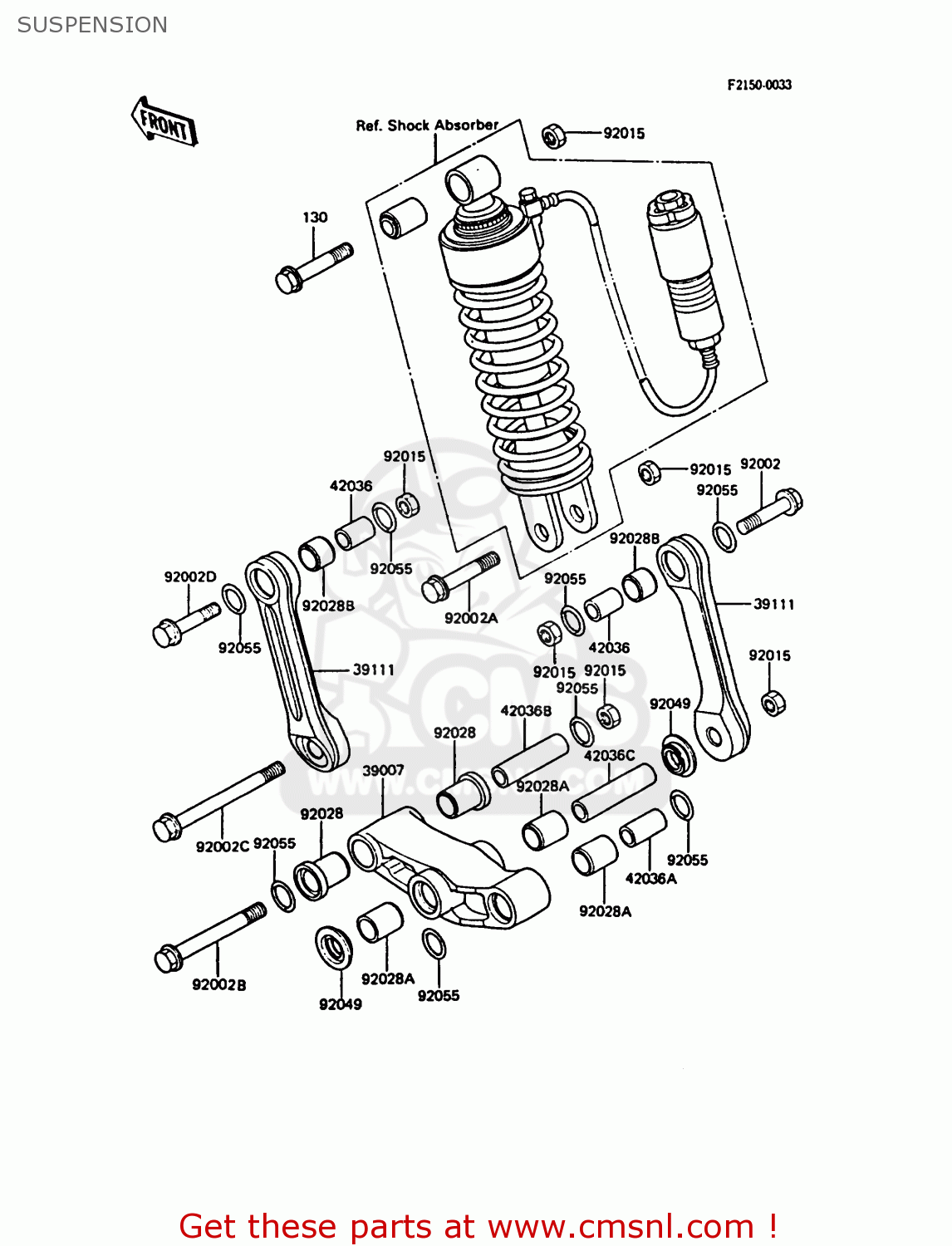

Suspension diagram ZX550A5 GPZ550 1988 EUROPE FG GR
SUSPENSION ZX550A5 GPZ550 1988 EUROPE FG GR
×
prices are in EUR
ref
part #
description
quantity
130
130G1250
ref: 130
BOLT-FLANGED
€ 4.00
39007
390071024
ref: 39007
ARM-SUSP,UNI TRAK
€ 123.00
39111
391111021
ref: 39111
ROD-TIE,UNI TRAK
€ 70.00
42036
420361076
ref: 42036
SLEEVE,12.1X20X22
€ 12.00
42036A
420361077
ref: 42036A
SLEEVE,ARM,RR
€ 11.50
42036B
420361078
ref: 42036B
SLEEVE,ARM,FR
€ 17.00
42036C
420361079
ref: 42036C
SLEEVE,12.1X20X70
€ 19.00
92002
920021061
ref: 92002
BOLT,12X45
€ 6.50
92002A
920021062
ref: 92002A
BOLT,12X55
€ 8.50
92002B
920021063
ref: 92002B
BOLT,12X90
€ 10.50
92002C
920021064
ref: 92002C
BOLT,12X110
€ 12.50
92002D
920021065
ref: 92002D
BOLT,12X45
€ 7.50
92015
920151375
ref: 92015
NUT,12MM
€ 4.50
92028
920281200
ref: 92028
BUSHING,FLANGED
€ 6.50
92028A
920281201
ref: 92028A
BUSHING,20X23X25L
€ 5.00
92028B
920281202
ref: 92028B
BUSHING,20X23X15L
€ 18.00
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92055
920551215
ref: 92055
RING-O,19.8X2.2
€ 2.50
