STAND(S)
ZX550A3 GPZ550 1986 EUROPE UK FR FG GR

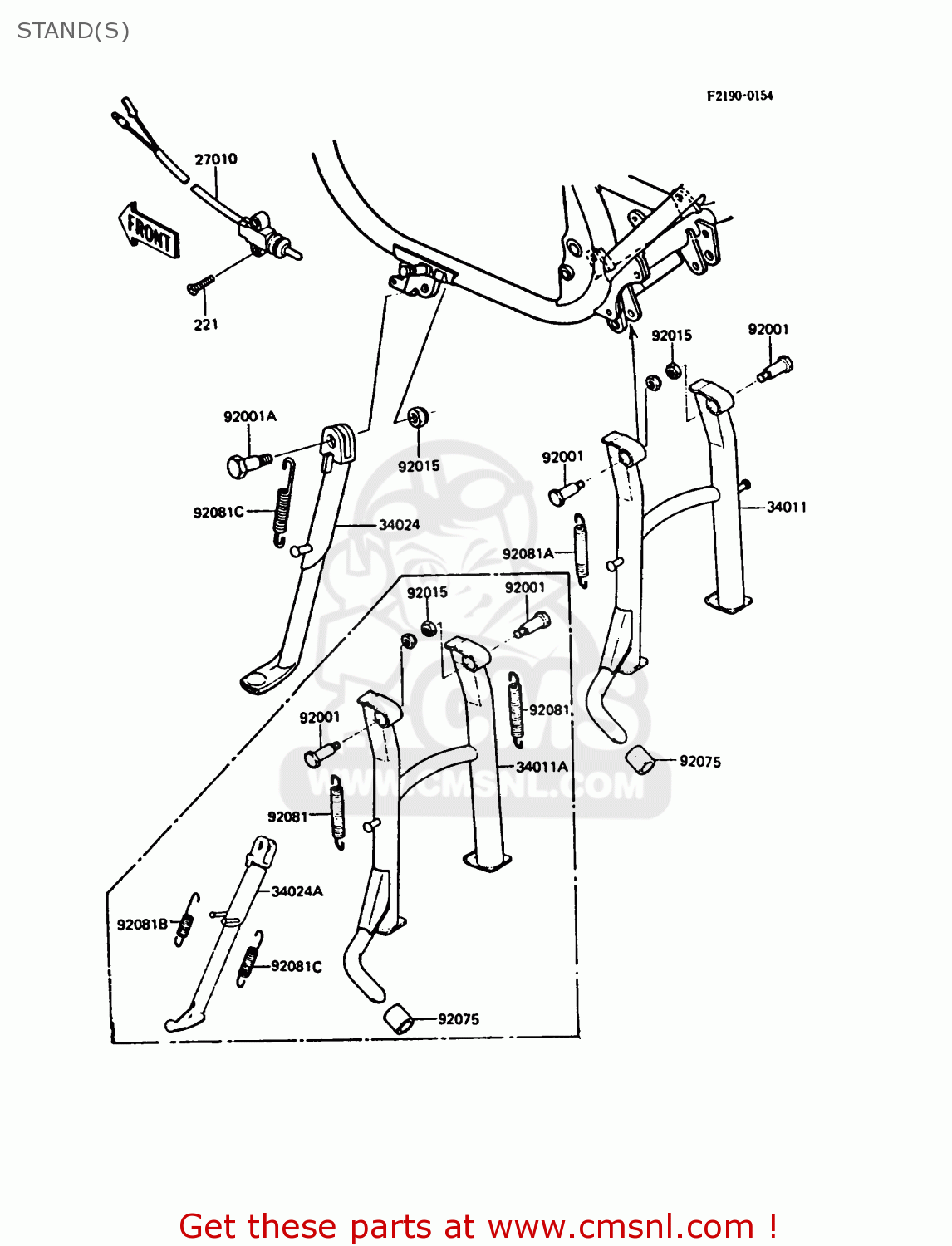

Stand(s) diagram ZX550A3 GPZ550 1986 EUROPE UK FR FG GR
STAND(S) ZX550A3 GPZ550 1986 EUROPE UK FR FG GR
×
prices are in EUR
ref
part #
description
quantity
221
221C0520
ref: 221
SCREW-CSK-CROS
€ 2.50
27010
270101065
ref: 27010
SWITCH,SIDE STAND
€ 53.00
34011
340111077
ref: 34011
EUFRGRUK
STAND-CENTER
€ 121.00
34011A
340111106
ref: 34011A
FG
STAND-CENTER
€ 115.00
34024
340241111
ref: 34024
EUFRGRUK
STAND-SIDE
€ 56.00
34024A
340241159
ref: 34024A
FG
STAND-SIDE
€ 58.50
92001
920011214
ref: 92001
BOLT,MAIN STAND FITTI
€ 7.00
92001A
920011788
ref: 92001A
BOLT,SIDE STAND
€ 6.50
92015
920151188
ref: 92015
NUT,LOCK,10MM,BLACK
€ 4.00
92075
920751142
ref: 92075
DAMPER,STAND,CNT
€ 4.00
92081
920811009
ref: 92081
FG
SPRING,SID STND SWTCH
€ 9.00
92081A
920811265
ref: 92081A
EUFRGRUK
SPRING,MAIN STAND
€ 10.00
92081B
920811639
ref: 92081B
FG
SPRING,SIDE STAND
€ 6.00
92081C
920811727
ref: 92081C
SPRING,SIDE STAND
€ 7.00
