HEADLIGHT(S)
ZX550A3 GPZ550 1986 EUROPE UK FR FG GR

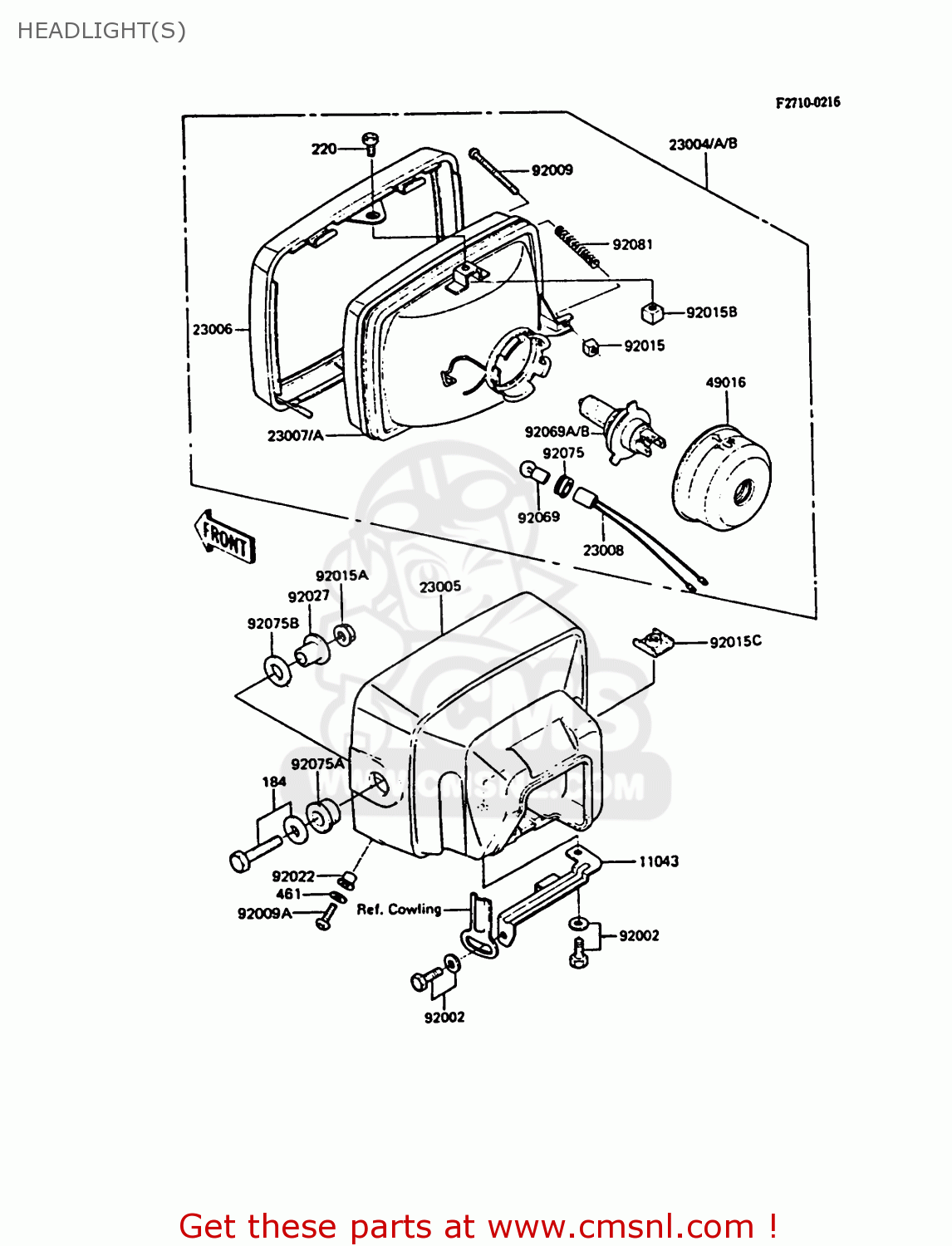

Headlight(s) diagram ZX550A3 GPZ550 1986 EUROPE UK FR FG GR
HEADLIGHT(S) ZX550A3 GPZ550 1986 EUROPE UK FR FG GR
×
prices are in EUR
ref
part #
description
quantity
184
184C0835
ref: 184
BOLT-UPSET-WP-SMALL
€ 2.50
11043
110431640
ref: 11043
BRACKET,HEAD LAMP
€ 8.50
23004
230041111
ref: 23004
EUFGGR
LAMP-HEAD
€ 567.50
23004A
230041112
ref: 23004A
UK
LAMP-HEAD
€ 558.50
23004B
230041161
ref: 23004B
FR
LAMP-HEAD
€ 270.50
23005
2300510516Z
ref: 23005
BODY-COMP-HEAD LAMP
€ 88.50
23006
230061022
ref: 23006
RIM-LAMP,HEAD
€ 60.00
23007
230071051
ref: 23007
EUFGFRGR
LENS-COMP,001-2722 MA
€ 153.00
23007A
230071052
ref: 23007A
UK
LENS-COMP,001-2723 MA
€ 199.50
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92002
920021260
ref: 92002
BOLT,6X14
€ 0.50
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92009A
92011024
ref: 92009A
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151157
ref: 92015B
NUT,5MM
€ 3.50
92015C
920151231
ref: 92015C
NUT,6MM,HEAD LAMP
€ 6.50
92022
23021010
ref: 92022
WASHER
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
EUFGGRUK
BULB,12V-60155W
€ 15.00
92069B
920691004
ref: 92069B
FR
BULB,12V 60/55W,H4,YE
€ 15.00
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92075A
920751109
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 4.00
92075B
920751110
ref: 92075B
DAMPER,HEAD LAMP FITT
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
