METER(S)
ZX550A3 GPZ550 1986 EUROPE UK FR FG GR

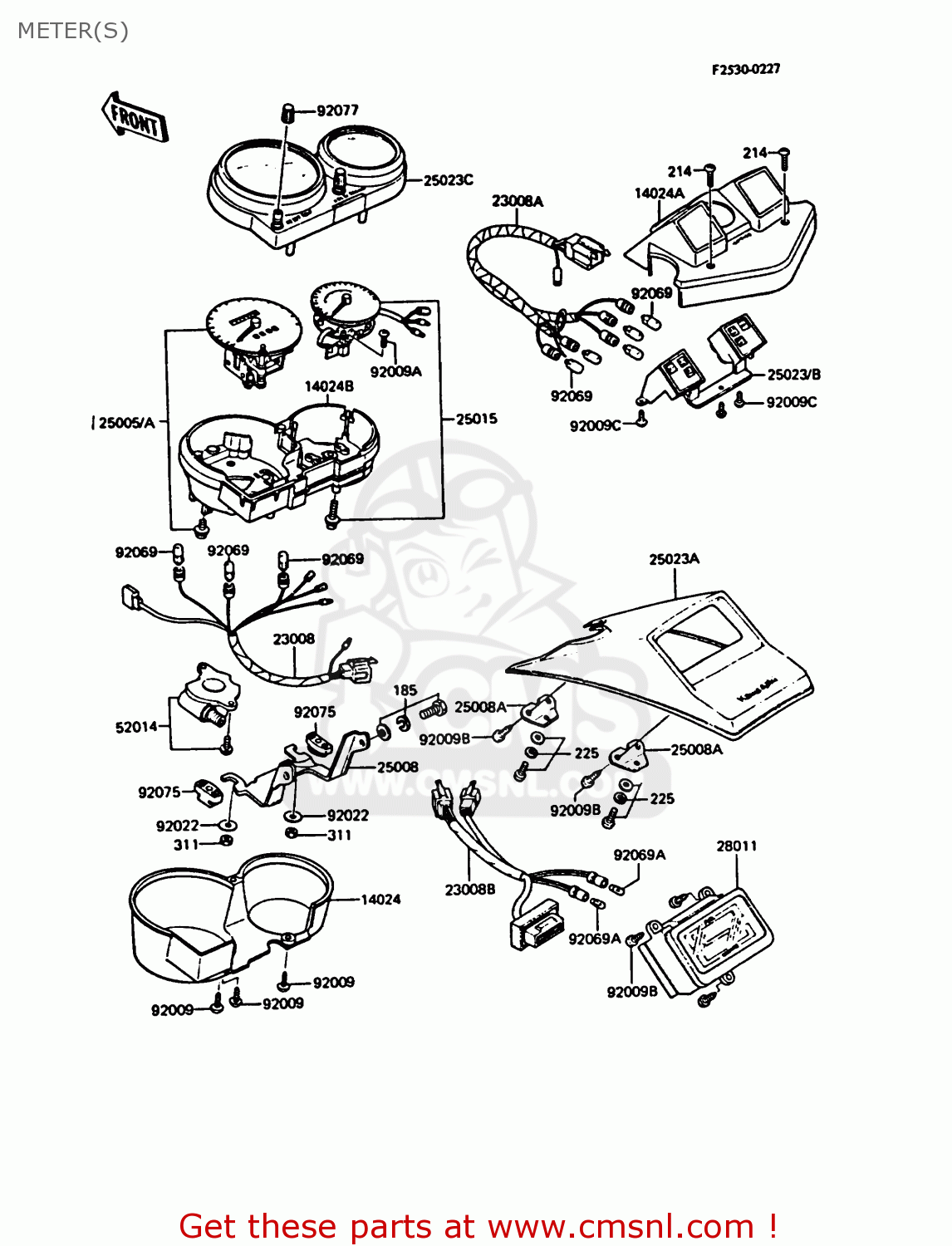

Meter(s) diagram ZX550A3 GPZ550 1986 EUROPE UK FR FG GR
METER(S) ZX550A3 GPZ550 1986 EUROPE UK FR FG GR
×
prices are in EUR
ref
part #
description
quantity
185
185C0816
ref: 185
BOLT-UPSET-WSP-SMALL
€ 3.00
214
214C0430
ref: 214
SCREW-PAN+-
€ 0.50
225
225B0514
ref: 225
SCREW-PAN-WSP-CROS
€ 2.00
311
311B0500
ref: 311
NUT-HEX
€ 0.50
14024
140251691
ref: 14024
COVER,METER CASE,LWR
€ 31.50
14024A
140251693
ref: 14024A
COVER,PILOT BOX
€ 64.50
14024B
140251694
ref: 14024B
COVER,METER HOUSING
€ 79.50
23008
230081188
ref: 23008
SOCKET-ASSY,METER
€ 44.00
23008A
230081192
ref: 23008A
SOCKET-ASSY,LAMP ASSY
€ 55.50
23008B
230081202
ref: 23008B
SOCKET-ASSY,FUEL&WARN
€ 39.00
25005
250051219
ref: 25005
EUFGFRGR
SPEEDOMETER,KPH ZX750-A1
€ 202.50
25005A
250051220
ref: 25005A
UK
SPEEDOMETER,MPH
€ 203.50
25008
250081060
ref: 25008
BRACKET-METER
€ 46.50
25008A
250081103
ref: 25008A
BRACKET-METER,FUEL TA
€ 9.50
25015
250151213
ref: 25015
TACHOMETER,X1000R/MIN
€ 229.00
25023
250231058
ref: 25023
COVER-METER CASE,LAMP
€ 61.50
25023A
250231102
ref: 25023A
COVER-METER CASE,FUEL
€ 78.50
25023C
250231114
ref: 25023C
COVER-METER CASE,UPP
€ 81.50
28011
280111042
ref: 28011
METER,FUEL&WARNING
€ 792.00
52014
520141006
ref: 52014
ELBOW,SPEEDOMETER GEA
€ 35.00
92009
920091158
ref: 92009
SCREW,4X16,BLACK
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
€ 2.00
92009B
920091254
ref: 92009B
SCREW,TAPPING,4X12
€ 2.50
92009C
920091255
ref: 92009C
SCREW,TAPPING,3X12
€ 2.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691020
ref: 92069
BULB,12C3W T-7
€ 3.00
92069A
920691051
ref: 92069A
BULB,12V1.4W T-5
€ 2.50
92075
920751495
ref: 92075
DAMPER,METER BRACKET
€ 8.00
92077
920771017
ref: 92077
KNOB,RESET TRIP
€ 16.00
