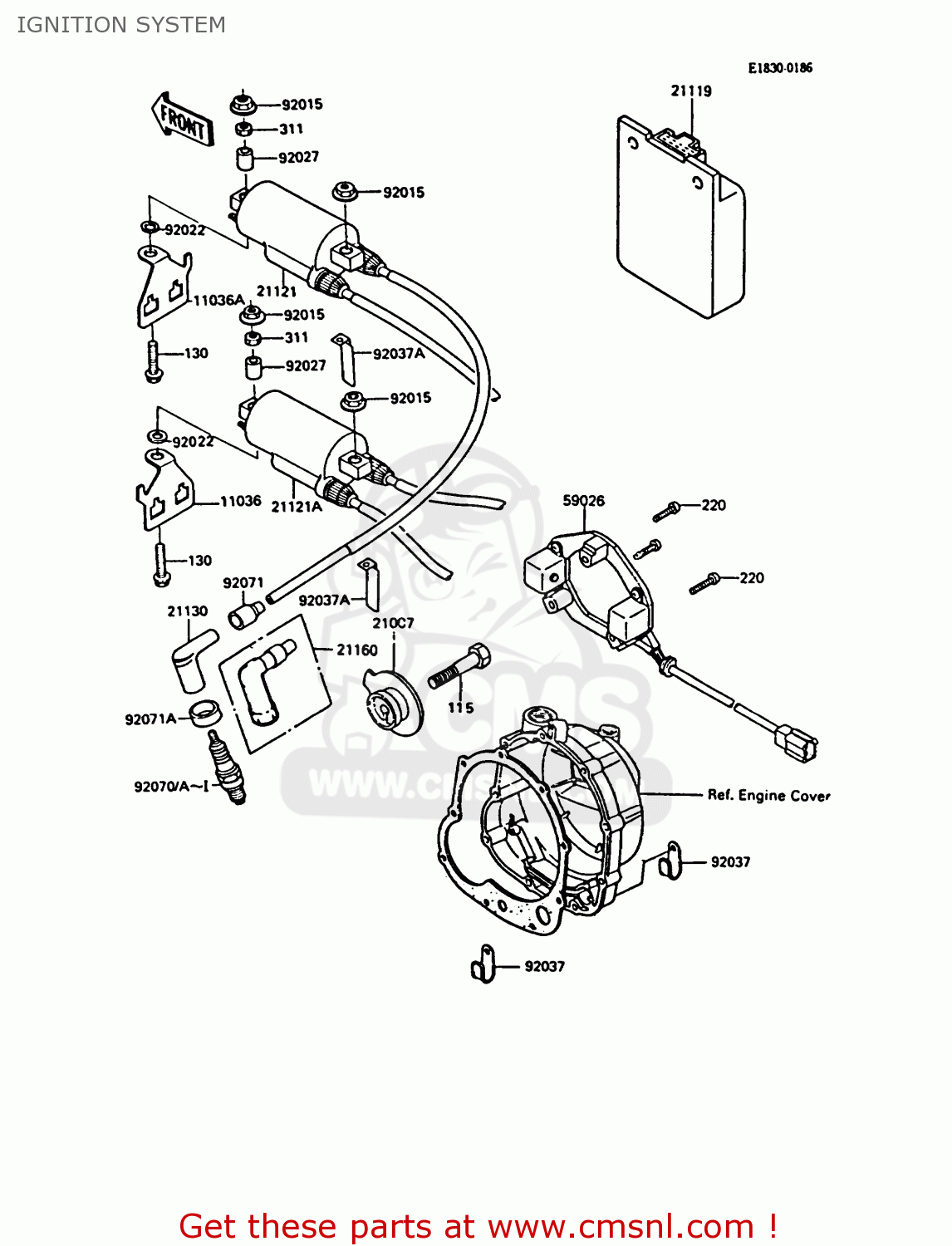

IGNITION SYSTEM

ref

part #

description

quantity

11036

110361471
ref: 11036

BRACKET-A,HARNESS,LH

€ 6.00

11036A

110361472
ref: 11036A

BRACKET-A,HARNESS,RH

€ 6.00

21007

210071104
ref: 21007

ROTOR,PULSING COIL

€ 16.00

21119

211191113
ref: 21119

IGNITER

€ 610.00

21121

211211108
ref: 21121

COIL-IGNITION,#1&#4

€ 114.00

21121A

211211109
ref: 21121A

COIL-IGNITION,#2&#3

€ 114.00

21130

211301003
ref: 21130

CAP,SPARK PLUG"LD05F"

€ 20.00

59026

590261026
ref: 59026

COIL-PULSING

€ 165.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221588
ref: 92022

WASHER,6.3X10.2X1.6

€ 2.50

92027

920271453
ref: 92027

COLLAR,6.3X10X14

€ 3.00

92037

21126008
ref: 92037

CLAMP,WIRING HARNESS

€ 3.00

92037A

920371316
ref: 92037A

CLAMP

€ 1.50

92070

920701065
ref: 92070

DPR8EA-9 (NGK SPARKPL

€ 4.00

92070D

920701068
ref: 92070D

DPR9EA-9 (NGK SPARKPL

€ 4.00

92070E

ref: 92070E

92070H

ref: 92070H

115

115G0845
ref: 115

BOLT-SMALL-UPSET

€ 3.50

130

130B0640
ref: 130

BOLT,FLANGED,6X40

€ 0.50

220

220B0525
ref: 220

SCREW-PAN-CROS,5X25

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

92071

21132005
ref: 92071

GROMMET,SPARK PLUG CP

€ 2.50

92071A

920711015
ref: 92071A

GROMMET,SPARK PLUG CA

€ 2.50
