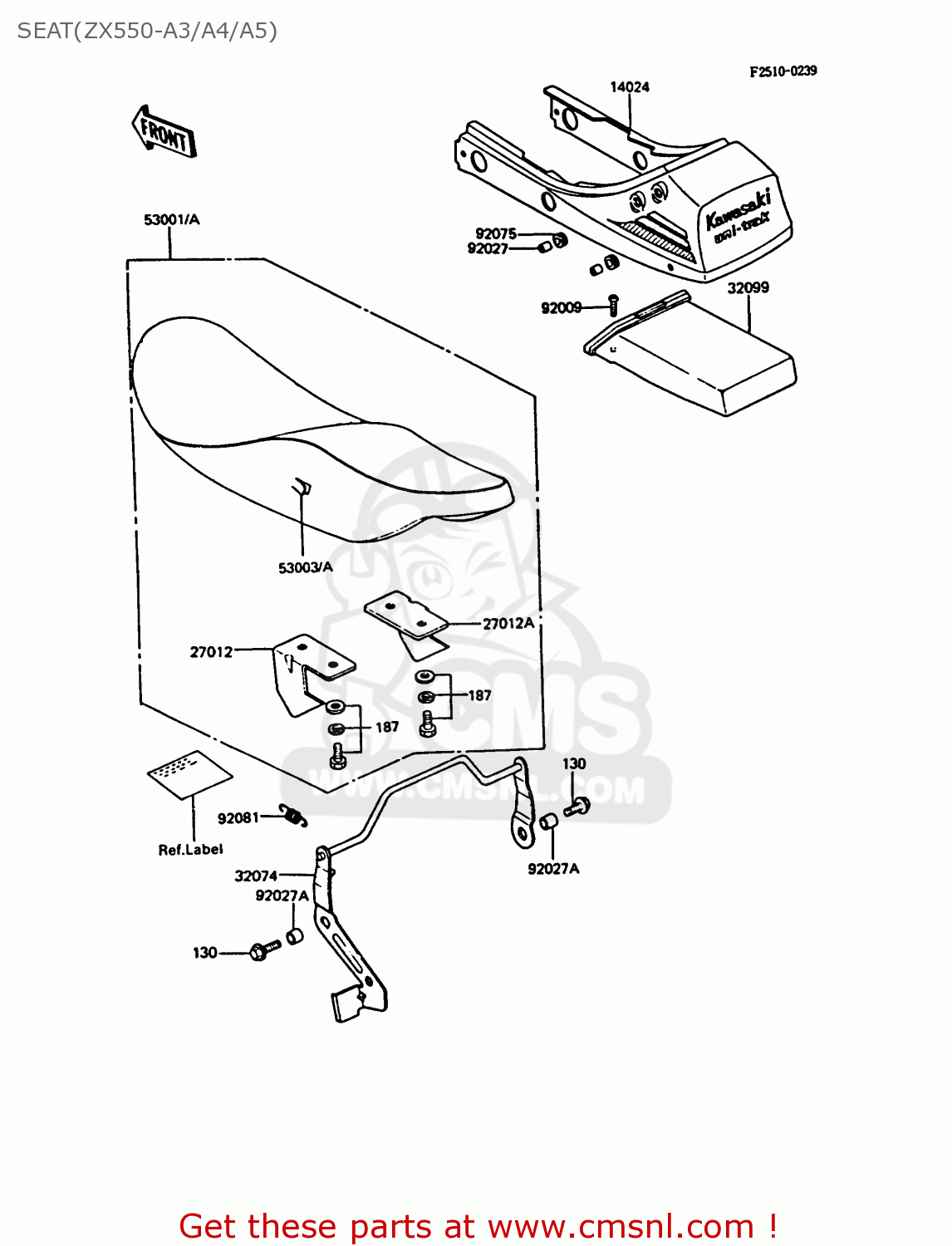

SEAT(ZX550-A3/A4/A5)

ref

part #

description

quantity

130

130C0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

187

187B0614
ref: 187
FGFRGRUK

BOLT-UPSET-WSP

€ 0.50

187

187B0614
ref: 187
EU

BOLT-UPSET-WSP

€ 0.50

14024

140255250H8
ref: 14024

COVER,SEAT,EBONY

€ 143.00

27012

270121045
ref: 27012

HOOK,SEAT,LH

€ 6.00

27012A

270121046
ref: 27012A

HOOK,SEAT,RH

€ 6.00

32074

320741051
ref: 32074

BRACKET-LOCK,SEAT

€ 27.00

32099

320991039
ref: 32099

CASE,TOOL

€ 26.50

53001

530011289
ref: 53001
EU

SEAT-ASSY,DUAL

€ 359.00

53001A

530011364
ref: 53001A
FGFRGRUK

SEAT-ASSY,DUAL

€ 395.00

53003

530031042
ref: 53003
EU

LEATHER,SEAT

€ 124.50

53003A

530031106
ref: 53003A
FGFRGRUK

LEATHER,SEAT

€ 122.50

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92027

92027129
ref: 92027

COLLAR,6.8X10X8.5

€ 3.00

92027A

920271565
ref: 92027A

COLLAR,8.2X13X6

€ 1.50

92075

920751028
ref: 92075

DAMPER RUBBER

€ 3.00

92081

920811466
ref: 92081

SPRING,HOOK RETURN

€ 5.50

all assemblies
