TAILLIGHT(S)

ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

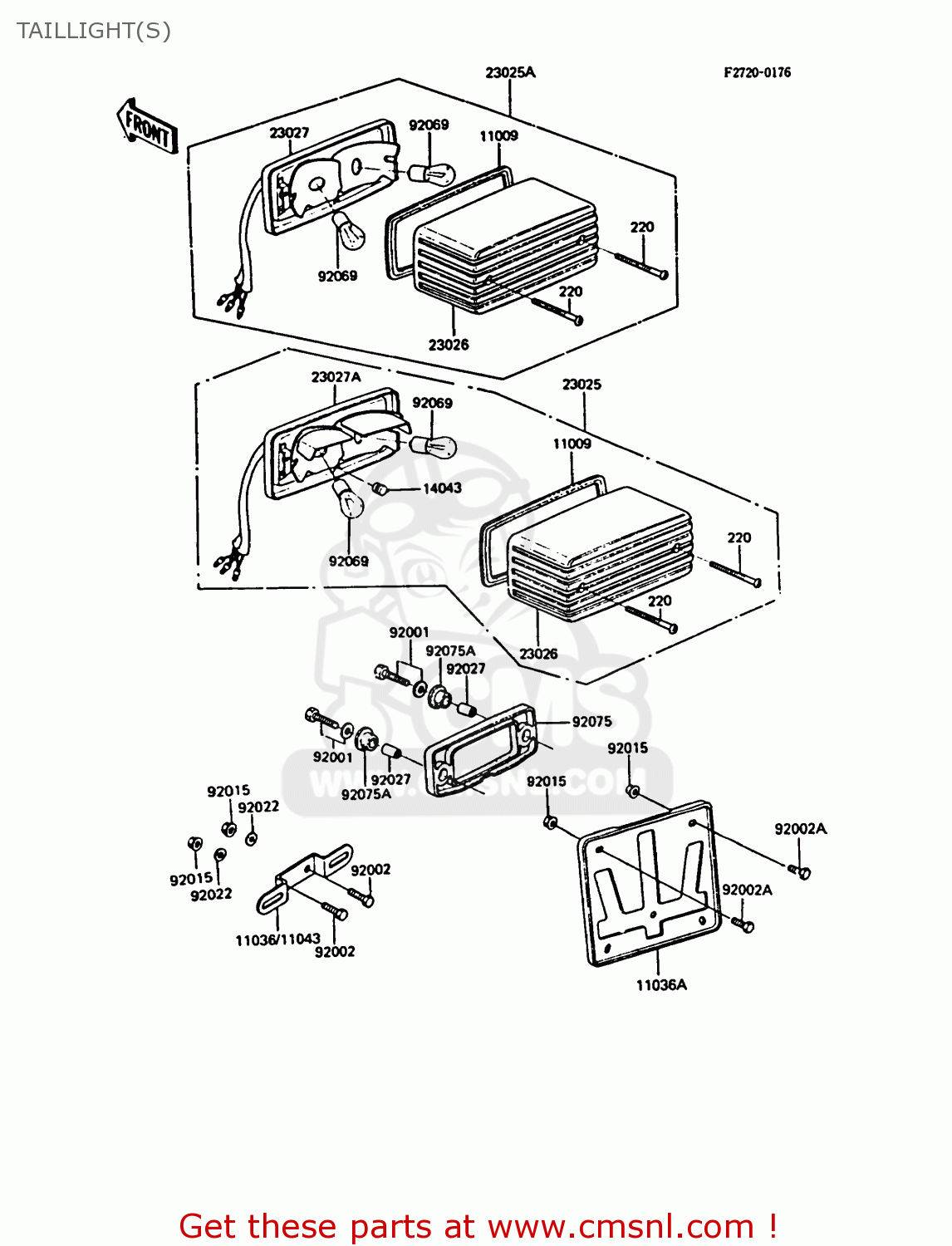

Taillight(s) diagram ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

TAILLIGHT(S) ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST
TAILLIGHT(S) ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST
TAILLIGHT(S) ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST
prices are in EUR
ref
part #
description
quantity
220
220C0465
ref: 220
SCREW-PAN-CROS
220C0465
€ 2.50
11009
110091221
ref: 11009
GASKET,TAIL LAMP (NAS)
110091221
€ 8.50
11036
110361040
ref: 11036
EUFRGRITSDSTUK
BRACKET-A,LICENSE PLT
110361040
€ 13.00
11036A
110361820
ref: 11036A
IT
BRACKET-A,LICENSE PLA
110361820
€ 13.50
11043
110431572
ref: 11043
FG
BRACKET,LICENSE PLATE
€ 6.50
14043
140431004
ref: 14043
FG
FILTER
€ 2.50
23025
230251040
ref: 23025
FG
LAMP-TAIL
€ 175.00
23025A
230251134
ref: 23025A
EUFRGRITSDSTUK
LAMP-TAIL
230251134
€ 125.50
23026
230261075
ref: 23026
LENS,TAIL LAMP
230261075
€ 126.00
23027
230271026
ref: 23027
EUFRGRITSDSTUK
BODY-COMP-TAIL LAMP,B
230271026
€ 121.50
23027A
230271027
ref: 23027A
FG
BODY-COMP-TAIL LAMP
230271027
€ 175.00
92001
920011776
ref: 92001
BOLT,6X30
920011776
€ 3.00
92002
920021124
ref: 92002
BOLT,6X16
920021124
€ 2.50
92002A
920021132
ref: 92002A
IT
BOLT,6X12
€ 2.50
92015
920151193
ref: 92015
EUFGFRGRSDSTUK
NUT,FLANGED,6MM
920151193
€ 0.50
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
920151193
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
920271400
ref: 92027
COLLAR,6.8X10X21
920271400
€ 3.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92075
920751282
ref: 92075
DAMPER,TAIL LAMP
920751282
€ 13.00
92075A
920751367
ref: 92075A
DAMPER,TAIL LAMP
920751367
€ 3.00
