FOOTRESTS

ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

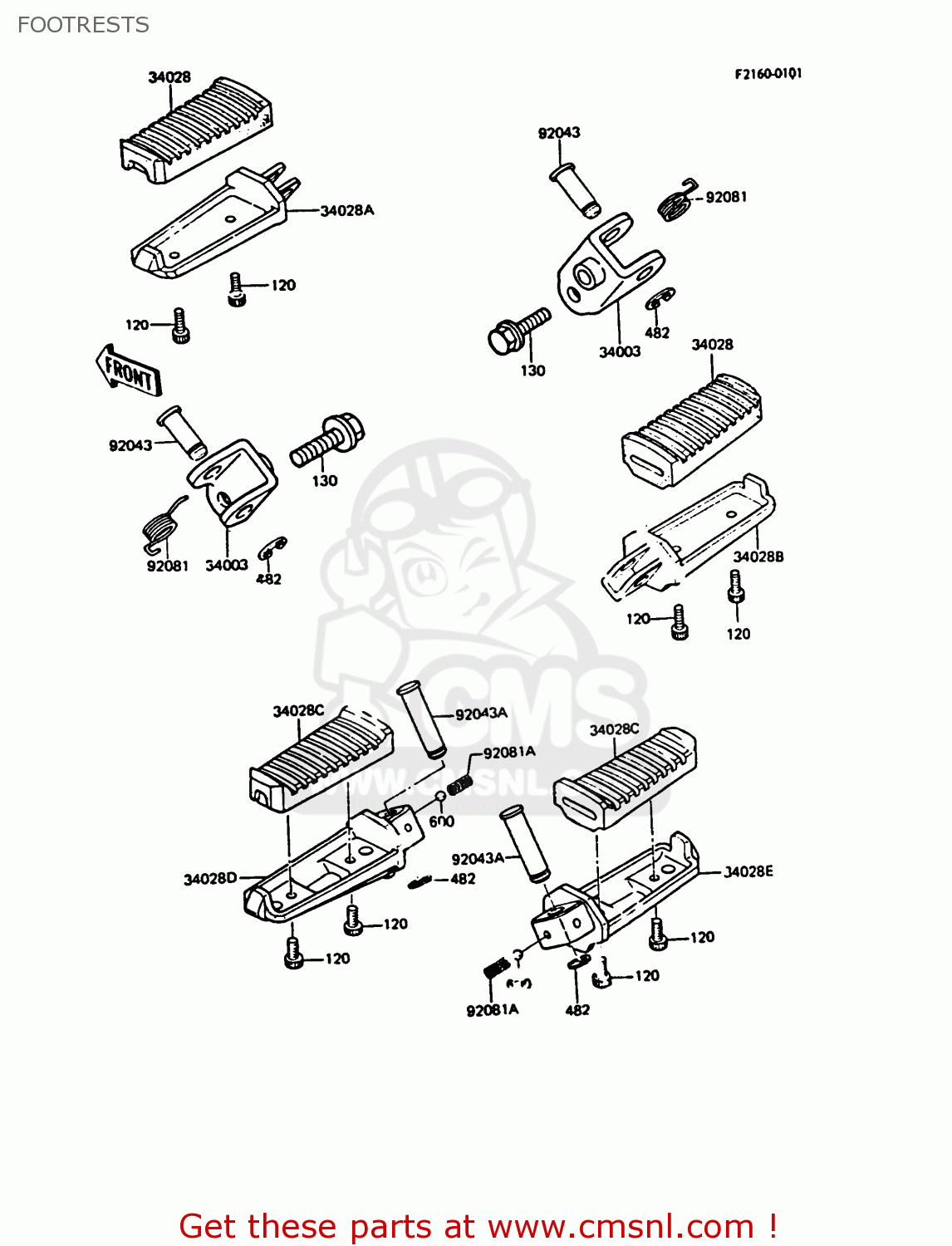

Footrests diagram ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

prices are in EUR

ref

part #

description

quantity

120

120Z0514
ref: 120

BOLT-SOCKET

€ 2.00

130

130B0818
ref: 130

BOLT-FLANGED,8X18

€ 0.50

482

482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

34003

340031155
ref: 34003

HOLDER-STEP,FR

€ 10.50

34028

340281057
ref: 34028

STEP,FR,RUBBER

€ 18.50

34028A

340281058
ref: 34028A

STEP,FR,LH

€ 62.00

34028B

340281059
ref: 34028B

STEP,FR,RH

€ 62.00

34028C

340281060
ref: 34028C

STEP,RR,RUBBER

€ 17.00

34028D

340281061
ref: 34028D

STEP,RR,LH

€ 65.00

34028E

340281062
ref: 34028E

STEP,RR,RH

€ 68.50

92043

920431144
ref: 92043

PIN,12X37

€ 6.50

92043A

920431145
ref: 92043A

PIN,12X42.5

€ 6.00

92081

920811587
ref: 92081

SPRING,STEP,FR

€ 4.00

92081A

920811588
ref: 92081A

SPRING,COIL,STEP,RR

€ 2.00

FOOTRESTS
