CYLINDER HEAD

ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

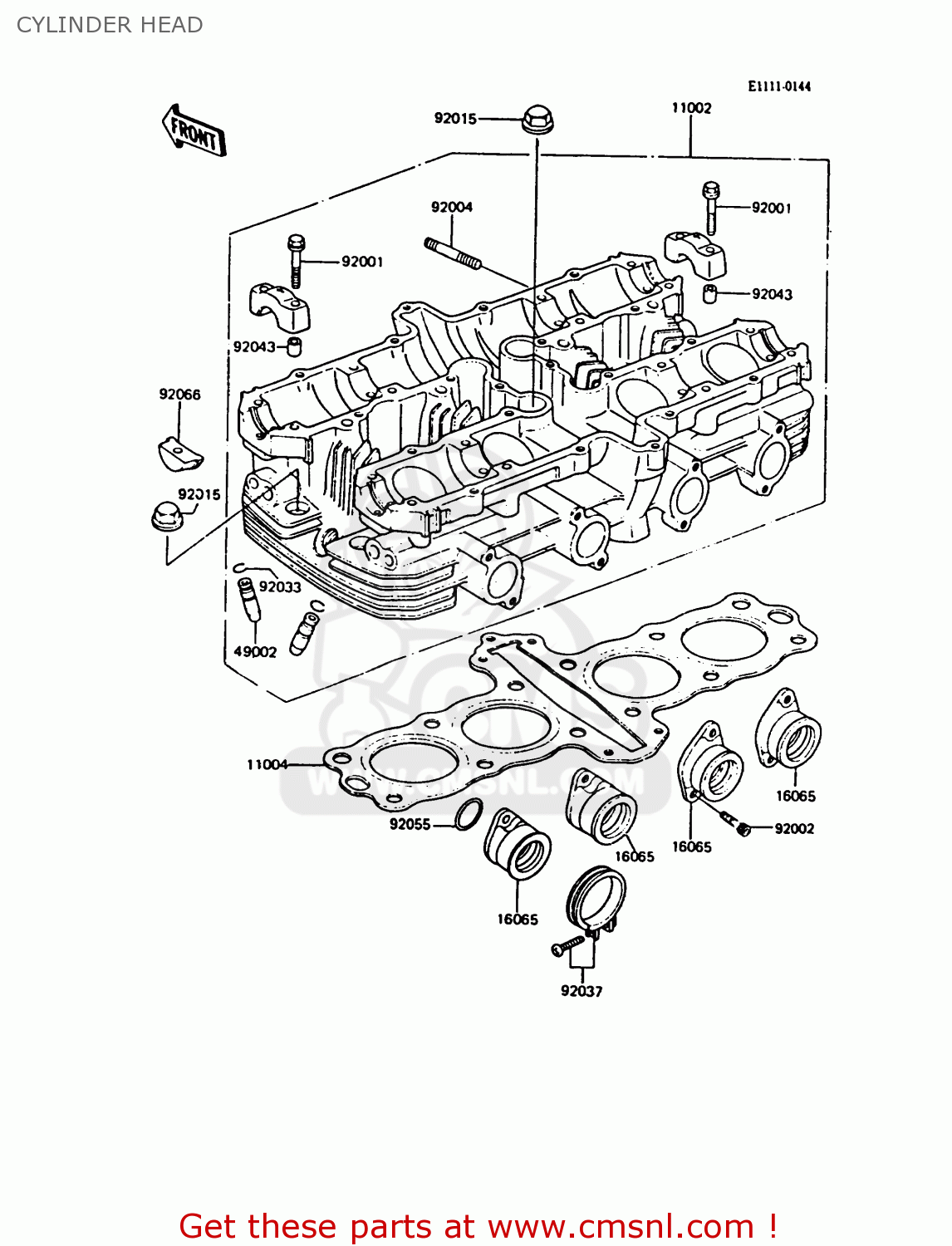

Cylinder head diagram ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

prices are in EUR

ref

part #

description

quantity

11002

110021165
ref: 11002

HEAD-ASSY-CYLINDER

€ 1,369.50

11004

110041021
ref: 11004

GASKET,CYL HEAD (MCA)

€ 72.00

16065

160651110
ref: 16065

HOLDER-CARBURETOR

€ 31.00

49002

490021005
ref: 49002

GUIDE-VALVE

€ 30.00

92001

920011105
ref: 92001

BOLT,HEX HEAD,6X38

€ 3.00

92002

920021143
ref: 92002

BOLT,6X16

€ 2.50

92004

92004066
ref: 92004

STUD, 6X27

€ 3.50

92015

920151174
ref: 92015

NUT,CAP,8MM,BLACK

€ 3.00

92033

92036023
ref: 92033

CIRCLIP,VALVE GUIDE

€ 0.50

92037

920371326
ref: 92037

CLAMP

€ 5.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92055

920551233
ref: 92055

RING-O,CARBURETOR HOL

€ 7.50

92066

920661111
ref: 92066

PLUG,CAMSHAFT,11.35X1

€ 8.00
