OIL COOLER

ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

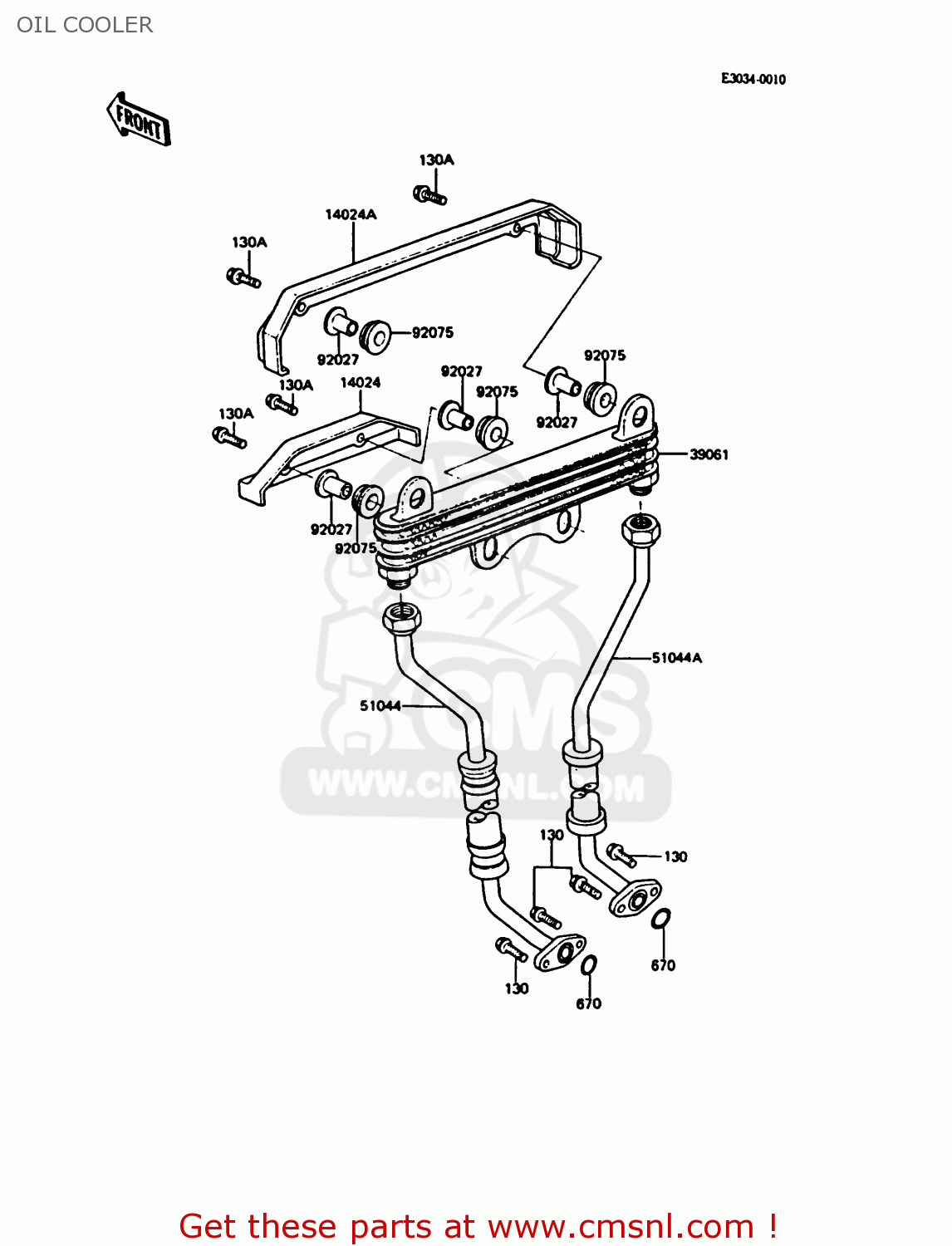

Oil cooler diagram ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

prices are in EUR

ref

part #

description

quantity

130

130J0616
ref: 130

BOLT-FLANGED,6X16

€ 1.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

670

670B2012
ref: 670

O RING,12MM

€ 1.00

14024

140251371
ref: 14024

COVER,OIL COOLER,LOWE

€ 14.50

14024A

140251410
ref: 14024A

COVER,OIL COOLER,UPPE

€ 18.00

39061

39061105510
ref: 39061

EXCHANGER-ASSY-HEAT

€ 356.50

51044

510441011
ref: 51044

TUBE-ASSY,OIL COOLER

€ 199.00

51044A

510441012
ref: 51044A

TUBE-ASSY,OIL COOLER

€ 236.50

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92075

92075208
ref: 92075

DAMPER

€ 3.00

OIL COOLER

all assemblies
