BRAKE PEDAL

ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

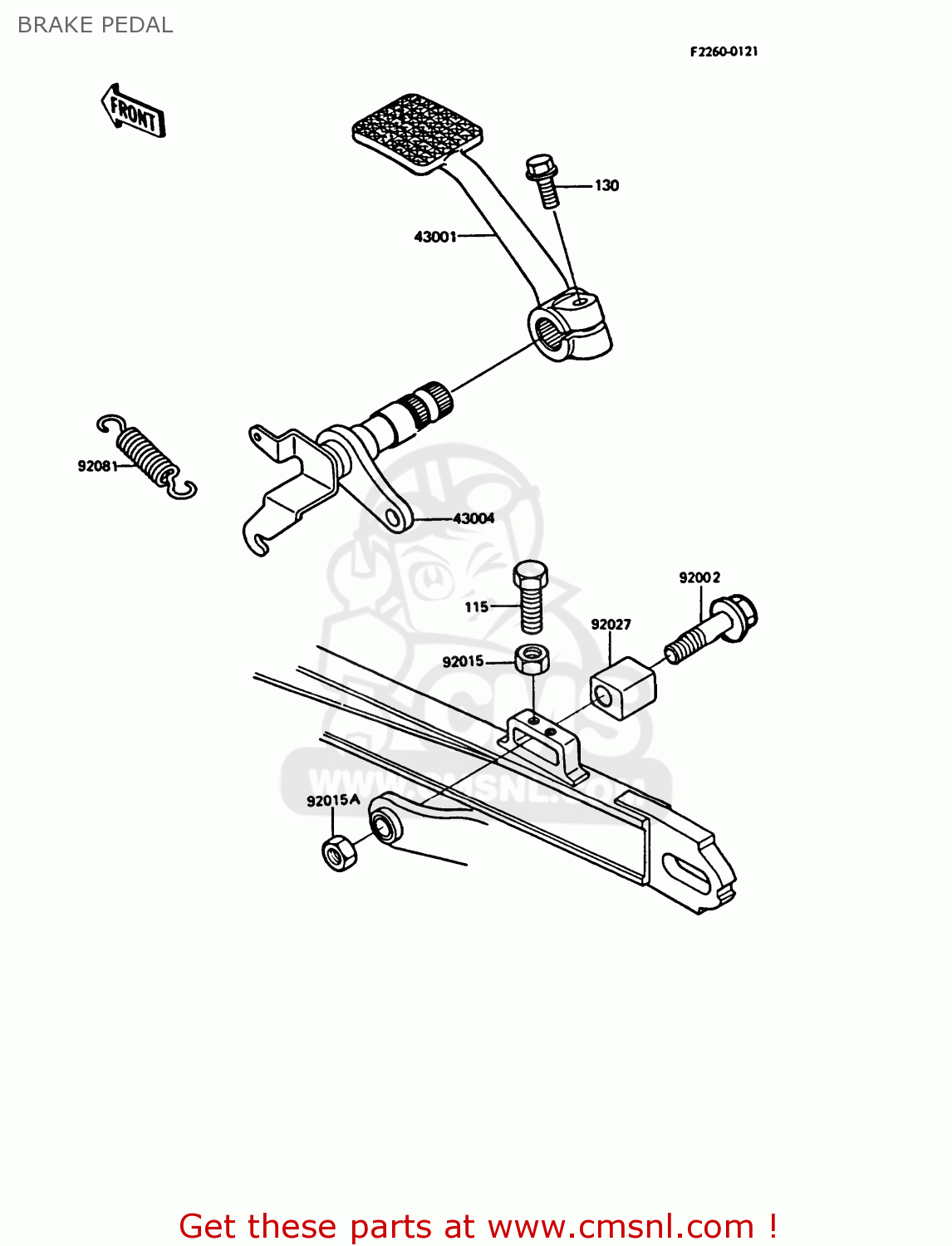

Brake pedal diagram ZX550A1 GPZ550 1984 EUROPE UK FR GR IT FG SD ST

prices are in EUR

ref

part #

description

quantity

115

115X0816
ref: 115

BOLT-SMALL-UPSET,8X16

€ 2.00

130

130Y0825
ref: 130

BOLT-FLANGED

€ 2.50

43001

430011113
ref: 43001

LEVER-BRAKE,PEDAL

€ 52.50

43004

430041050
ref: 43004

SHAFT-BRAKE

€ 31.50

92002

920021066
ref: 92002

BOLT,FLANGED,10X41

€ 3.50

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151376
ref: 92015A

NUT,LOCK,10MM

€ 4.50

92027

920271572
ref: 92027

COLLAR,REAR CALIPER,L

€ 10.00

92081

920811604
ref: 92081

SPRING,BRAKE PEDAL

€ 6.50
