TOOL
ZX500C1 ZZR500 1990 AUSTRIA NR

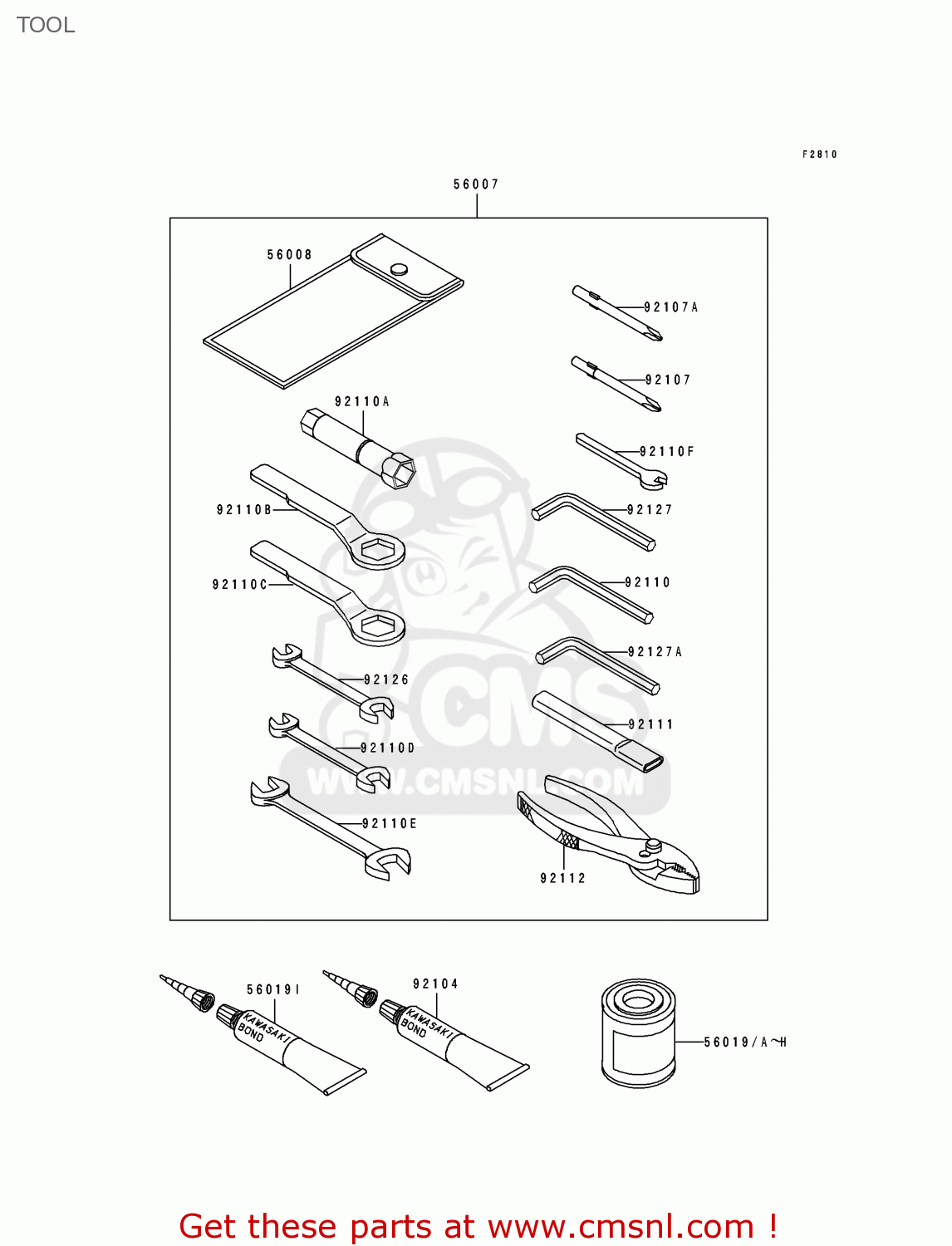

Tool diagram ZX500C1 ZZR500 1990 AUSTRIA NR
TOOL ZX500C1 ZZR500 1990 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
56007
560071351
ref: 56007
TOOL-KIT
€ 97.00
56008
560081019
ref: 56008
BAG,TOOLKIT
€ 12.00
56019B
56019108FC
ref: 56019B
PAINT
€ 28.00
56019C
56019108GW
ref: 56019C
PAINT,1/12L,M.S.BLUE
€ 18.00
56019D
56019108HC
ref: 56019D
PAINT
€ 23.50
56019G
56019108L1
ref: 56019G
PAINT,1/12L,C.C.RED
€ 18.00
56019I
56019120
ref: 56019I
BOND,#10
€ 41.00
92104
921041003
ref: 92104
GASKET-LIQUID,BLACK (NAS)
€ 33.00
92107
92107005
ref: 92107
SCREW DRIVER-#3 PHLIP
€ 7.00
92107A
921071053
ref: 92107A
TOOL DRIVER#2PHILLIPS
€ 6.50
92110
921101015
ref: 92110
WRENCH,ALLEN
€ 7.50
92110A
921101146
ref: 92110A
TOOL-WRENCH,BOX,16MM
€ 11.00
92110B
921101150
ref: 92110B
TOOL-WRENCH,BOX END,2
€ 14.50
92110C
921101151
ref: 92110C
TOOL-WRENCH,BOX END,1
€ 14.50
92110D
921101152
ref: 92110D
TOOL-WRENCH,OPEN END,
€ 13.50
92110E
921101153
ref: 92110E
TOOL-WRENCH,OPEN END,
€ 12.50
92110F
921101157
ref: 92110F
TOOL-WRENCH,OPEN END,
€ 13.00
92111
921111051
ref: 92111
TOOL-BAR
€ 8.00
92112
92112003
ref: 92112
PLIERS,150MM
€ 18.00
92126
92126001
ref: 92126
TOOL-WRENCH,OPEN END,
€ 9.00
92127
92127002
ref: 92127
TOOL-WRENCH,ALLEN,8MM
€ 8.00
92127A
92127003
ref: 92127A
TOOL-WRENCH,ALLEN,6MM
€ 7.50
