CAMSHAFT/TENSIONER
ZX500C1 ZZR500 1990 AUSTRIA NR

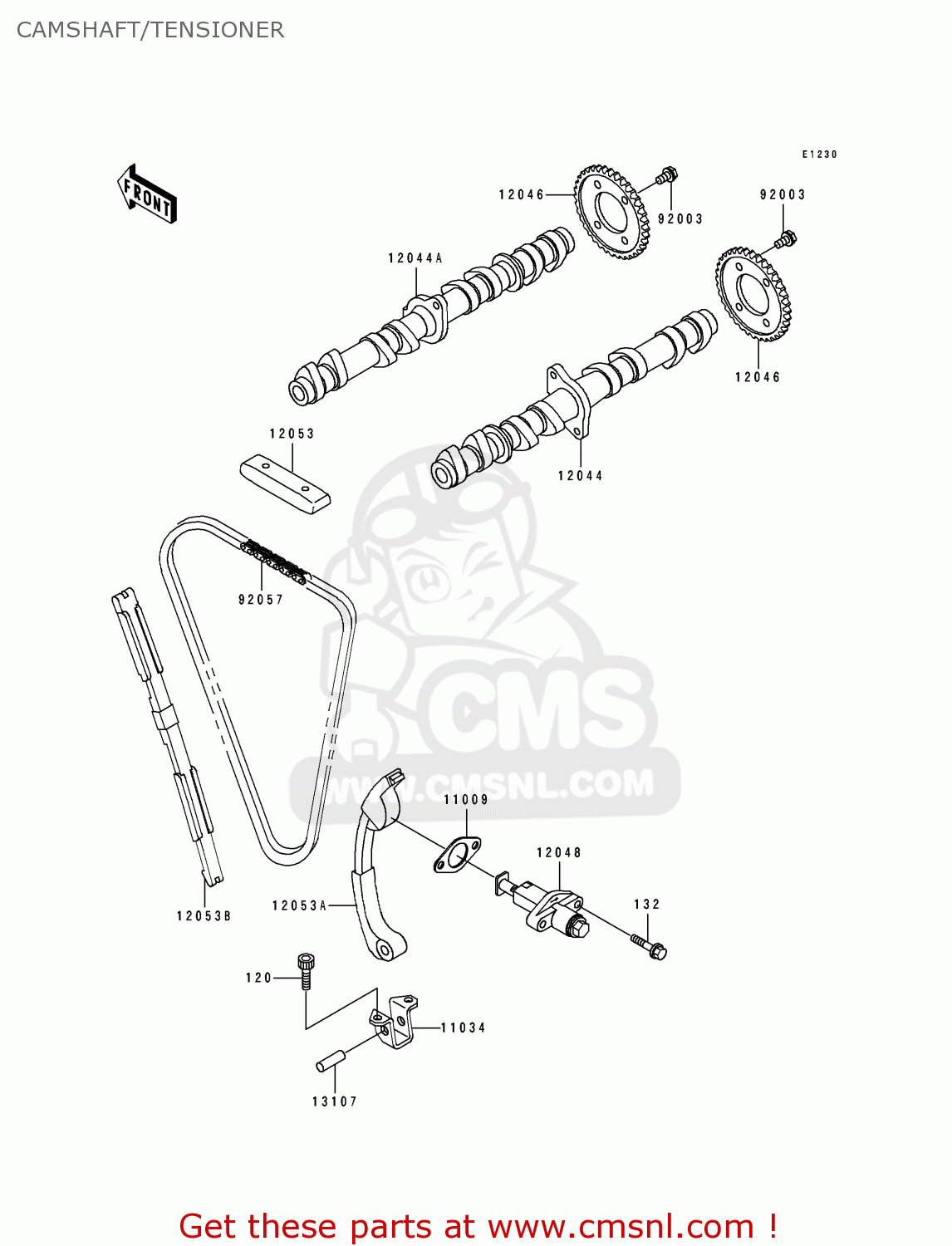

Camshaft/tensioner diagram ZX500C1 ZZR500 1990 AUSTRIA NR
CAMSHAFT/TENSIONER ZX500C1 ZZR500 1990 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
120
120P0618
ref: 120
BOLT,ALLEN,6X18
€ 1.00
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
11009
110091858
ref: 11009
GASKET,TENSIONER (NAS)
€ 3.00
11034
110341240
ref: 11034
BRACKET,CHAIN GUIDE
€ 7.00
12044
120441289
ref: 12044
CAMSHAFT-VALVE,INTAKE
€ 276.00
12044A
120441290
ref: 12044A
CAMSHAFT-VALVE,EXHAUS
€ 276.00
12046
120461121
ref: 12046
SPROCKET,CAMCHAIN,42T
€ 64.00
12048
120481105
ref: 12048
TENSIONER-ASSY
€ 113.50
12053
120531274
ref: 12053
GUIDE-CHAIN,UPP
€ 17.00
12053A
120531275
ref: 12053A
GUIDE-CHAIN,RR
€ 32.50
12053B
120531279
ref: 12053B
GUIDE-CHAIN,FR
€ 31.00
13107
131071142
ref: 13107
SHAFT,L=24.5
€ 5.50
92003
92003208
ref: 92003
BOLT,SPROCKET FITTING
€ 2.50
92057
920571297
ref: 92057
CHAIN,CAM,82RH2015,13
€ 34.50
