METER
ZX500C1 ZZR500 1990 AUSTRIA NR

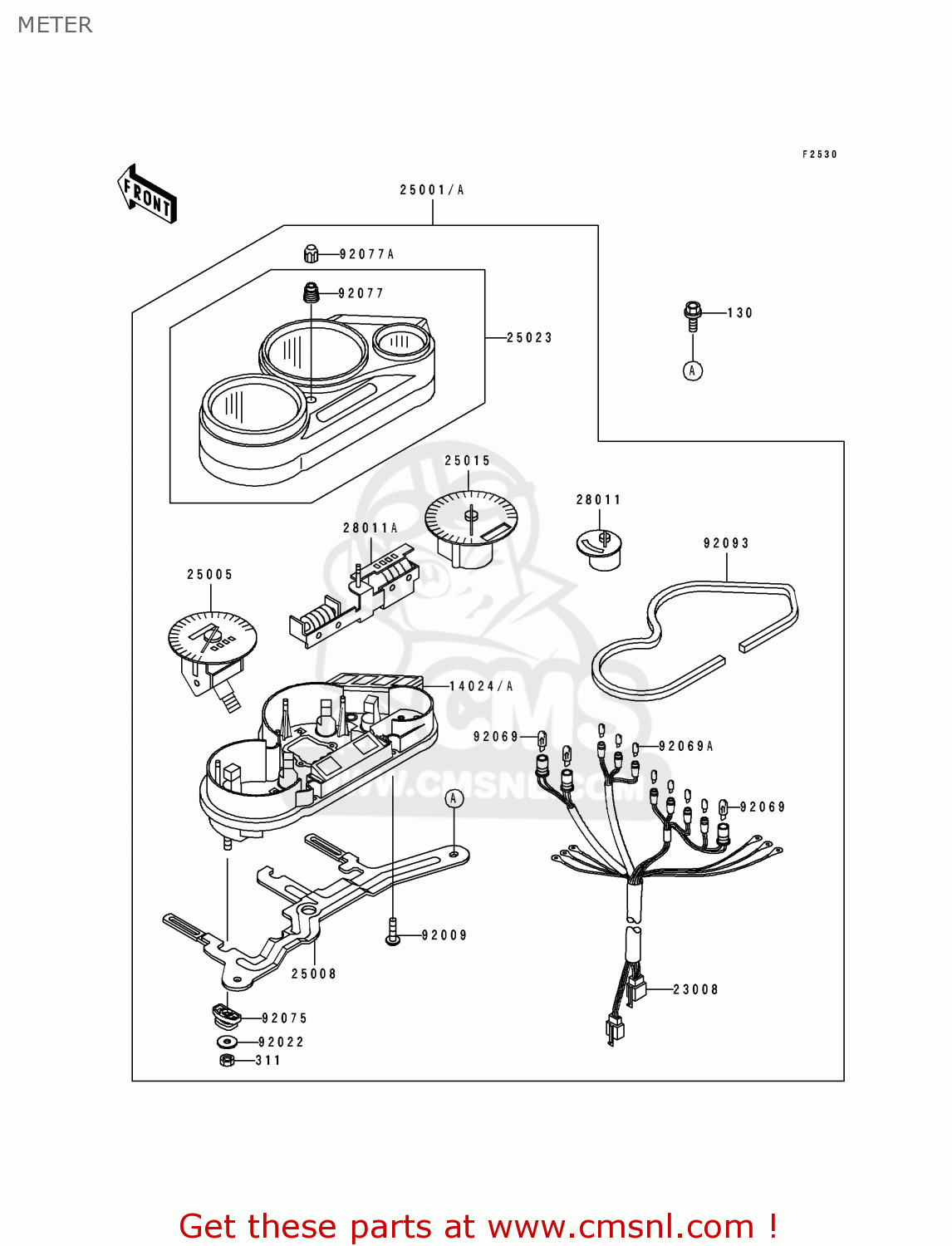

Meter diagram ZX500C1 ZZR500 1990 AUSTRIA NR
METER ZX500C1 ZZR500 1990 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
130
130C0614
ref: 130
BOLT-FLANGED,6X14
€ 1.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
14024
140241887
ref: 14024
AR
COVER,METER HOUSING
€ 32.50
14024A
140241954
ref: 14024A
NR
COVER,METER HOUSING
€ 60.50
23008
230081419
ref: 23008
SOCKET-ASSY,METER
€ 84.00
25001
250011793
ref: 25001
AR
METER-ASSY,KPH
€ 1,018.50
25001A
250011823
ref: 25001A
NR
METER-ASSY,KPH
€ 1,018.50
25005
250051438
ref: 25005
SPEEDOMETER,KPH
€ 70.00
25008
250081160
ref: 25008
BRACKET-METER
€ 49.00
25015
250151289
ref: 25015
TACHOMETER,X1000R/MIN
€ 79.50
25023
250231167
ref: 25023
COVER-METER CASE,UPP
€ 93.50
28011
280111116
ref: 28011
METER,TEMP
€ 28.00
28011A
280111118
ref: 28011A
METER,TRIP
€ 175.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691059
ref: 92069
BULB,12V 1.7W
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92075
920751495
ref: 92075
DAMPER,METER BRACKET
€ 8.00
92077
920771087
ref: 92077
KNOB,TRIP RESET
€ 6.00
92077A
920771094
ref: 92077A
KNOB,TRIP RESET
€ 5.00
92093
920931316
ref: 92093
SEAL,METER
€ 5.50
