COWLING(ZX500-C1)
ZX500C1 ZZR500 1990 AUSTRIA NR

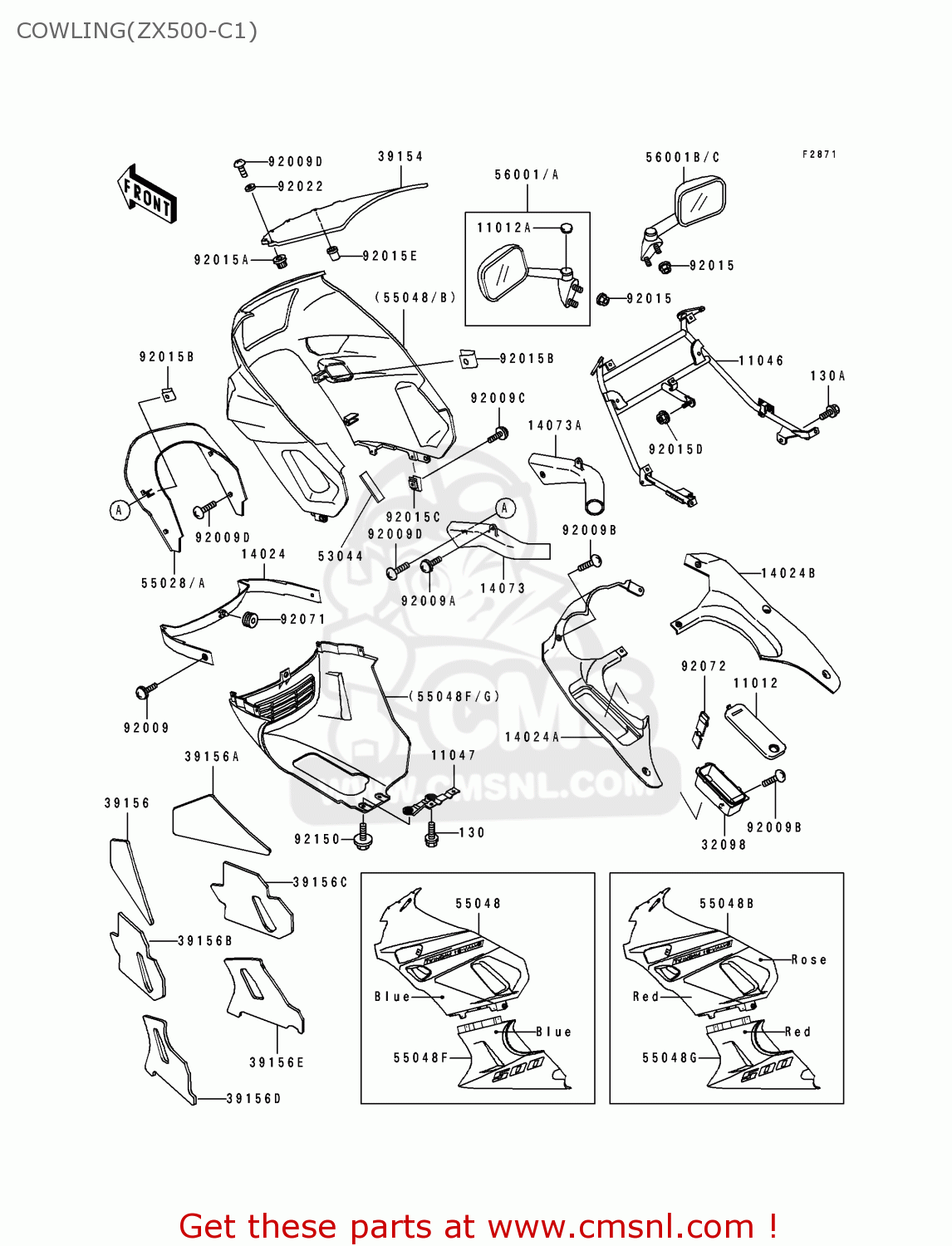

Cowling(zx500-c1) diagram ZX500C1 ZZR500 1990 AUSTRIA NR
COWLING(ZX500-C1) ZX500C1 ZZR500 1990 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
11012
110121735
ref: 11012
CAP,INNER COWLING,LH
€ 18.50
11012A
1101217516Z
ref: 11012A
CAP,MIRROR,BLACK
€ 2.50
11046
110461962
ref: 11046
BRACKET,COWLING
€ 223.50
11047
110471091
ref: 11047
BRACKET,LWR COWLING
€ 17.00
14024
140241877GD
ref: 14024
COVER,COWLING,CNT,G.G
€ 79.00
14024A
140241901
ref: 14024A
COVER,INNER COWLING,L
€ 67.00
14024B
140241902
ref: 14024B
COVER,INNER COWLING,R
€ 64.00
14073
140731426
ref: 14073
DUCT,AIR INTAKE,LH
€ 25.50
14073A
140731427
ref: 14073A
DUCT,AIR INTAKE,RH
€ 12.50
32098
320981093
ref: 32098
CASE-TOOL
€ 24.00
39154
391541109
ref: 39154
WINDSHIELD
€ 167.00
39156
391561207
ref: 39156
PAD,UPP COWLING,UPP,L
€ 7.00
39156A
391561208
ref: 39156A
PAD,UPP COWLING,UPP,R
€ 7.00
39156B
391561209
ref: 39156B
PAD,UPP COWLING,LWR,L
€ 19.00
39156C
391561210
ref: 39156C
PAD,UPP COWLING,LWR,R
€ 19.00
39156D
391561211
ref: 39156D
PAD,LWR COWLING,LH
€ 17.00
39156E
391561212
ref: 39156E
PAD,LWR COWLING,RH
€ 17.00
53044
530441218
ref: 53044
TRIM,L=80
€ 3.00
55028
550281244FC
ref: 55028
COWLING,FR,C.A.BLUE
€ 106.00
55028A
550281244L1
ref: 55028A
COWLING,FR,C.C.RED
€ 106.00
55048
550485428GX
ref: 55048
COWLING.,UPP,BLUE/BLU
€ 765.50
55048B
550485430HF
ref: 55048B
COWLING.,UPP,RED/ROSE
€ 765.50
55048F
550485436GX
ref: 55048F
COWLING.,LWR,BLUE/BLU
€ 291.50
55048G
550485437HF
ref: 55048G
COWLING.,LWR,RED/ROSE
€ 341.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
130A
130J0812
ref: 130A
BOLT-FLANGED
€ 0.50
56001
560011392FC
ref: 56001
MIRROR-ASSY,LH,C.A.BL
€ 113.00
56001A
560011392L1
ref: 56001A
MIRROR-ASSY,LH,C.C.RE
€ 123.00
56001B
560011393FC
ref: 56001B
MIRROR-ASSY,RH,C.A.BL
€ 113.00
56001C
560011393L1
ref: 56001C
MIRROR-ASSY,RH,C.C.RE
€ 119.00
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92009A
920091288
ref: 92009A
SCREW,6X14
€ 2.00
92009B
920091611
ref: 92009B
SCREW,6X14
€ 2.50
92009C
920091621
ref: 92009C
SCREW
€ 1.50
92009D
920091654
ref: 92009D
SCREW
€ 0.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92015A
920151343
ref: 92015A
NUT,5MM,COWLING
€ 3.00
92015B
920151573
ref: 92015B
NUT,5MM
€ 4.50
92015C
920151602
ref: 92015C
NUT,6MM
€ 4.50
92015D
920151696
ref: 92015D
NUT,FLANGED,LOCK,8MM
€ 3.00
92015E
920151757A
ref: 92015E
NUT,5MM
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92071
92071056
ref: 92071
GROMMET
€ 2.50
92072
920721235
ref: 92072
BAND,L=300
€ 12.00
92150
921501133
ref: 92150
BOLT,6X14
€ 2.50
