STEP

ZX500C1 ZZR500 1990 AUSTRIA NR

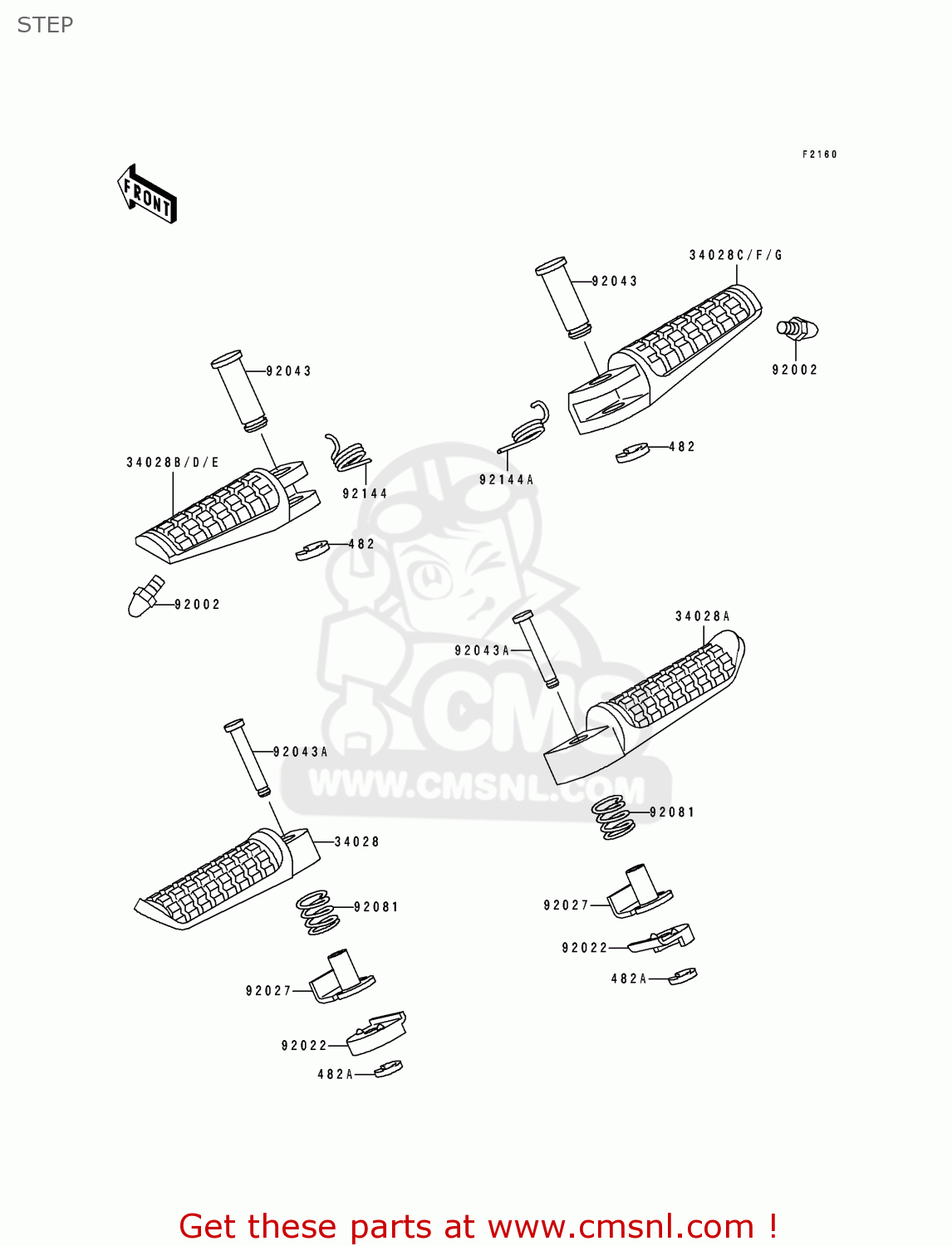

Step diagram ZX500C1 ZZR500 1990 AUSTRIA NR

STEP ZX500C1 ZZR500 1990 AUSTRIA NR

STEP ZX500C1 ZZR500 1990 AUSTRIA NR

prices are in EUR

ref

part #

description

quantity

482

482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

482A

482L5000
ref: 482A

CIRCLIP-TYPE-E,5MM

€ 1.00

34028

340281191
ref: 34028

STEP,RR,LH

€ 65.00

34028A

340281192
ref: 34028A

STEP,RR,RH

€ 65.00

34028B

340281328
ref: 34028B

STEP,FR,LH

€ 46.50

34028C

340281329
ref: 34028C

STEP,FR,RH

€ 73.00

92002

920021742
ref: 92002

BOLT,BANK SENSOR

€ 6.00

92022

920221507
ref: 92022

WASHER,STEP,RR

€ 3.50

92027

920271732
ref: 92027

COLLAR,STEP

€ 7.00

92043

920431144
ref: 92043

PIN,12X37

€ 6.50

92043A

920431271
ref: 92043A

PIN,6X34

€ 3.50

92081

920811612
ref: 92081

SPRING,STEP,RR

€ 2.50

92144

921441567
ref: 92144

SPRING,STEP RETURN,LH

€ 4.00

92144A

921441568
ref: 92144A

SPRING,STEP RETURN,RH

€ 4.00
