TAILLIGHT(S)
ZX500B2 GPX500R 1989 AUSTRIA NR

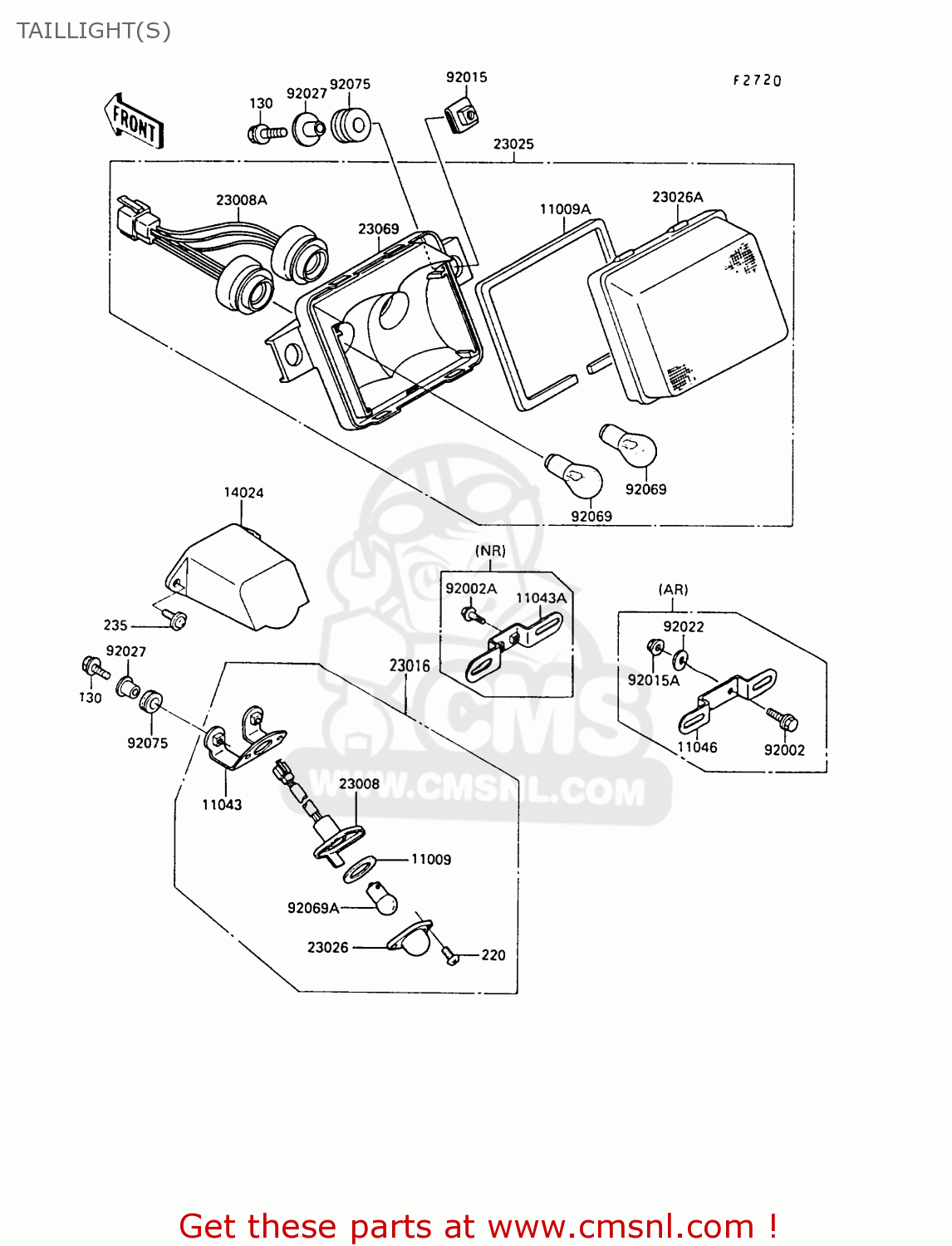

Taillight(s) diagram ZX500B2 GPX500R 1989 AUSTRIA NR
TAILLIGHT(S) ZX500B2 GPX500R 1989 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
130
130D0625
ref: 130
BOLT-FLANGED
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
235
235C0616
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091662
ref: 11009A
GASKET,TAIL LAMP LENS (NAS)
€ 4.50
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
€ 10.00
11043A
110431499
ref: 11043A
NR
BRACKET,REFLECTOR
€ 12.00
11046
110461109
ref: 11046
AR
BRACKET,LICENSE PLATE
€ 13.00
14024
140251821
ref: 14024
COVER,LICENSE PLATE L
€ 13.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
€ 7.50
23008A
230081264
ref: 23008A
SOCKET-ASSY,TAIL LAMP
€ 23.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251167
ref: 23025
LAMP-TAIL
€ 83.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261088
ref: 23026A
LENS,TAIL LAMP
€ 30.50
23069
230691079
ref: 23069
BODY-TAIL LAMP
€ 83.50
92002
920021124
ref: 92002
AR
BOLT,6X16
€ 2.50
92002A
920021351
ref: 92002A
NR
BOLT
€ 2.50
92015
920151094
ref: 92015
NUT,MUFFLER
€ 5.50
92015A
920151193
ref: 92015A
AR
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
AR
WASHER,6.5X20X1.6
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
