Genuine ZX Kawasaki Parts delivered quickly!


REAR HUB

ZX500B2 GPX500R 1989 AUSTRIA NR

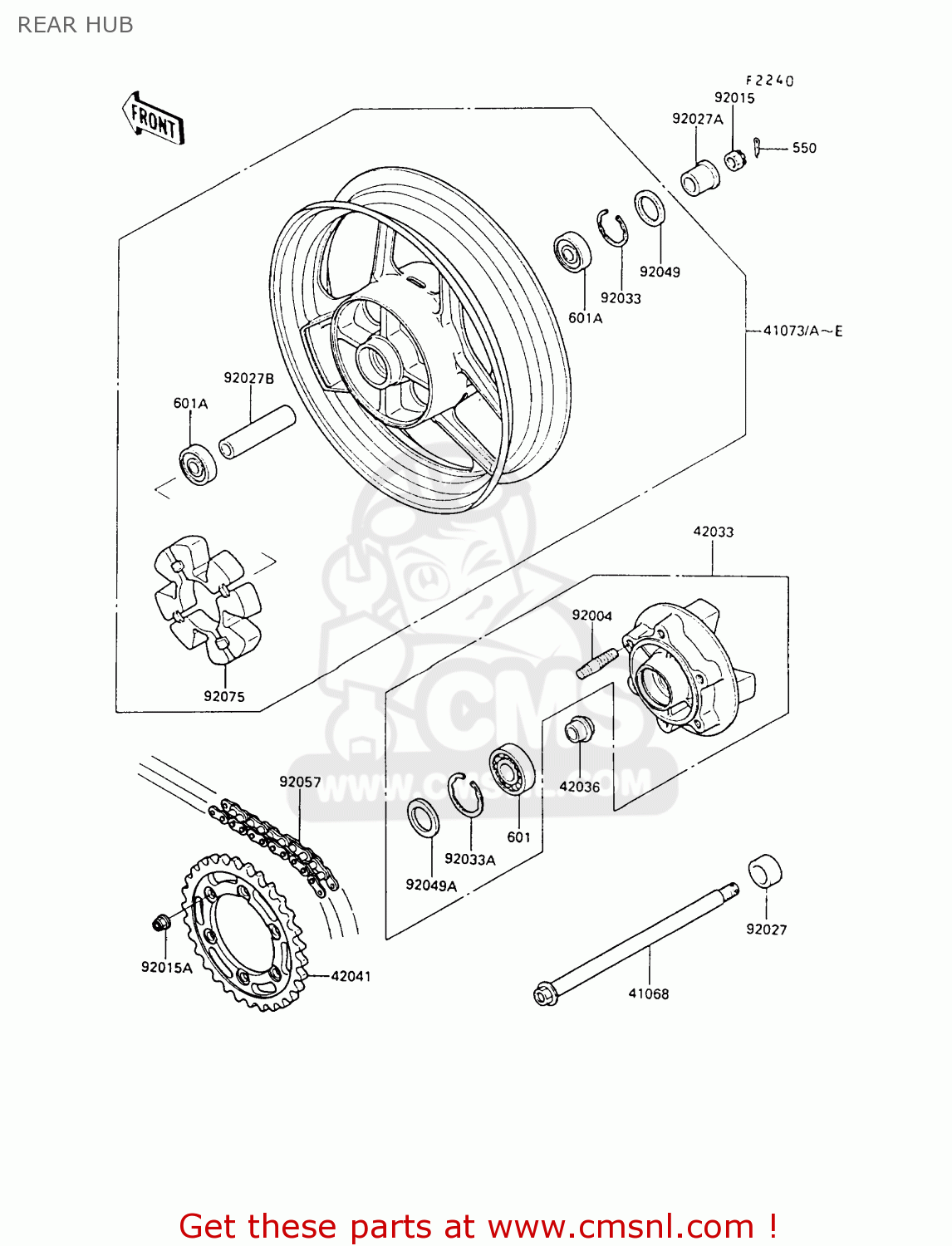

Rear hub diagram ZX500B2 GPX500R 1989 AUSTRIA NR

REAR HUB ZX500B2 GPX500R 1989 AUSTRIA NR
REAR HUB ZX500B2 GPX500R 1989 AUSTRIA NR
REAR HUB ZX500B2 GPX500R 1989 AUSTRIA NR
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
601B6205G
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
41068
410681232
ref: 41068
AXLE,RR
410681232
€ 36.00
41073
410731310R2
ref: 41073
WHEEL-ASSY,RR,BLACK
410731310R2
€ 771.50
41073A
410731310T6
ref: 41073A
WHEEL-ASSY,RR,WHITE N
€ 700.50
41073B
410731310X4
ref: 41073B
WHEEL-ASSY,RR,F.RED
410731310X4
€ 526.50
42033
420331114
ref: 42033
COUPLING-ASSY,RR HUB
420331114
€ 204.50
42036
420361149
ref: 42036
SLEEVE,RR HUB,L=26
420361149
€ 20.50
42041
420411281
ref: 42041
SPROCKET-HUB,42T
€ 34.00
92004
920041146
ref: 92004
STUD,10X24
920041146
€ 4.00
92015
42045014
ref: 92015
NUT CASTLE, 16M/M
42045014
€ 6.50
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
920151502
€ 7.00
92027
920271874
ref: 92027
COLLAR,RR AXLE,L=20
920271874
€ 13.50
92027A
920271875
ref: 92027A
COLLAR,RR AXLE,L=28
920271875
€ 16.50
92027B
920271876
ref: 92027B
COLLAR,L=106
920271876
€ 15.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92049A
92052006
ref: 92049A
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571238
ref: 92057
CHAIN,DRIVE,EK50MV-OX
€ 129.50
92075
920751687
ref: 92075
DAMPER,SHOCK,RR HUB
920751687
€ 54.50
