CRANKCASE BOLT PATTERN

ZX500B2 GPX500R 1989 AUSTRIA NR

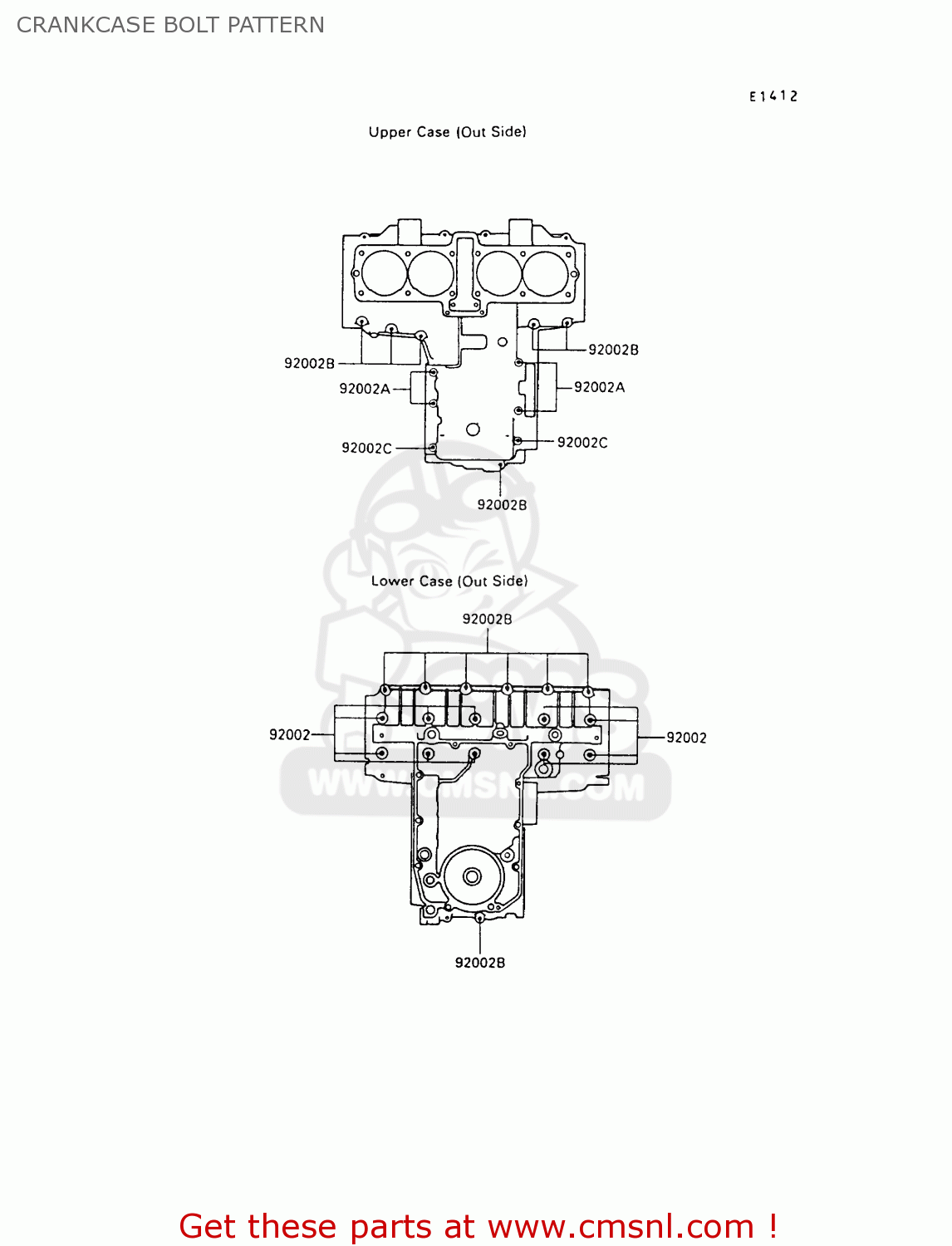

Crankcase bolt pattern diagram ZX500B2 GPX500R 1989 AUSTRIA NR

CRANKCASE BOLT PATTERN ZX500B2 GPX500R 1989 AUSTRIA NR
CRANKCASE BOLT PATTERN ZX500B2 GPX500R 1989 AUSTRIA NR
CRANKCASE BOLT PATTERN ZX500B2 GPX500R 1989 AUSTRIA NR
prices are in EUR
ref
part #
description
quantity
92002
920021077
ref: 92002
BOLT,8X95
920021077
€ 7.50
92002A
920021078
ref: 92002A
BOLT,6X95
€ 2.50
92002B
920021080
ref: 92002B
BOLT,6X40
920021080
€ 3.50
92002C
920021483
ref: 92002C
BOLT,6X75
920021483
€ 3.00
