BRAKE PEDAL

ZX500B2 GPX500R 1989 AUSTRIA NR

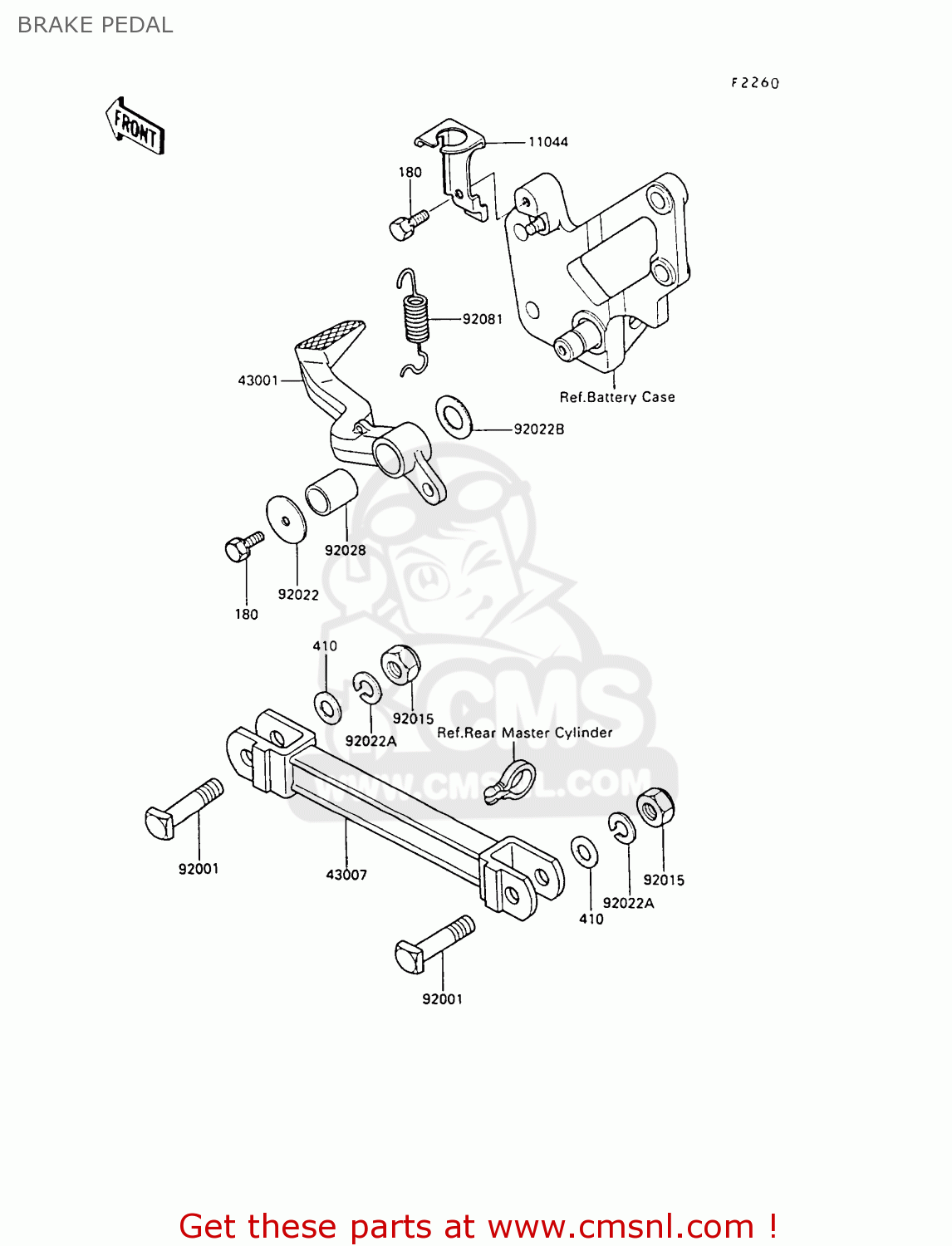

Brake pedal diagram ZX500B2 GPX500R 1989 AUSTRIA NR

BRAKE PEDAL ZX500B2 GPX500R 1989 AUSTRIA NR

BRAKE PEDAL ZX500B2 GPX500R 1989 AUSTRIA NR

prices are in EUR

ref

part #

description

quantity

180

180B0614
ref: 180

BOLT-UPSET-WSP

€ 2.50

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

11044

110441107
ref: 11044

BRACKET,RR BRAKE SWIT

€ 6.50

43001

430011224
ref: 43001

LEVER-BRAKE,PEDAL

€ 88.50

43007

430071133
ref: 43007

ROD-TORQUE

€ 54.00

92001

920011307
ref: 92001

BOLT,SQUARE HEAD

€ 4.50

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

920221540
ref: 92022A

WASHER,SPRING,10MM

€ 2.50

92022B

92022326
ref: 92022B

WASHER,15.3X24X1

€ 2.50

92028

920281282
ref: 92028

BUSHING,BRAKE PEDAL

€ 9.50

92081

920811833
ref: 92081

SPRING,BRAKE PEDAL

€ 7.00
