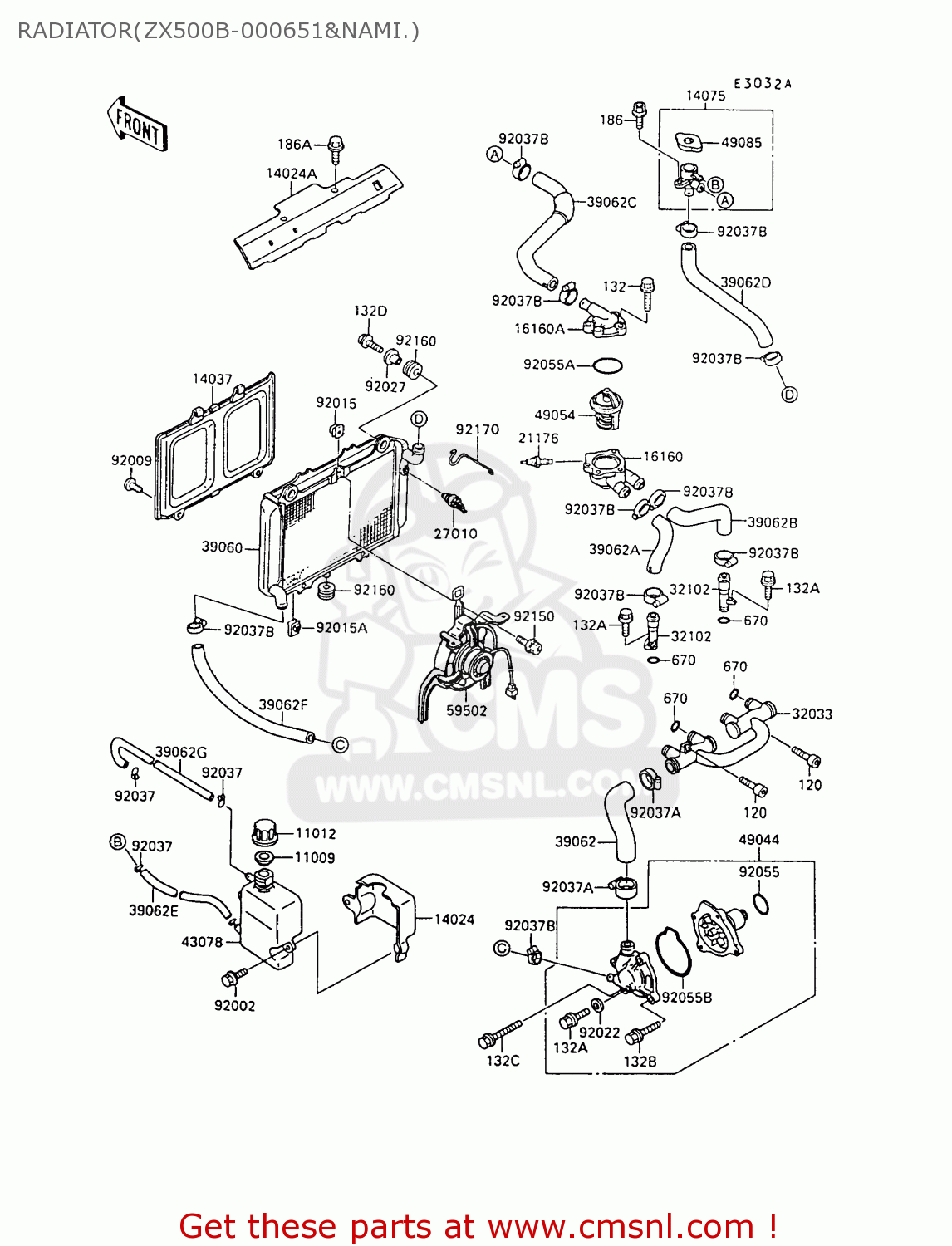

RADIATOR(ZX500B-000651&NAMI.)

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

14024

140241426
ref: 14024

COVER,RESERVOIR

€ 10.00

14024A

140241441
ref: 14024A

COVER

€ 17.00

14037

140371091
ref: 14037

SCREEN

€ 63.00

14075

140751061
ref: 14075

CAP-ASSY

€ 128.00

16160

161601112
ref: 16160

BODY,THERMOSTAT,LWR

€ 53.50

16160A

161601129
ref: 16160A

BODY,THERMOSTAT,UPP

€ 39.00

21176

211761054
ref: 21176

SENSOR,WATER

€ 49.50

27010

270101249
ref: 27010

SWITCH,THERMOSTAT

€ 63.00

32033

320331593
ref: 32033

PIPE

€ 91.50

32102

321021043
ref: 32102

PIPE

€ 23.50

39060

390601085
ref: 39060

RADIATOR

€ 576.50

39062

390621111
ref: 39062

HOSE-COOLING,PUMP-CYL

€ 21.00

39062A

390621235
ref: 39062A

HOSE-COOLING,HEAD-THE

€ 12.00

39062B

390621236
ref: 39062B

HOSE-COOLING,HEAD-THE

€ 18.50

39062C

390621237
ref: 39062C

HOSE-COOLING,CAP-THER

€ 21.00

39062D

390621238
ref: 39062D

HOSE-COOLING,CAP-RADI

€ 15.50

39062E

390621240
ref: 39062E

HOSE-COOLING,RESERVOI

€ 18.00

39062F

390621256
ref: 39062F

HOSE-COOLING,RADIATOR

€ 17.00

39062G

390621269
ref: 39062G

HOSE-COOLING

€ 18.00

43078

430781086
ref: 43078

RESERVOIR

€ 34.00

49044

490441054
ref: 49044

PUMP-WATER

€ 288.50

49054

490541059
ref: 49054

THERMOSTAT

€ 41.50

49085

490851003
ref: 49085

CAP-ASSY-PRESSURE

€ 23.50

59502

595021081
ref: 59502

FAN-ASSY

€ 389.50

92002

920021720
ref: 92002

BOLT,6X16

€ 2.50

92009

920091436
ref: 92009

SCREW

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92022

920221627
ref: 92022

WASHER,6MM

€ 4.00

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371985
ref: 92037A

CLAMP,COOLING HOSE

€ 7.50

92037B

920371986
ref: 92037B

CLAMP,COOLING HOSE

€ 13.00

92055

920551266
ref: 92055

RING-O,33.8MM

€ 12.00

92055A

920551279
ref: 92055A

RING-O,45MM

€ 4.50

92055B

920551315
ref: 92055B

RING-O,WATER PUMP

€ 8.00

92150

921501187
ref: 92150

BOLT,6X16

€ 2.50

92160

921601007
ref: 92160

DAMPER

€ 3.50

120

120S0612
ref: 120

BOLT-SOCKET

€ 1.50

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132J0612
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0625
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

132C

132J0645
ref: 132C

BOLT-FLANGED-SMALL

€ 3.00

132D

132J0825
ref: 132D

BOLT-FLANGED-SMALL

€ 2.50

186

186C0614
ref: 186

BOLT-UPSET-WP

€ 2.50

186A

186C0616
ref: 186A

BOLT-UPSET-WP

€ 2.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

92170

921701074
ref: 92170

CLAMP

€ 6.00
