SUSPENSION
ZX400L7 ZXR400 1997 AUSTRIA FG

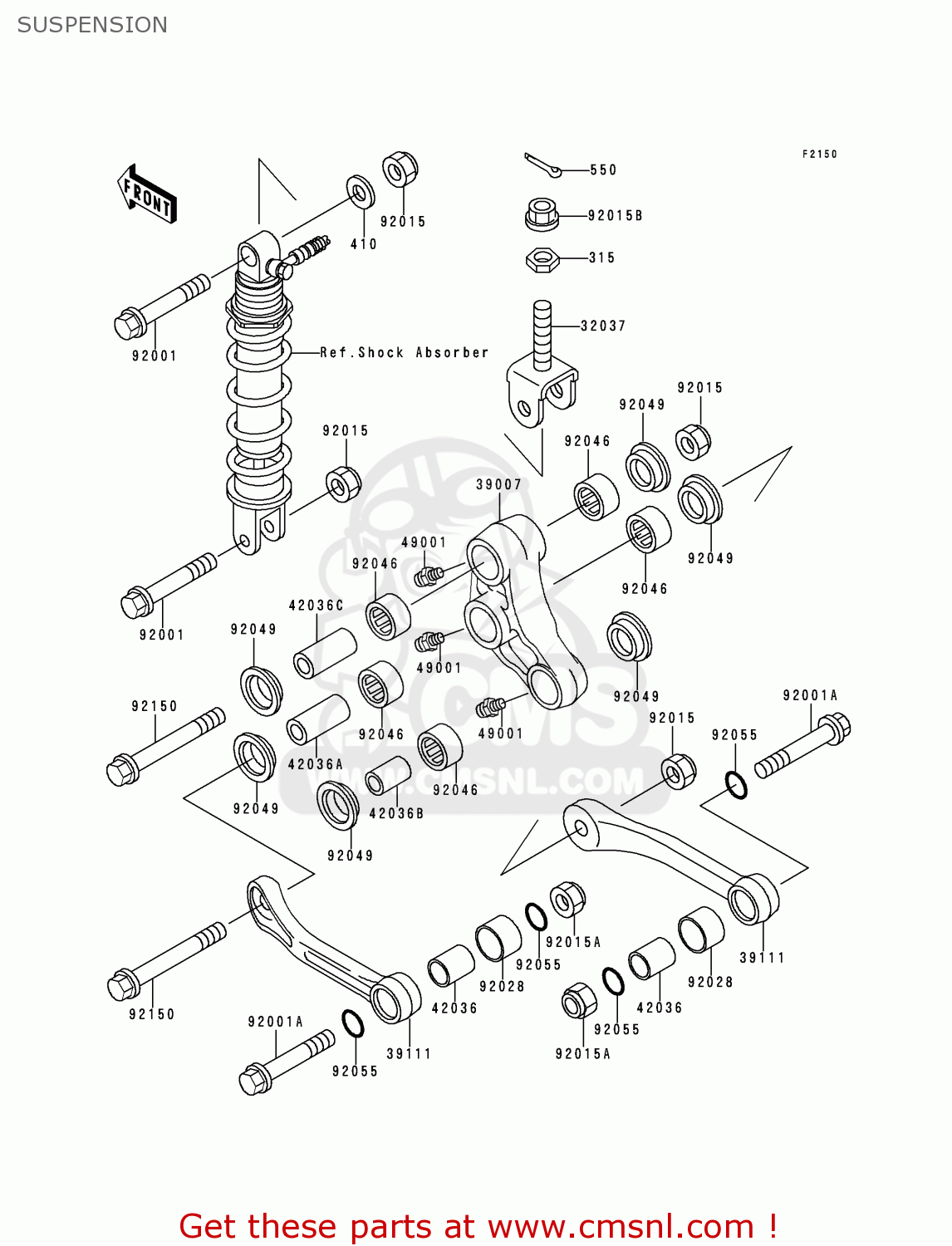

Suspension diagram ZX400L7 ZXR400 1997 AUSTRIA FG
SUSPENSION ZX400L7 ZXR400 1997 AUSTRIA FG
×
prices are in EUR
ref
part #
description
quantity
315
315B1600
ref: 315
NUT-HEX-FINE,16MM
€ 2.50
410
410F1200
ref: 410
410F1200
550
550D4025
ref: 550
PIN,COTTER,4X25
€ 0.50
32037
320371514
ref: 32037
BRACKET-SHOCKABSORBER
€ 45.50
39007
390071202
ref: 39007
ARM-SUSP,UNI TRAK
€ 132.50
39111
391111087
ref: 39111
ROD-TIE
€ 82.50
42036
420361076
ref: 42036
SLEEVE,12.1X20X22
€ 12.00
42036A
420361111
ref: 42036A
SLEEVE,12.5X20X50
€ 15.00
42036B
420361234
ref: 42036B
SLEEVE,12.1X20X30
€ 10.50
42036C
420361235
ref: 42036C
SLEEVE,12.1X20X47
€ 12.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
92001
920011938
ref: 92001
BOLT,12X55
€ 8.50
92001A
920011939
ref: 92001A
BOLT,12X45
€ 5.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
€ 4.50
92015A
920151375
ref: 92015A
NUT,12MM
€ 4.50
92015B
920151881
ref: 92015B
NUT,FLANGED,16MM
€ 16.50
92028
920281599
ref: 92028
BUSHING
€ 18.00
92046
920461112
ref: 92046
BEARING-NEEDLE,BM2027
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92055
920551215
ref: 92055
RING-O,19.8X2.2
€ 2.50
92150
921501100
ref: 92150
BOLT,FLANGED,12X77
€ 7.00
