REAR HUB
ZX400L7 ZXR400 1997 AUSTRIA FG

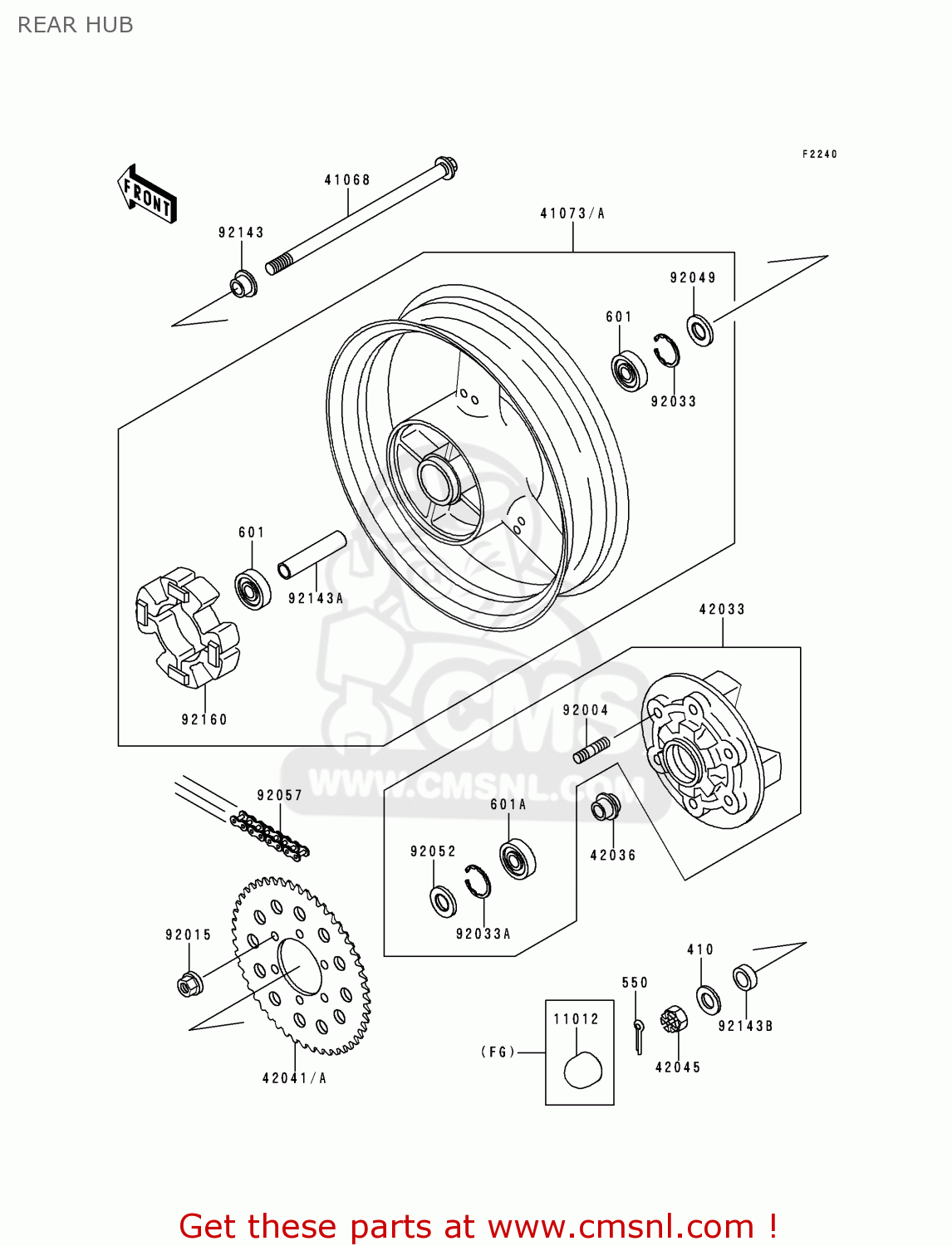

Rear hub diagram ZX400L7 ZXR400 1997 AUSTRIA FG
REAR HUB ZX400L7 ZXR400 1997 AUSTRIA FG
×
prices are in EUR
ref
part #
description
quantity
410
410D1800
ref: 410
W-PLAIN-S,18MM
€ 1.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6204UU
ref: 601
BEARING-BALL,6204UUC3
€ 28.00
601A
601B6205G
ref: 601A
BEARING BALL
€ 14.00
11012
110121590
ref: 11012
FG
CAP,AXLE NUT
€ 3.50
41068
410681329
ref: 41068
AXLE,RR
€ 93.00
41073
410731472CJ
ref: 41073
WHEEL-ASSY,RR,L.GREEN
€ 922.50
41073A
410731472DH
ref: 41073A
WHEEL-ASSY,RR,P.C.GRA
€ 969.00
42033
420331146
ref: 42033
COUPLING-ASSY,RR HUB
€ 204.00
42036
420361251
ref: 42036
SLEEVE,RR HUB,L=23
€ 18.00
42041
420411376
ref: 42041
FG
SPROCKET-HUB,45T
€ 41.00
42041A
420411446
ref: 42041A
AR
SPROCKET-HUB
€ 48.50
42045
42045018
ref: 42045
NUT,18MM
€ 7.50
92004
920041151
ref: 92004
STUD,10X19.5
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
€ 3.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
€ 6.50
92057
920571347
ref: 92057
CHAIN,DRIVE,EK520MV-O
€ 226.00
92143
921431042
ref: 92143
COLLAR,L=23
€ 19.50
92143A
921431409
ref: 92143A
COLLAR,RR HUB,L=129.5
€ 16.50
92143B
921431410
ref: 92143B
COLLAR,RR AXLE,L=14.5
€ 12.50
92160
921601203
ref: 92160
DAMPER,SHOCK,RR HUB
€ 60.00
