CARBURETOR
ZX400L7 ZXR400 1997 AUSTRIA FG

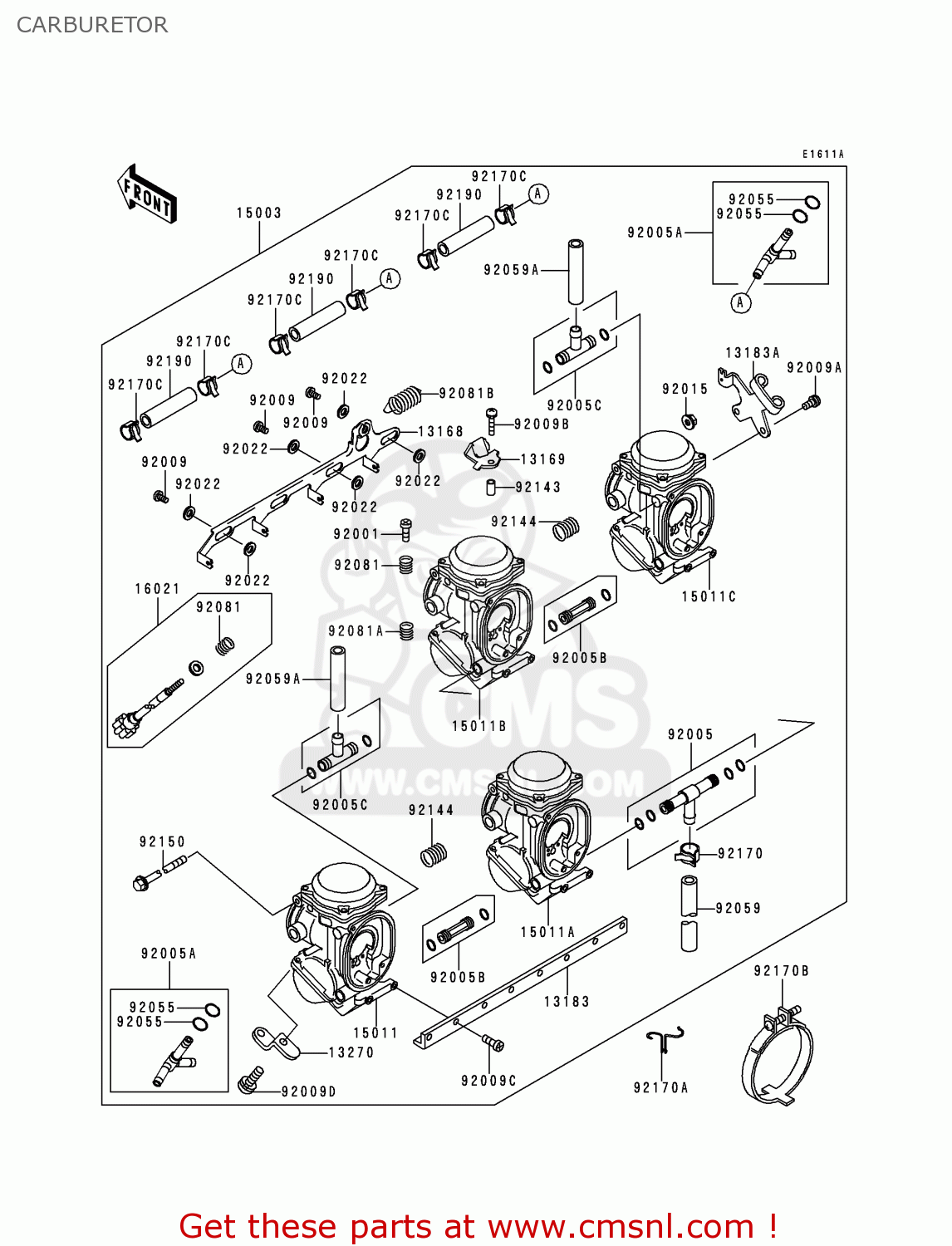

Carburetor diagram ZX400L7 ZXR400 1997 AUSTRIA FG
CARBURETOR ZX400L7 ZXR400 1997 AUSTRIA FG
×
prices are in EUR
ref
part #
description
quantity
13168
131681403
ref: 13168
LEVER,STARTER
€ 96.50
13169
131691965
ref: 13169
PLATE,STARTER CABLE
€ 26.50
13183
131831317
ref: 13183
PLATE,CARBURETOR LWR
€ 47.00
13183A
131831501
ref: 13183A
PLATE,THROTTLE CABLE
€ 27.50
13270
132701080
ref: 13270
PLATE,FITTING STAY
€ 4.50
15003
150031330
ref: 15003
CARBURETOR-ASSY
€ 1,587.00
15011
150111387
ref: 15011
CARBURETOR,LH,OUTSIDE
€ 531.00
15011A
150111388
ref: 15011A
CARBURETOR,LH,INSIDE
€ 694.50
15011B
150111389
ref: 15011B
CARBURETOR,RH,INSIDE
€ 531.00
15011C
150111390
ref: 15011C
CARBURETOR,RH,OUTSIDE
€ 694.50
16021
160211188
ref: 16021
SCREW-THROTTLE STOP
€ 61.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051288
ref: 92005
FITTING
€ 22.00
92005A
920051291
ref: 92005A
FITTING
€ 26.50
92005B
920051310
ref: 92005B
FITTING
€ 25.00
92005C
920051338
ref: 92005C
FITTING
€ 17.00
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091446
ref: 92009B
SCREW,4X18
€ 4.00
92009C
920091591
ref: 92009C
SCREW,5X14
€ 3.00
92009D
920091704
ref: 92009D
SCREW
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92055
920551427
ref: 92055
RING-O,4.5X1.5
€ 3.00
92059
920591487
ref: 92059
TUBE,7.3X12.5X240
€ 25.00
92059A
920591966
ref: 92059A
TUBE,6.5X9.5X70
€ 4.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811762
ref: 92081B
SPRING,STARTER LEVER
€ 14.00
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
€ 3.00
92144
921441350
ref: 92144
SPRING,THROTTLE SHAFT
€ 6.00
92150
921501204
ref: 92150
BOLT,5X270
€ 20.50
92170
921701051
ref: 92170
CLAMP,TUBE
€ 5.50
92170A
921701207
ref: 92170A
CLAMP,CABLE
€ 6.50
92170B
921701387
ref: 92170B
CLAMP
€ 7.00
92170C
921701504
ref: 92170C
CLAMP
€ 3.00
92190
921901539
ref: 92190
TUBE,WATER
€ 7.50
