CHASSIS ELECTRICAL EQUIPMENT

ZX400L7 ZXR400 1997 AUSTRIA FG

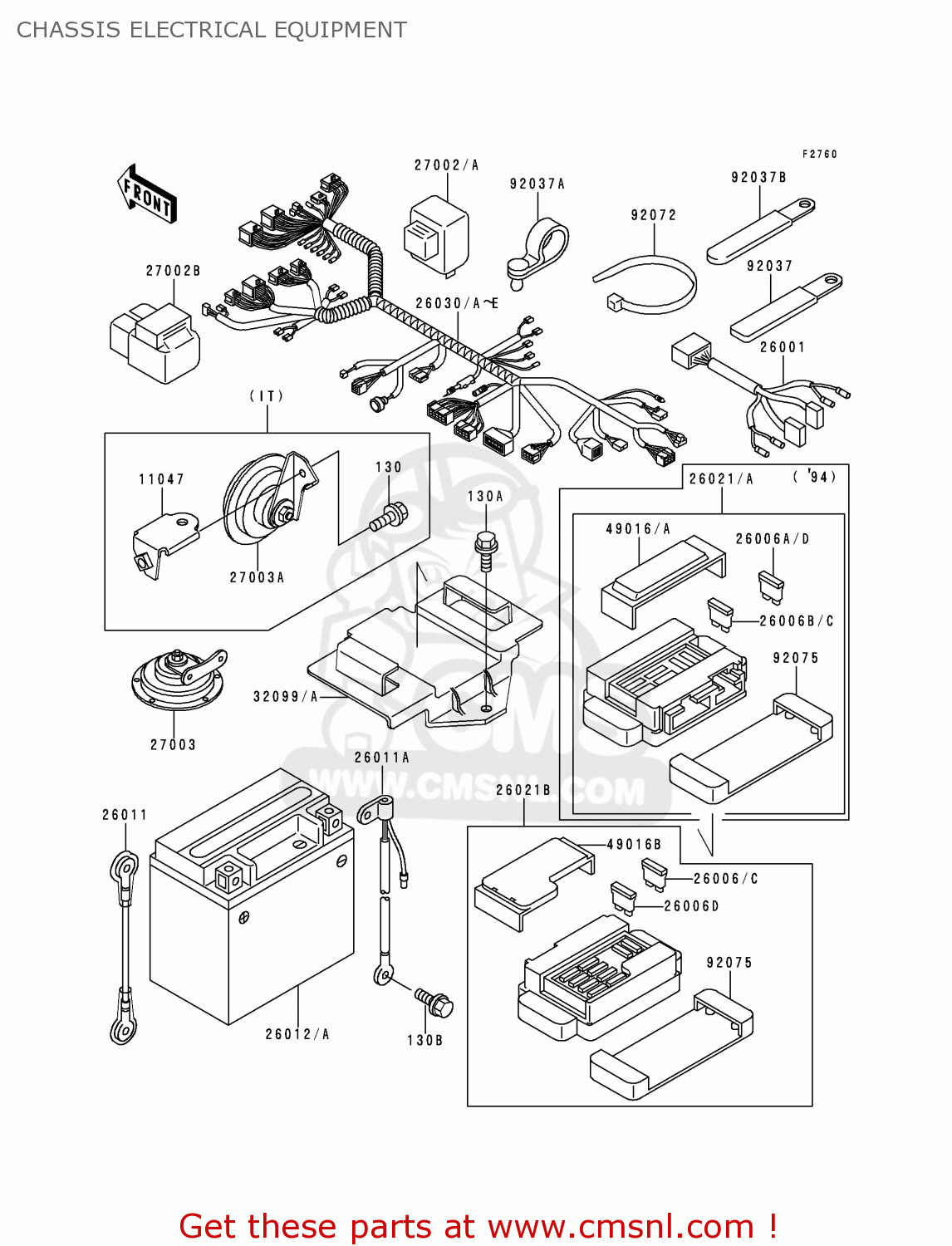

Chassis electrical equipment diagram ZX400L7 ZXR400 1997 AUSTRIA FG

CHASSIS ELECTRICAL EQUIPMENT ZX400L7 ZXR400 1997 AUSTRIA FG
CHASSIS ELECTRICAL EQUIPMENT ZX400L7 ZXR400 1997 AUSTRIA FG
CHASSIS ELECTRICAL EQUIPMENT ZX400L7 ZXR400 1997 AUSTRIA FG
prices are in EUR
ref
part #
description
quantity
26001
260011981
ref: 26001
HARNESS,RR
260011981
€ 24.50
26006C
260061067
ref: 26006C
FUSE, 30A-G
€ 3.00
26006D
260061068
ref: 26006D
FUSE, 10A-R
€ 3.00
26011
260111398
ref: 26011
WIRE-LEAD,BATTERY(+)
260111398
€ 20.50
26011A
260111429
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111429
€ 16.50
26012A
260121326
ref: 26012A
BATTERY,YTX9BS,12V8AH
€ 100.00
26021B
260211090
ref: 26021B
JUNCTION BOX
260211090
€ 140.50
26030C
260301347
ref: 26030C
HARNESS,MAIN
€ 249.50
27002
270021053
ref: 27002
AR
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27002A
270021060
ref: 27002A
FG
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27003
270031316
ref: 27003
HORN
270031316
€ 55.50
130A
130D0610
ref: 130A
BOLT-FLANGED
€ 0.50
130B
130G0610
ref: 130B
BOLT-FLANGED,6X10
130G0610
€ 0.50
32099A
320991162
ref: 32099A
CASE,JUNCTION BOX
320991162
€ 11.50
49016B
490161177
ref: 49016B
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371903
ref: 92037A
CLAMP
920371903
€ 5.00
92037B
920371993
ref: 92037B
CLAMP
920371993
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
