RADIATOR
ZX400L7 ZXR400 1997 AUSTRIA FG

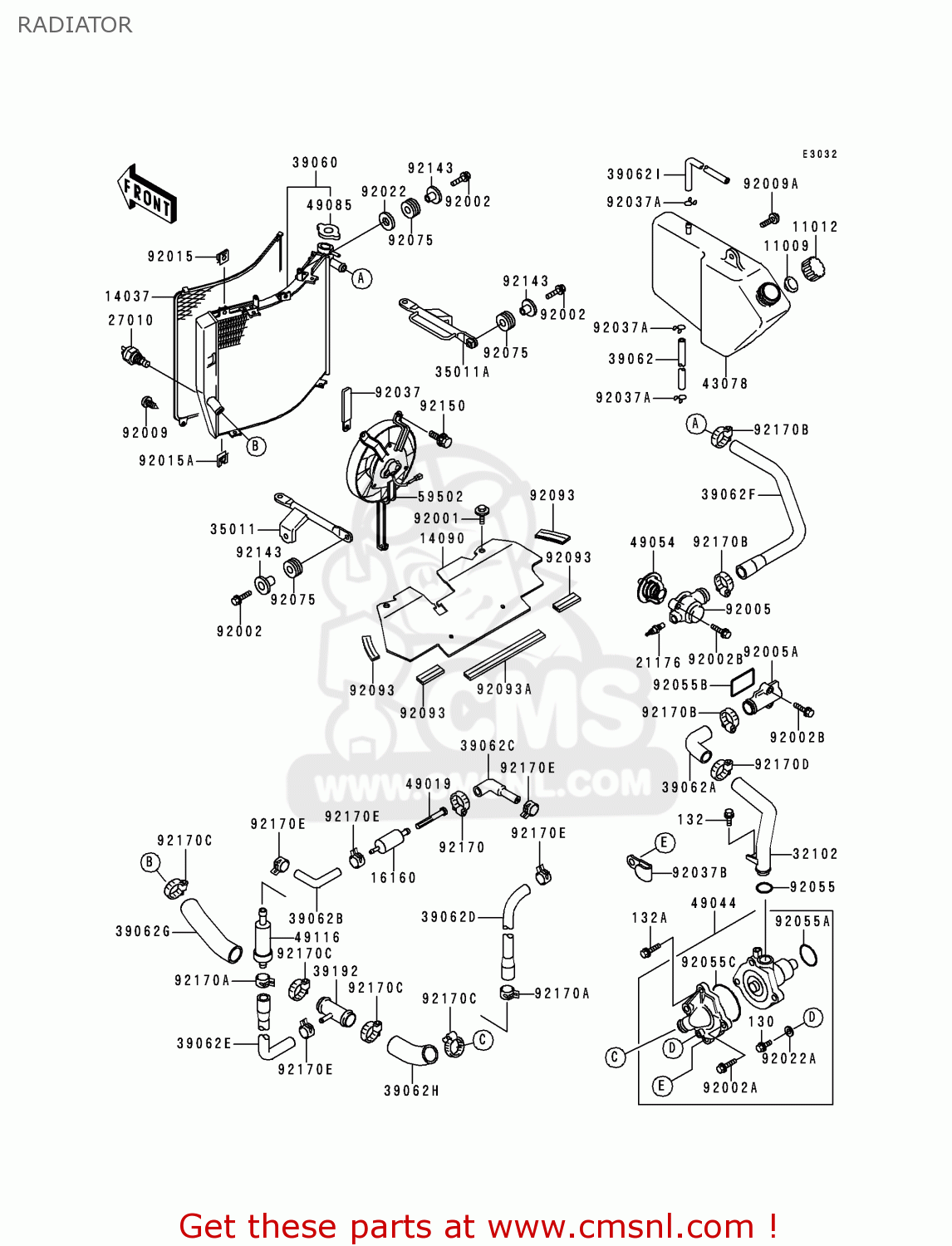

Radiator diagram ZX400L7 ZXR400 1997 AUSTRIA FG
RADIATOR ZX400L7 ZXR400 1997 AUSTRIA FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140371134
ref: 14037
SCREEN,RADIATOR
€ 61.50
14090
140901063
ref: 14090
COVER,HEAT
€ 15.50
16160
161601151
ref: 16160
BODY,FILTER
€ 6.50
21176
211761054
ref: 21176
SENSOR,WATER
€ 49.50
27010
270101317
ref: 27010
SWITCH,FAN
€ 105.50
32102
321021927
ref: 32102
PIPE
€ 21.00
35011
350111584
ref: 35011
STAY,LH
€ 22.50
35011A
350111585
ref: 35011A
STAY,RH
€ 20.00
39060
390601102
ref: 39060
RADIATOR
€ 576.50
39062
390621007
ref: 39062
HOSE-COOLING,RESERVIR
€ 25.00
39062A
390621282
ref: 39062A
HOSE-COOLING,PUMP-CYL
€ 10.00
39062B
390621333
ref: 39062B
HOSE-COOLING
€ 5.50
39062C
390621335
ref: 39062C
HOSE-COOLING
€ 4.50
39062D
390621380
ref: 39062D
HOSE-COOLING,VALVE-PU
€ 5.50
39062E
390621389
ref: 39062E
HOSE-COOLING
€ 16.00
39062F
390621455
ref: 39062F
HOSE-COOLING,HEAD-RAD
€ 33.50
39062G
390621464
ref: 39062G
HOSE-COOLING
€ 25.50
39062H
390621465
ref: 39062H
HOSE-COOLING
€ 6.00
39062I
390621495
ref: 39062I
HOSE-COOLING,5.5X10.5
€ 14.50
39192
391921016
ref: 39192
PIPE-WATER
€ 22.00
43078
430781117
ref: 43078
RESERVOIR
€ 42.00
49019
490191068
ref: 49019
FILTER-FUEL
€ 4.00
49044
490441063
ref: 49044
PUMP-WATER
€ 238.00
49054
490541058
ref: 49054
THERMOSTAT
€ 41.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49116
491161081
ref: 49116
VALVE-ASSY
€ 85.00
59502
595021091
ref: 59502
FAN-ASSY
€ 509.00
92001
920011950
ref: 92001
BOLT,6X16
€ 2.50
92002
920021086
ref: 92002
BOLT,6X25
€ 3.50
92002A
920021392
ref: 92002A
BOLT,6X22
€ 3.00
92002B
920021622
ref: 92002B
BOLT,6X30
€ 3.50
92005
920051169
ref: 92005
FITTING
€ 22.00
92005A
920051170
ref: 92005A
FITTING
€ 23.50
92009
920091436
ref: 92009
SCREW
€ 2.00
92009A
920091644
ref: 92009A
SCREW,6X65
€ 2.50
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
92022165
ref: 92022
WASHER-PLAIN
€ 1.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0650
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
92022A
920221976
ref: 92022A
WASHER,6.2X6.2X1.0
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371877
ref: 92037B
CLAMP
€ 3.00
92055
92055051
ref: 92055
RING-O,20MM
€ 3.00
92055A
920551378
ref: 92055A
RING-O,WATER PUMP
€ 5.00
92055B
920551402
ref: 92055B
RING-O
€ 5.00
92055C
920551446
ref: 92055C
RING-O,WATER PUMP
€ 8.00
92075
920751901
ref: 92075
DAMPER
€ 2.00
92093
920931267
ref: 92093
SEAL
€ 5.50
92093A
920931276
ref: 92093A
SEAL
€ 8.00
92143
921431683
ref: 92143
COLLAR,L=12
€ 4.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92170
921701118
ref: 92170
CLAMP
€ 5.00
92170A
921701201
ref: 92170A
CLAMP
€ 3.50
92170B
921701284
ref: 92170B
CLAMP,CABLE
€ 7.50
92170C
921701285
ref: 92170C
CLAMP,COOLING HOSE
€ 13.00
92170D
921701286
ref: 92170D
CLAMP
€ 13.00
92170E
921702042
ref: 92170E
CLAMP
€ 1.00
