SUSPENSION

ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

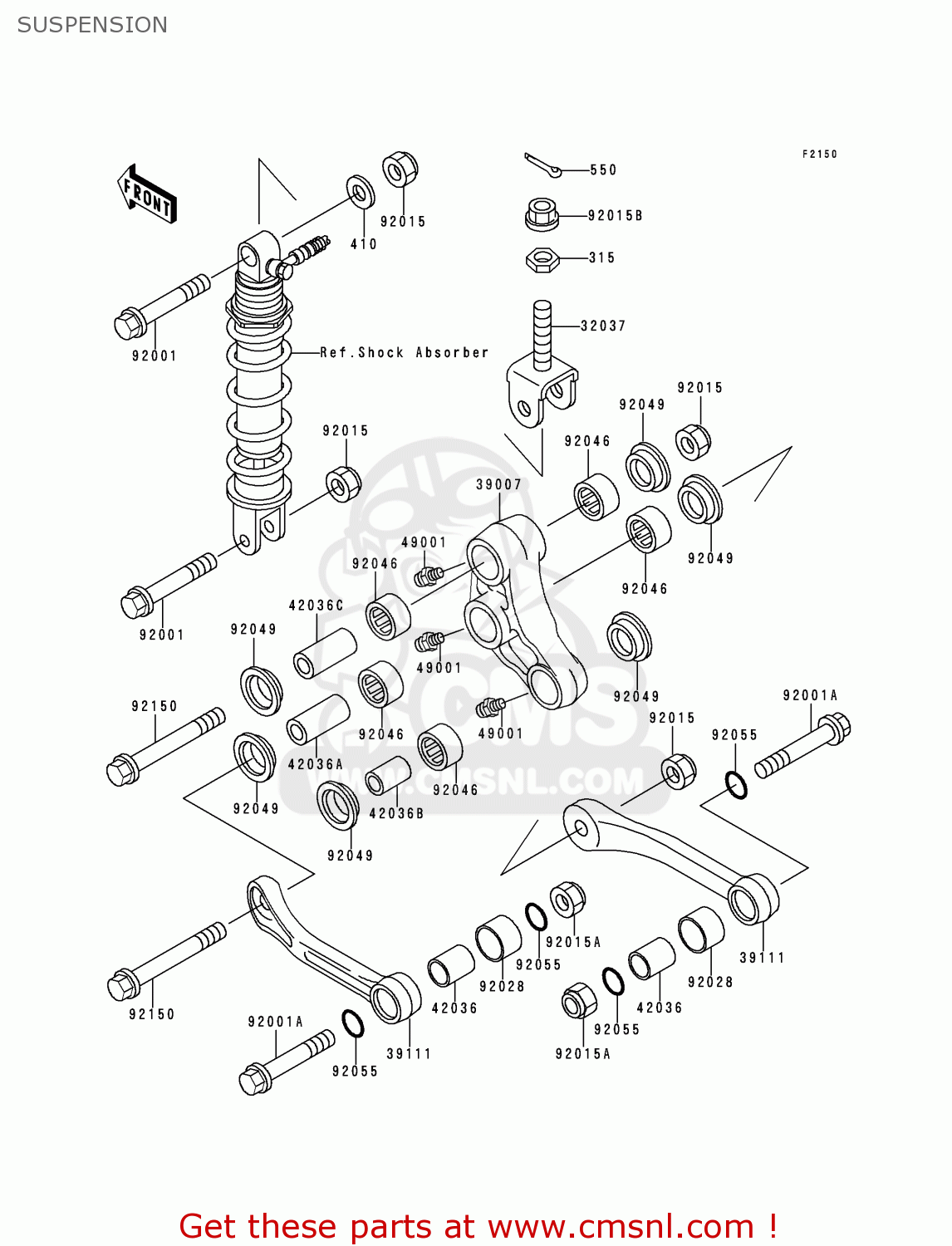

Suspension diagram ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

SUSPENSION ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
SUSPENSION ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
SUSPENSION ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
prices are in EUR
ref
part #
description
quantity
315
315B1600
ref: 315
NUT-HEX-FINE,16MM
315B1600
€ 2.50
410
410F1200
ref: 410
410F1200
550
550D4025
ref: 550
PIN,COTTER,4X25
550D4025
€ 0.50
32037
320371514
ref: 32037
BRACKET-SHOCKABSORBER
€ 45.50
39007
390071202
ref: 39007
ARM-SUSP,UNI TRAK
€ 132.50
39111
391111087
ref: 39111
ROD-TIE
€ 82.50
42036
420361076
ref: 42036
SLEEVE,12.1X20X22
420361076
€ 12.00
42036A
420361111
ref: 42036A
SLEEVE,12.5X20X50
420361111
€ 15.00
42036B
420361234
ref: 42036B
SLEEVE,12.1X20X30
420361234
€ 10.50
42036C
420361235
ref: 42036C
SLEEVE,12.1X20X47
420361235
€ 12.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
490011051
€ 2.00
92001
920011938
ref: 92001
BOLT,12X55
920011938
€ 8.50
92001A
920011939
ref: 92001A
BOLT,12X45
920011939
€ 5.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
920151190
€ 4.50
92015A
920151375
ref: 92015A
NUT,12MM
€ 4.50
92015B
920151881
ref: 92015B
NUT,FLANGED,16MM
920151881
€ 16.50
92028
920281599
ref: 92028
BUSHING
920281599
€ 18.00
92046
920461112
ref: 92046
BEARING-NEEDLE,BM2027
920461112
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92055
920551215
ref: 92055
RING-O,19.8X2.2
920551215
€ 2.50
92150
921501100
ref: 92150
BOLT,FLANGED,12X77
921501100
€ 7.00
