CRANKCASE BOLT PATTERN

ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

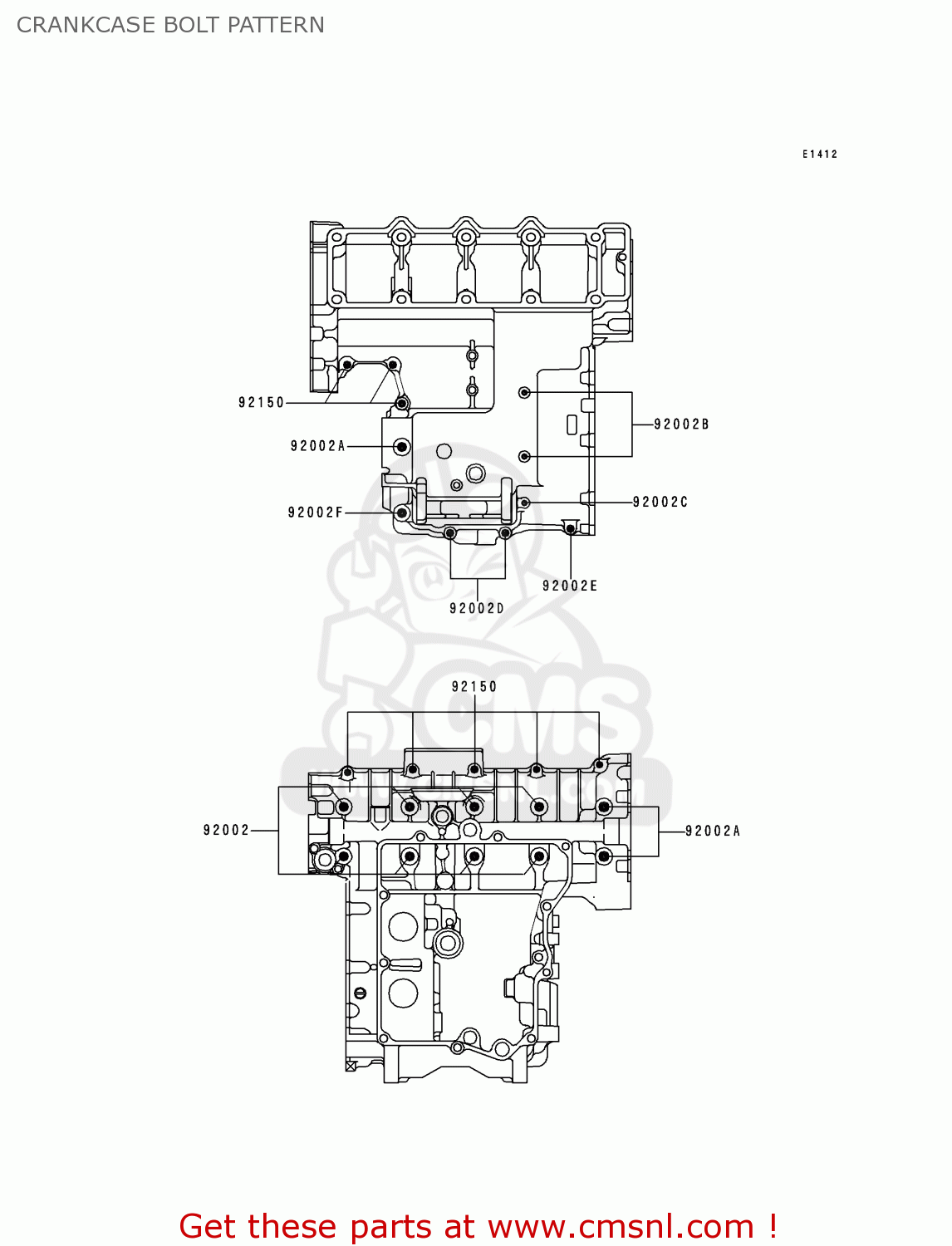

Crankcase bolt pattern diagram ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

CRANKCASE BOLT PATTERN ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

CRANKCASE BOLT PATTERN ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

prices are in EUR

ref

part #

description

quantity

92002

920021057
ref: 92002

BOLT,8X90

€ 6.50

92002A

920021077
ref: 92002A

BOLT,8X95

€ 7.50

92002B

920021078
ref: 92002B

BOLT,6X95

€ 2.50

92002C

920021079
ref: 92002C

BOLT,6X50

€ 4.00

92002D

920021140
ref: 92002D

BOLT,6X65

€ 2.50

92002E

920021306
ref: 92002E

BOLT

€ 3.50

92002F

920021329
ref: 92002F

BOLT,8X72

€ 6.50

92150

921501794
ref: 92150

BOLT, 6X40

€ 1.50
