RADIATOR

ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

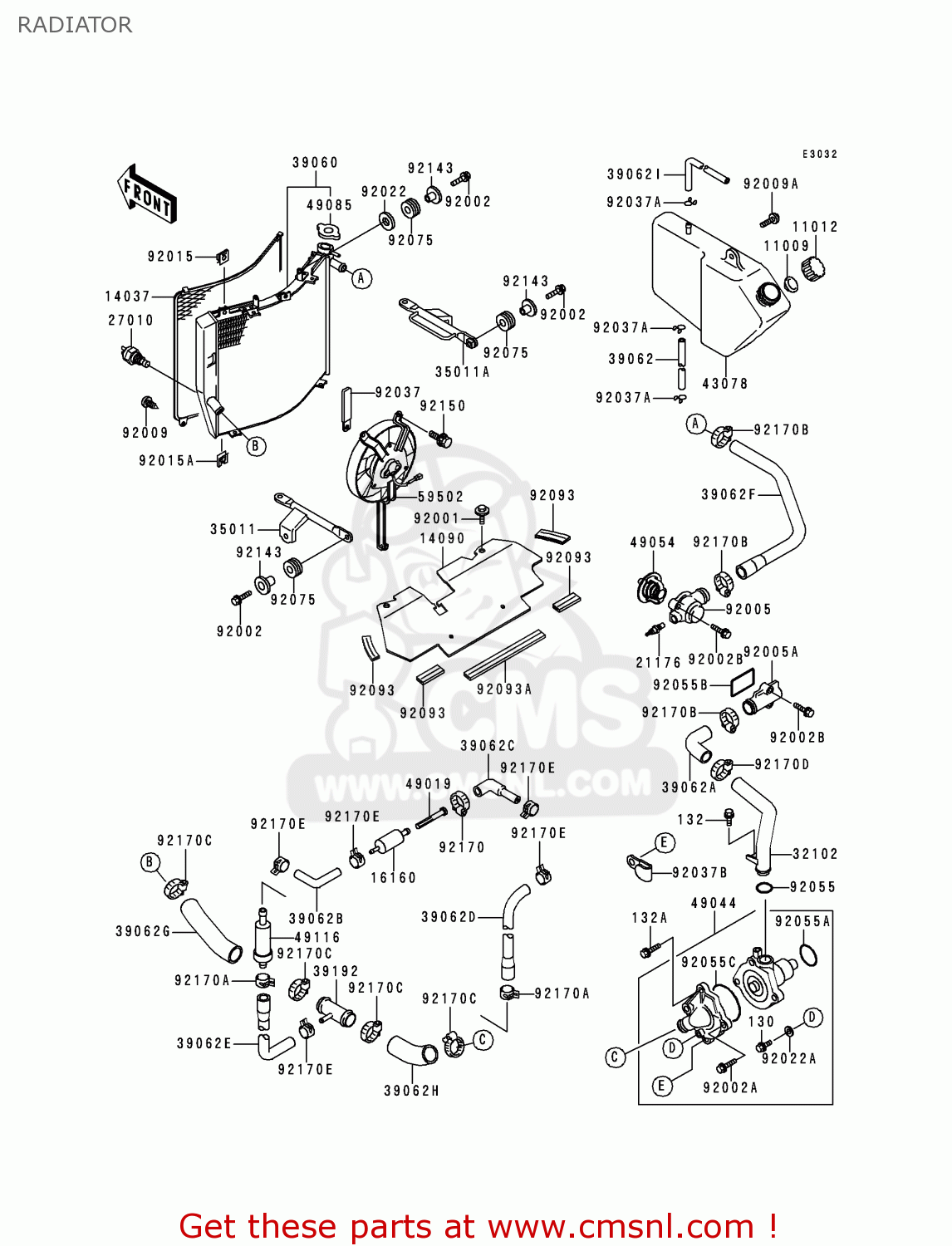

Radiator diagram ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

RADIATOR ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
RADIATOR ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
RADIATOR ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037
140371134
ref: 14037
SCREEN,RADIATOR
€ 61.50
14090
140901063
ref: 14090
COVER,HEAT
140901063
€ 15.50
16160
161601151
ref: 16160
BODY,FILTER
161601151
€ 6.50
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101317
ref: 27010
SWITCH,FAN
270101317
€ 105.50
32102
321021927
ref: 32102
PIPE
€ 21.00
35011
350111584
ref: 35011
STAY,LH
350111584
€ 22.50
35011A
350111585
ref: 35011A
STAY,RH
350111585
€ 20.00
39060
390601102
ref: 39060
RADIATOR
€ 576.50
39062
390621007
ref: 39062
HOSE-COOLING,RESERVIR
€ 25.00
39062A
390621282
ref: 39062A
HOSE-COOLING,PUMP-CYL
€ 10.00
39062B
390621333
ref: 39062B
HOSE-COOLING
€ 5.50
39062C
390621335
ref: 39062C
HOSE-COOLING
390621335
€ 4.50
39062D
390621380
ref: 39062D
HOSE-COOLING,VALVE-PU
390621380
€ 5.50
39062E
390621389
ref: 39062E
HOSE-COOLING
€ 16.00
39062F
390621455
ref: 39062F
HOSE-COOLING,HEAD-RAD
390621455
€ 33.50
39062G
390621464
ref: 39062G
HOSE-COOLING
390621464
€ 25.50
39062H
390621465
ref: 39062H
HOSE-COOLING
390621465
€ 6.00
39062I
390621495
ref: 39062I
HOSE-COOLING,5.5X10.5
€ 14.50
39192
391921016
ref: 39192
PIPE-WATER
€ 22.00
43078
430781117
ref: 43078
RESERVOIR
430781117
€ 42.00
49019
490191068
ref: 49019
FILTER-FUEL
490191068
€ 4.00
49044
490441063
ref: 49044
PUMP-WATER
490441063
€ 238.00
49054
490541058
ref: 49054
THERMOSTAT
490541058
€ 41.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
49116
491161081
ref: 49116
VALVE-ASSY
491161081
€ 85.00
59502
595021091
ref: 59502
FAN-ASSY
595021091
€ 509.00
92001
920011950
ref: 92001
BOLT,6X16
920011950
€ 2.50
92002
920021086
ref: 92002
BOLT,6X25
920021086
€ 3.50
92002A
920021392
ref: 92002A
BOLT,6X22
920021392
€ 3.00
92002B
920021622
ref: 92002B
BOLT,6X30
920021622
€ 3.50
92005
920051169
ref: 92005
FITTING
€ 22.00
92005A
920051170
ref: 92005A
FITTING
€ 23.50
92009
920091436
ref: 92009
SCREW
920091436
€ 2.00
92009A
920091644
ref: 92009A
SCREW,6X65
920091644
€ 2.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
92022165
ref: 92022
WASHER-PLAIN
€ 1.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132A
132J0650
ref: 132A
BOLT-FLANGED-SMALL
132J0650
€ 3.00
92022A
920221976
ref: 92022A
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371877
ref: 92037B
CLAMP
920371877
€ 3.00
92055
92055051
ref: 92055
RING-O,20MM
92055051
€ 3.00
92055A
920551378
ref: 92055A
RING-O,WATER PUMP
920551378
€ 5.00
92055B
920551402
ref: 92055B
RING-O
920551402
€ 5.00
92055C
920551446
ref: 92055C
RING-O,WATER PUMP
920551446
€ 8.00
92075
920751901
ref: 92075
DAMPER
920751901
€ 2.00
92093
920931267
ref: 92093
SEAL
920931267
€ 5.50
92093A
920931276
ref: 92093A
SEAL
920931276
€ 8.00
92143
921431683
ref: 92143
COLLAR,L=12
921431683
€ 4.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92170
921701118
ref: 92170
CLAMP
921701118
€ 5.00
92170A
921701201
ref: 92170A
CLAMP
921701201
€ 3.50
92170B
921701284
ref: 92170B
CLAMP,CABLE
921701284
€ 7.50
92170C
921701285
ref: 92170C
CLAMP,COOLING HOSE
921701285
€ 13.00
92170D
921701286
ref: 92170D
CLAMP
921701286
€ 13.00
92170E
921702042
ref: 92170E
CLAMP
921702042
€ 1.00
