IGNITION SWITCH

ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

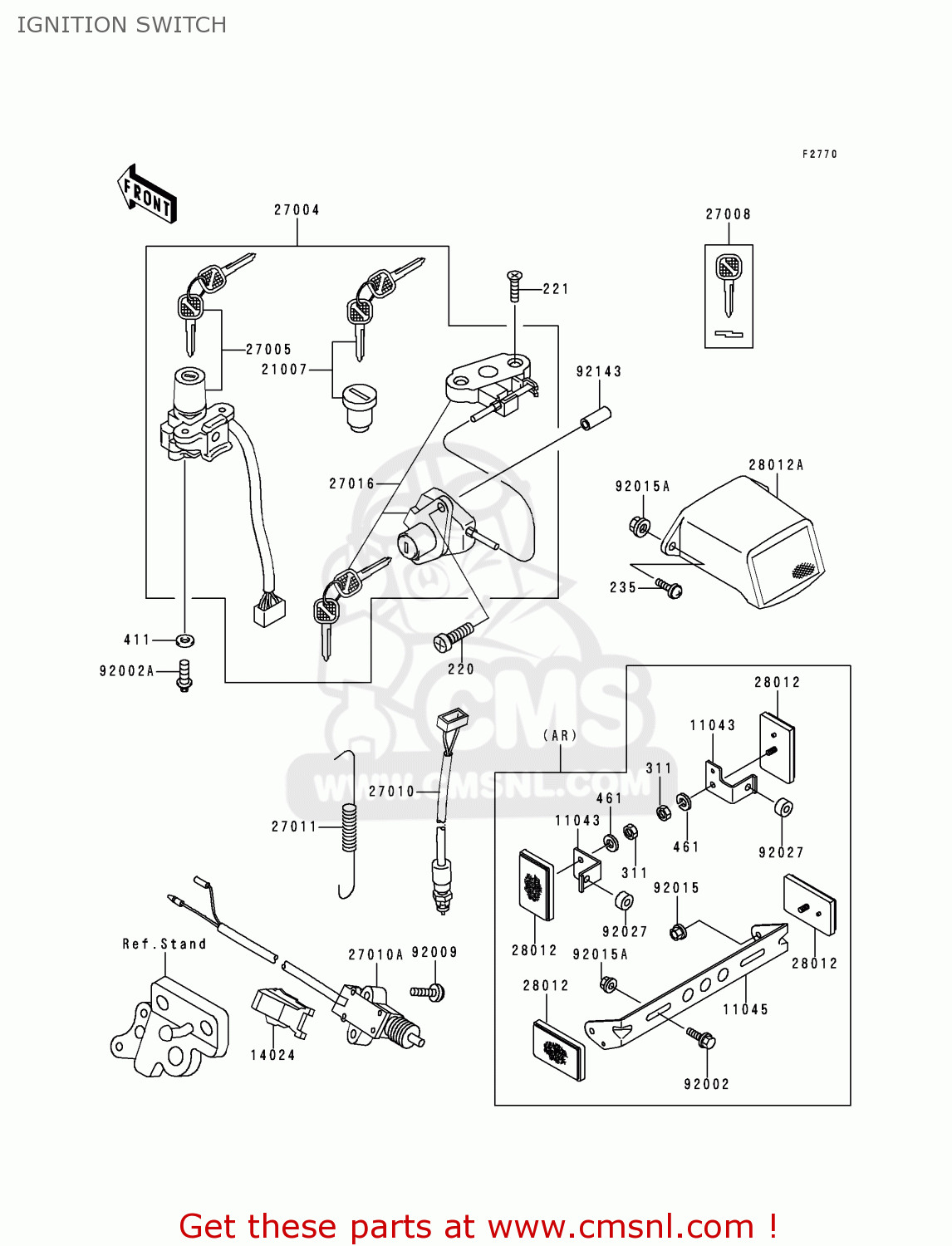

Ignition switch diagram ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

IGNITION SWITCH ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
IGNITION SWITCH ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
IGNITION SWITCH ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT
prices are in EUR
ref
part #
description
quantity
220
220B0630
ref: 220
SCREW-PAN HEAD,6X30
220B0630
€ 2.50
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
221B0620
€ 0.50
235
235C0635
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
311
311B0500
ref: 311
AR
NUT-HEX
311B0500
€ 0.50
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
461
461F0500
ref: 461
AR
WASHER-SPRING,5MM
461F0500
€ 0.50
11043
110431362
ref: 11043
AR
BRACKET,REFLECTOR,FR
110431362
€ 9.00
11045
110451371
ref: 11045
AR
BRACKET,REFLECTOR
€ 8.00
14024
140241532
ref: 14024
COVER,SIDE STAND SWIT
140241532
€ 5.00
21007
210075016
ref: 21007
ROTOR,LOCK,TANK CAP
€ 42.00
27004
270045415
ref: 27004
SWITCH-ASSY
€ 268.00
27005
270051161
ref: 27005
SWITCH-ASSY-IGNITION
270051161
€ 175.00
27008
270081105
ref: 27008
KEY-LOCK,BLANK
270081105
€ 12.50
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
270101093
€ 20.00
27010A
270101258
ref: 27010A
SWITCH,SIDE STAND
270101258
€ 49.50
27011
27011011
ref: 27011
SPRING,BRAKE LAMP SW
27011011
€ 5.50
27016
270165185
ref: 27016
LOCK-ASSY,SEAT
270165185
€ 51.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121066
ref: 28012A
REFLECTOR-REFLEX,RR
280121066
€ 23.00
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92009
920091459
ref: 92009
SCREW
920091459
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
FGFRITNLUK
NUT,FLANGED,6MM
920151367
€ 0.50
92015A
920151367
ref: 92015A
AR
NUT,FLANGED,6MM
920151367
€ 0.50
92027
92027164
ref: 92027
AR
COLLAR,6.3X10X5
92027164
€ 3.50
92143
921431408
ref: 92143
COLLAR,6.5X9.5X17
921431408
€ 3.00
