FRAME FITTINGS

ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

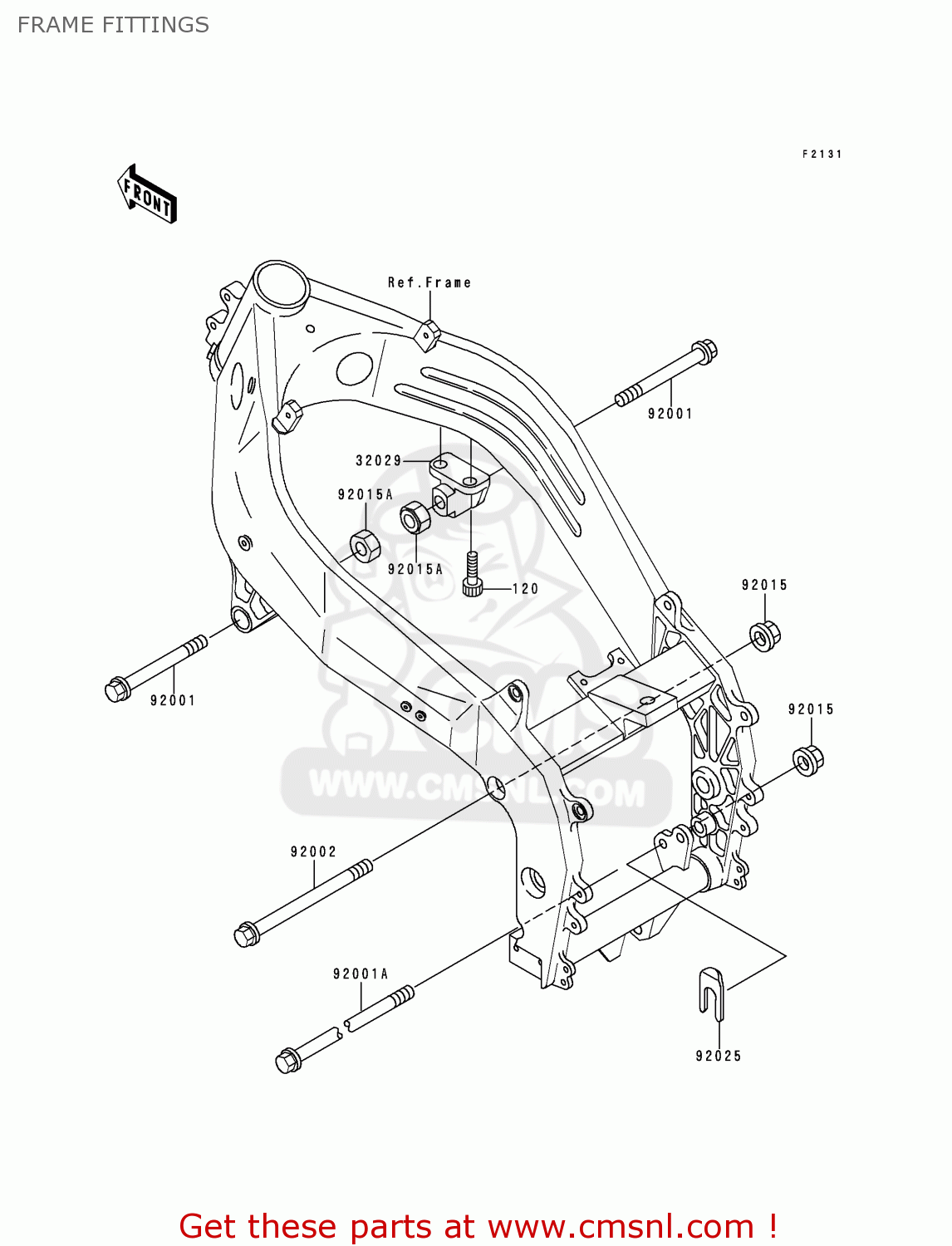

Frame fittings diagram ZX400L5 ZXR400 1995 UNITED KINGDOM FR NL AR FG IT

prices are in EUR

ref

part #

description

quantity

120

120P0830
ref: 120

BOLT,SOCKET,8X30

€ 2.00

32029

320291837KF
ref: 32029

BRACKET-ENGINE,RH,SIL

€ 27.50

92001

920011619
ref: 92001

BOLT,FLANGED,10X85

€ 5.50

92001A

920011621
ref: 92001A

BOLT,FLANGED,10X180

€ 15.00

92002

920021087
ref: 92002

BOLT,10X130

€ 6.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151962
ref: 92015A

NUT

€ 2.00

92025

92025053
ref: 92025

SHIM,T=0.5

€ 3.00
