TURN SIGNALS

ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

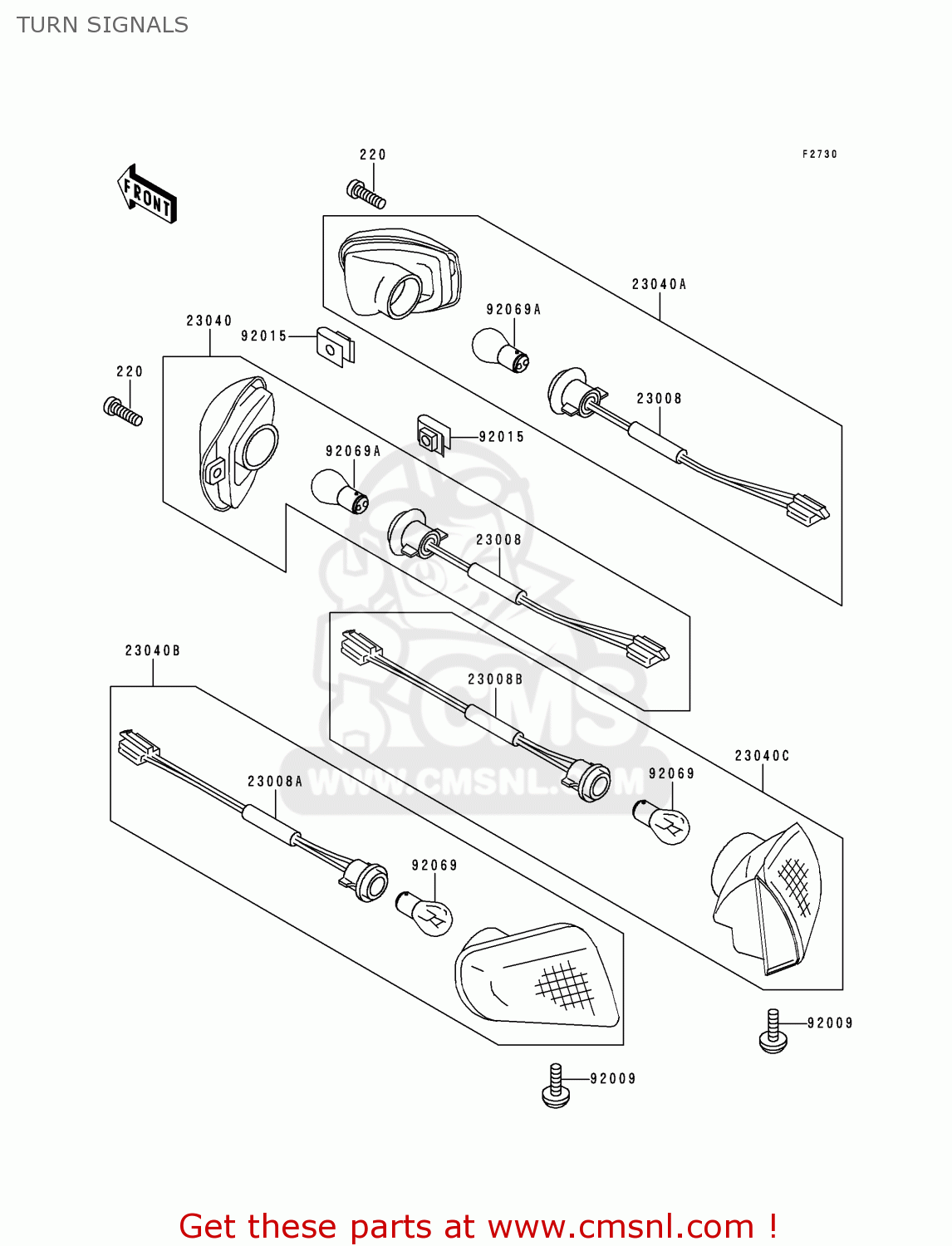

Turn signals diagram ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

220

220D0425
ref: 220

SCREW-PAN-CROS,4X25

€ 0.50

23008

230081262
ref: 23008

SOCKET-ASSY,SIGNAL LA

€ 17.00

23008A

230081351
ref: 23008A

SOCKET-ASSY,SIGNAL LA

€ 12.50

23008B

230081352
ref: 23008B

SOCKET-ASSY,SIGNAL LA

€ 12.50

23040

230401245
ref: 23040

LAMP-SIGNAL,FR,LH

€ 55.00

23040A

230401246
ref: 23040A

LAMP-SIGNAL,FR,RH

€ 55.50

23040B

230401253
ref: 23040B

LAMP-SIGNAL,RR,LH

€ 34.00

23040C

230401254
ref: 23040C

LAMP-SIGNAL,RR,RH

€ 56.00

92009

920091197
ref: 92009

SCREW

€ 2.50

92015

920151834
ref: 92015

NUT,4MM

€ 4.50

92069

92069055
ref: 92069

BULB 12V 32CP

€ 4.50

92069A

92069060
ref: 92069A

BULB.12V 23/8W

€ 5.00
