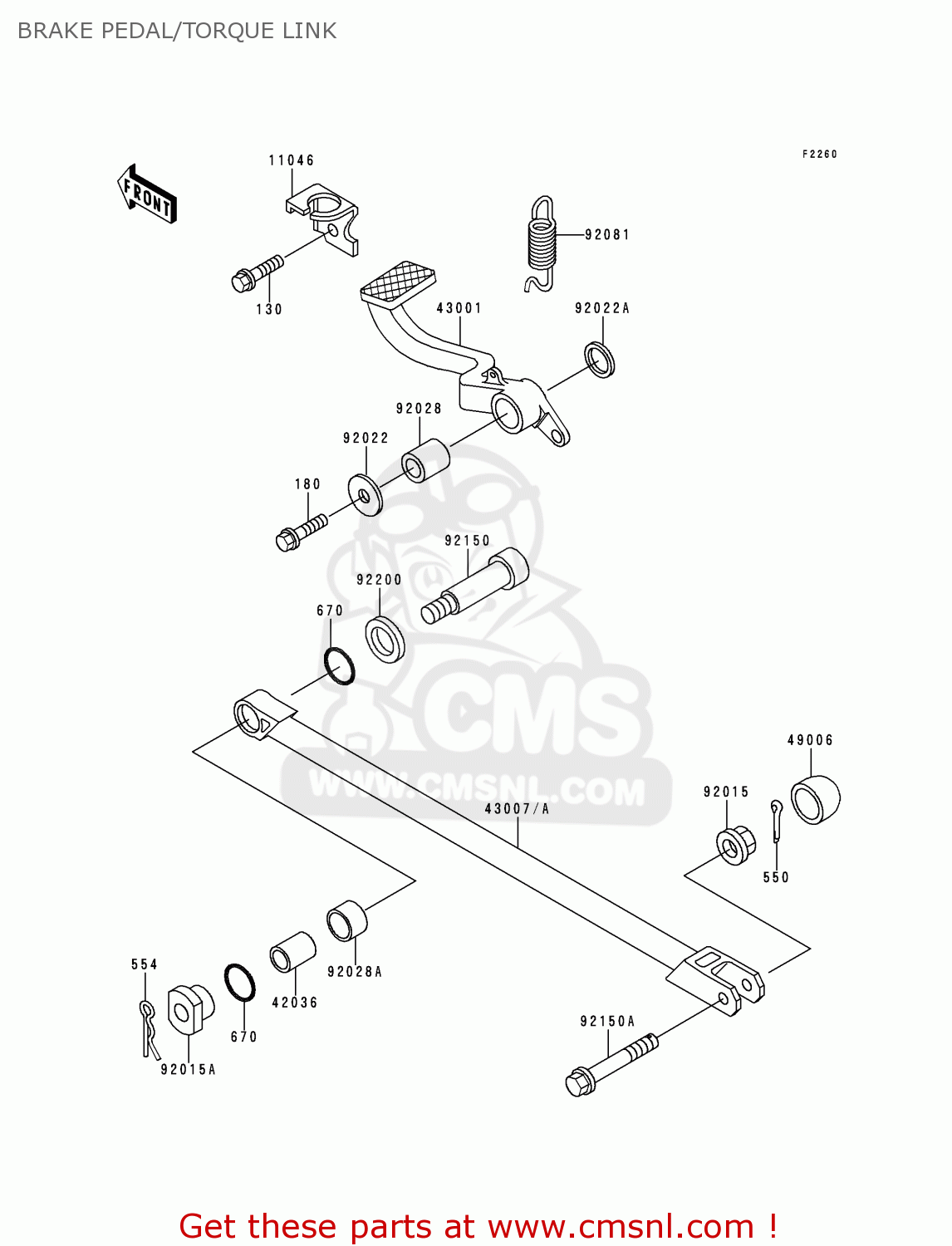

BRAKE PEDAL/TORQUE LINK

ref

part #

description

quantity

130

130H0610
ref: 130

BOLT-FLANGED,6X10

€ 0.50

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

670

670B2016
ref: 670

O RING,16MM

€ 1.00

11046

110461252
ref: 11046

BRACKET,REAR BRAKE SW

€ 5.50

42036

420361242
ref: 42036

SLEEVE,10.1X16X20

€ 9.50

43001

430011292
ref: 43001

LEVER-BRAKE,PEDAL

€ 41.50

43007

430071165GD
ref: 43007
CN

ROD-TORQUE,G.GRAY

€ 76.00

43007A

430071165VZ
ref: 43007A
CAUS

TORQUE ROD,SILVER #35

€ 44.00

49006

490061218
ref: 49006

BOOT

€ 3.50

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151747
ref: 92015A

NUT,8MM

€ 12.00

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

92022326
ref: 92022A

WASHER,15.3X24X1

€ 2.50

92028

920281282
ref: 92028

BUSHING,BRAKE PEDAL

€ 9.50

92028A

920281468
ref: 92028A

BUSHING

€ 6.00

92081

920811833
ref: 92081

SPRING,BRAKE PEDAL

€ 7.00

92150

921501167
ref: 92150

BOLT,SOCKET,8X61

€ 12.00

92150A

921501539
ref: 92150A

BOLT,FLANGED,8X47

€ 6.50

92200

922001313
ref: 92200

WASHER,10MM

€ 3.00
