HEADLIGHT(S)

ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

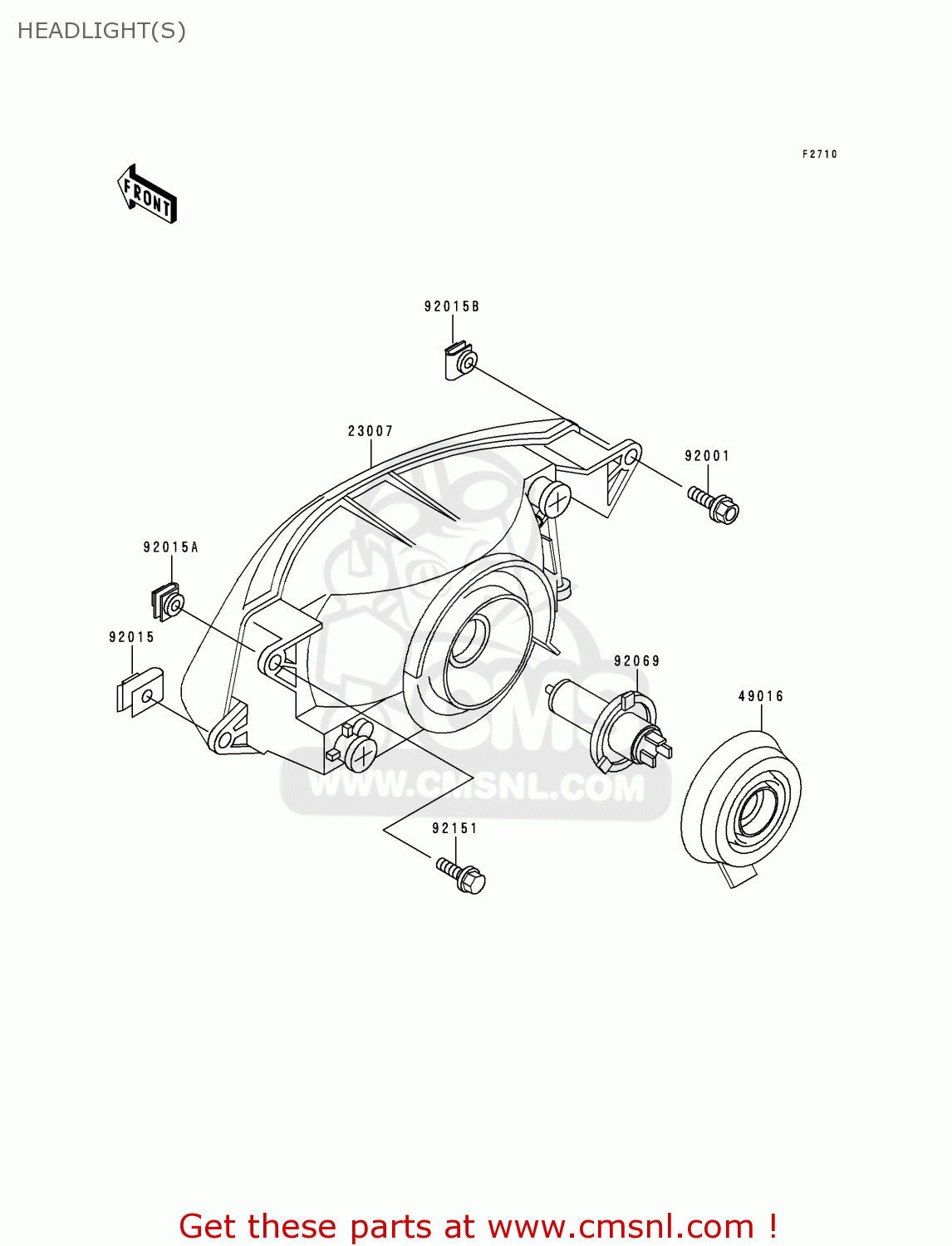

Headlight(s) diagram ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

HEADLIGHT(S) ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

HEADLIGHT(S) ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

23007

230071297
ref: 23007

HEADLAMP LENS,COMPLETE

€ 245.00

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92001

920011776
ref: 92001

BOLT,6X30

€ 3.00

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92015A

920151788
ref: 92015A

NUT,CLIP,6MM

€ 5.00

92015B

920151917
ref: 92015B

NUT,CLIP,6MM

€ 4.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92151

921511241
ref: 92151

BOLT

€ 3.00
