IGNITION SYSTEM

ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

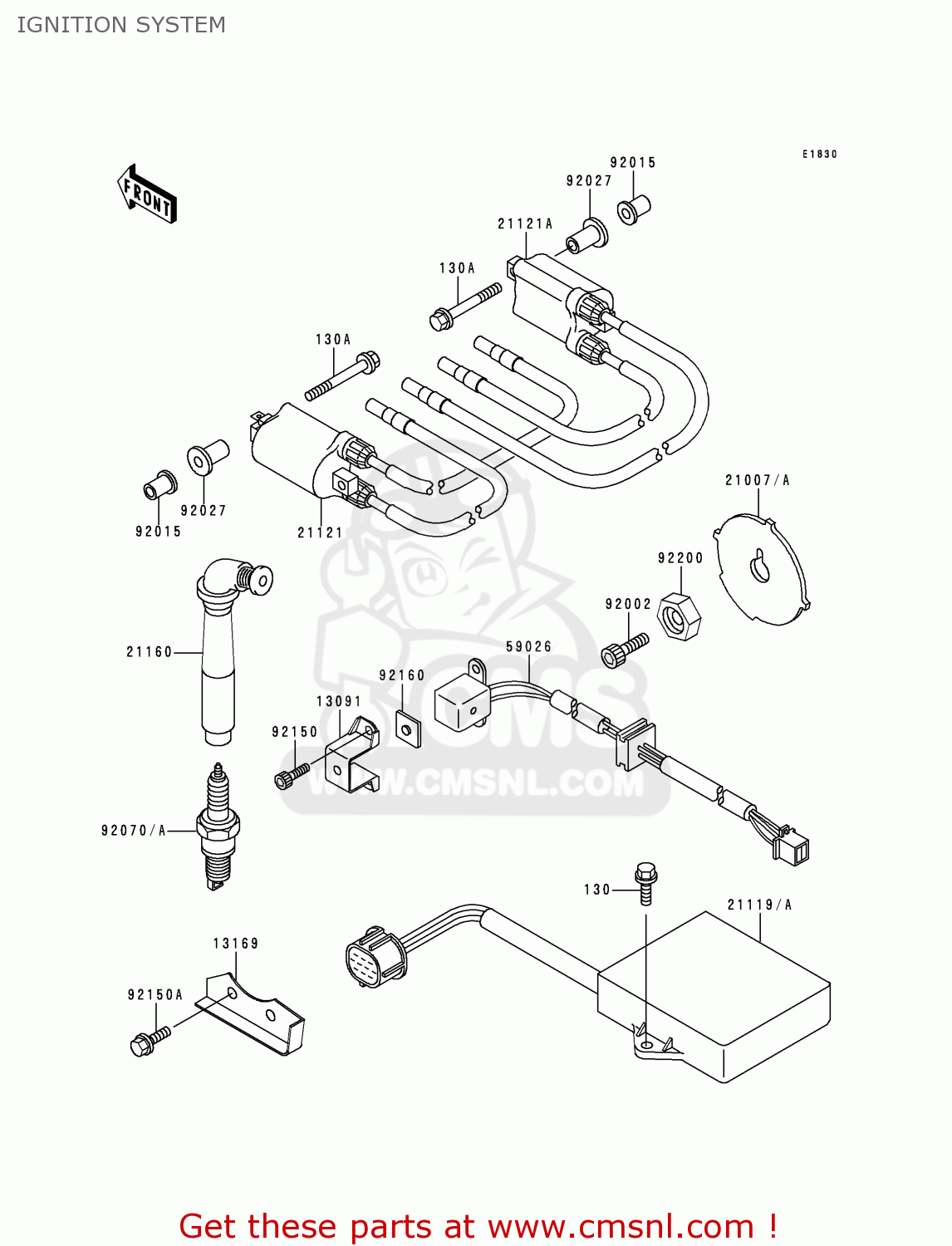

Ignition system diagram ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

IGNITION SYSTEM ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

IGNITION SYSTEM ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

130A

130G0645
ref: 130A

BOLT,FLANGED,6X45

€ 0.50

13091

130911562
ref: 13091

HOLDER

€ 5.50

13169

131691748
ref: 13169

PLATE,CHAIN GUIDE

€ 10.50

21007A

210071214
ref: 21007A

ROTOR,PULSING

€ 23.00

21119A

211191386
ref: 21119A

IGNITER

€ 796.50

21121

211211220
ref: 21121

COIL-IGNITION,#1&#4

€ 161.50

21121A

211211221
ref: 21121A

COIL-IGNITION,#2&#3

€ 170.00

21160

211601087
ref: 21160

CAP-ASSY-PLUG

€ 30.50

59026

590261118
ref: 59026

COIL-PULSING

€ 117.00

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92015

920151700A
ref: 92015

NUT

€ 5.50

92027

92027195
ref: 92027

COLLAR

€ 4.00

92070

920701143
ref: 92070

CR9E (NGK SPARKPLUG)

€ 8.50

92070A

ref: 92070A

92150

921501180
ref: 92150

BOLT

€ 2.50

92150A

921501841
ref: 92150A

BOLT,6X12

€ 3.50

92160

921601091
ref: 92160

DAMPER

€ 3.00

92200

922001173
ref: 92200

WASHER,ROTOR

€ 6.50
