BATTERY CASE

ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

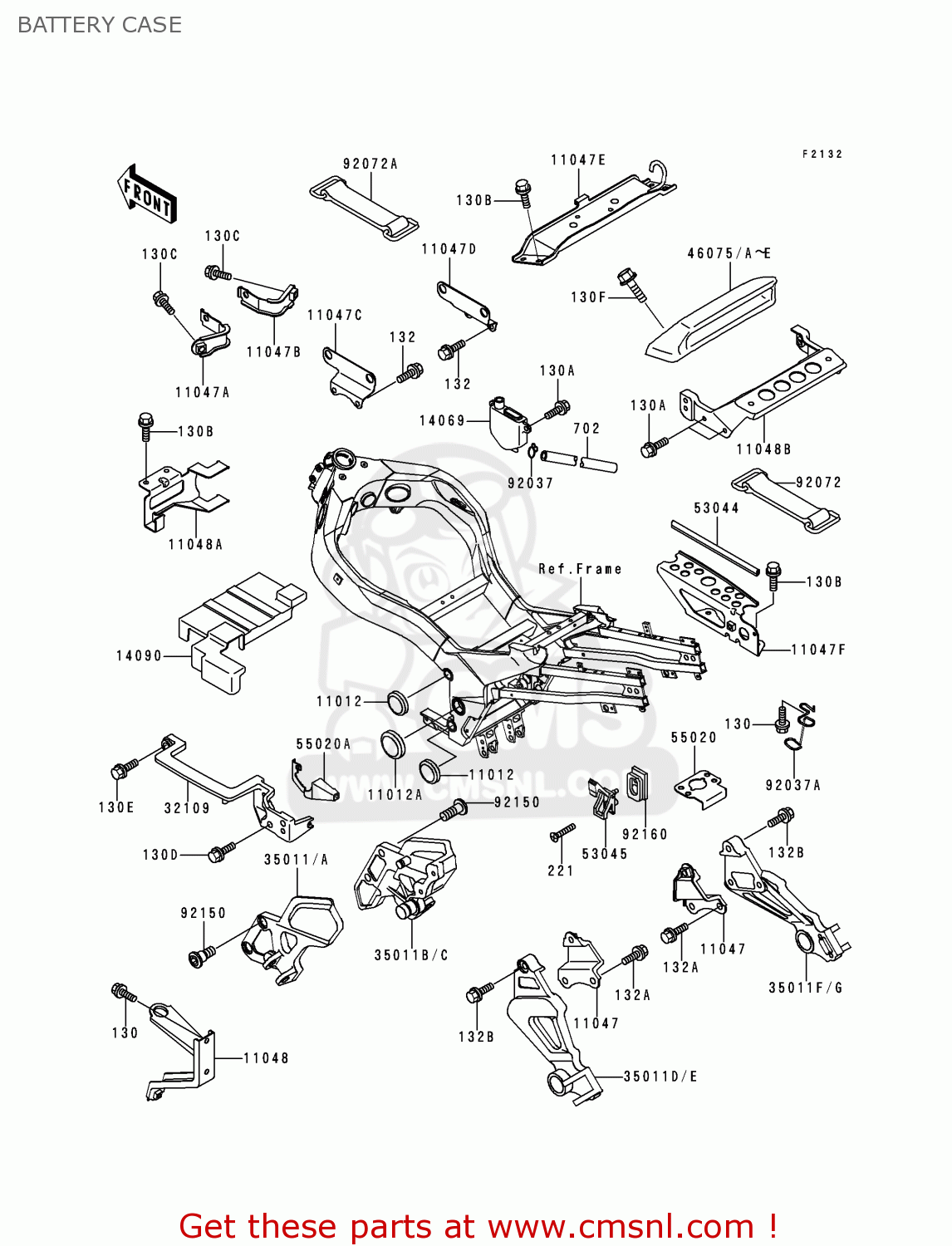

Battery case diagram ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA

BATTERY CASE ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA
BATTERY CASE ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA
BATTERY CASE ZX1100D5 NINJAZX11 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121460
ref: 11012
CAP
110121460
€ 7.50
11012A
110121657
ref: 11012A
CAP
110121657
€ 11.00
11047
110471878
ref: 11047
BRACKET,REAR STAY
110471878
€ 14.50
11047A
110471931
ref: 11047A
BRACKET,RADIATOR,UPP,
110471931
€ 9.50
11047B
110471932
ref: 11047B
BRACKET,RADIATOR,UPP,
€ 9.50
11047C
110471933
ref: 11047C
BRACKET,IGNITION COIL
110471933
€ 8.50
11047D
110471934
ref: 11047D
BRACKET,IGNITION COIL
110471934
€ 16.00
11047E
110471961
ref: 11047E
BRACKET,SEAT LOCK
110471961
€ 33.00
11047F
110471962
ref: 11047F
BRACKET,HELMET LOCK
110471962
€ 19.50
11048
110481169
ref: 11048
BRACKET,OIL COOLER&RA
110481169
€ 23.50
11048A
110481180
ref: 11048A
BRACKET,FUEL PUMP
110481180
€ 15.00
11048B
110481325
ref: 11048B
BRACKET,TAIL GRIP
110481325
€ 39.50
14069
140691054
ref: 14069
BREATHER
140691054
€ 16.50
14090
140901305
ref: 14090
COVER,BATTERY
140901305
€ 15.00
32109
321091233
ref: 32109
GRIP-FRAME
€ 64.00
35011
350111635GD
ref: 35011
CN
STAY,FR,LH,G.GRAY
350111635GD
€ 76.00
35011A
350111635VZ
ref: 35011A
CAUS
STAY,FRONT,LH,SILVER #35
€ 45.00
35011B
350111636GD
ref: 35011B
CN
STAY,FR,RH,G.GRAY
350111636GD
€ 50.50
35011C
350111636VZ
ref: 35011C
CAUS
STAY,FRONT,RH,SILVER #35
350111636VZ
€ 21.50
35011D
350111640GD
ref: 35011D
CN
STAY,RR,LH,G.GRAY
350111640GD
€ 44.00
35011E
350111640VZ
ref: 35011E
CAUS
STAY,REAR,LH,SILVER #35
€ 45.00
35011F
350111641GD
ref: 35011F
CN
STAY,RR,RH,G.GRAY
350111641GD
€ 84.50
35011G
350111641VZ
ref: 35011G
CAUS
STAY,REAR,RH,SILVER #35
€ 45.00
46075
460751104DS
ref: 46075
CN
GRIP,TAIL,L.W.GREEN
€ 98.50
46075C
4607511041Q
ref: 46075C
CAUS
TAIL GRIP,RED MICA
€ 76.00
46075D
4607511042D
ref: 46075D
CN
GRIP,TAIL,A.RED MICA
€ 110.00
46075E
46075110424
ref: 46075E
CAUS
TAIL GRIP,LUMINOUS WINDSOR GREEN
€ 76.00
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
130B
130J0616
ref: 130B
BOLT-FLANGED,6X16
130J0616
€ 1.50
130C
130J0812
ref: 130C
BOLT-FLANGED
130J0812
€ 0.50
130D
130J0820
ref: 130D
BOLT-FLANGED,8X20
130J0820
€ 0.50
130E
130J0825
ref: 130E
BOLT-FLANGED,8X25,BLA
130J0825
€ 2.00
130F
130J0835
ref: 130F
BOLT-FLANGED,8X35,BLA
€ 2.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
132A
132J0812
ref: 132A
BOLT-FLANGED-SMALL,8X
132J0812
€ 1.50
132B
132J0825
ref: 132B
BOLT-FLANGED-SMALL
132J0825
€ 2.50
221
221E0620
ref: 221
SCREW-CSK-CROS,6X20
221E0620
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
53044
530441270
ref: 53044
TRIM,L=165
€ 3.00
53045
530451057
ref: 53045
HOOK-ASSY,ROPE
530451057
€ 25.00
55020
550201498
ref: 55020
GUARD,SEAT STRIKER
€ 13.00
55020A
550201499
ref: 55020A
GUARD,SEAT LOCK
€ 14.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371875
ref: 92037A
CLAMP,HOSE
920371875
€ 6.50
92072
92072071
ref: 92072
BAND,BATTERY
92072071
€ 6.50
92072A
920721188
ref: 92072A
BAND
920721188
€ 9.50
92150
921501839
ref: 92150
BOLT
921501839
€ 1.50
92160
921601042
ref: 92160
DAMPER,ROPE HOOK
921601042
€ 3.50
