TAIL LAMP

ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST

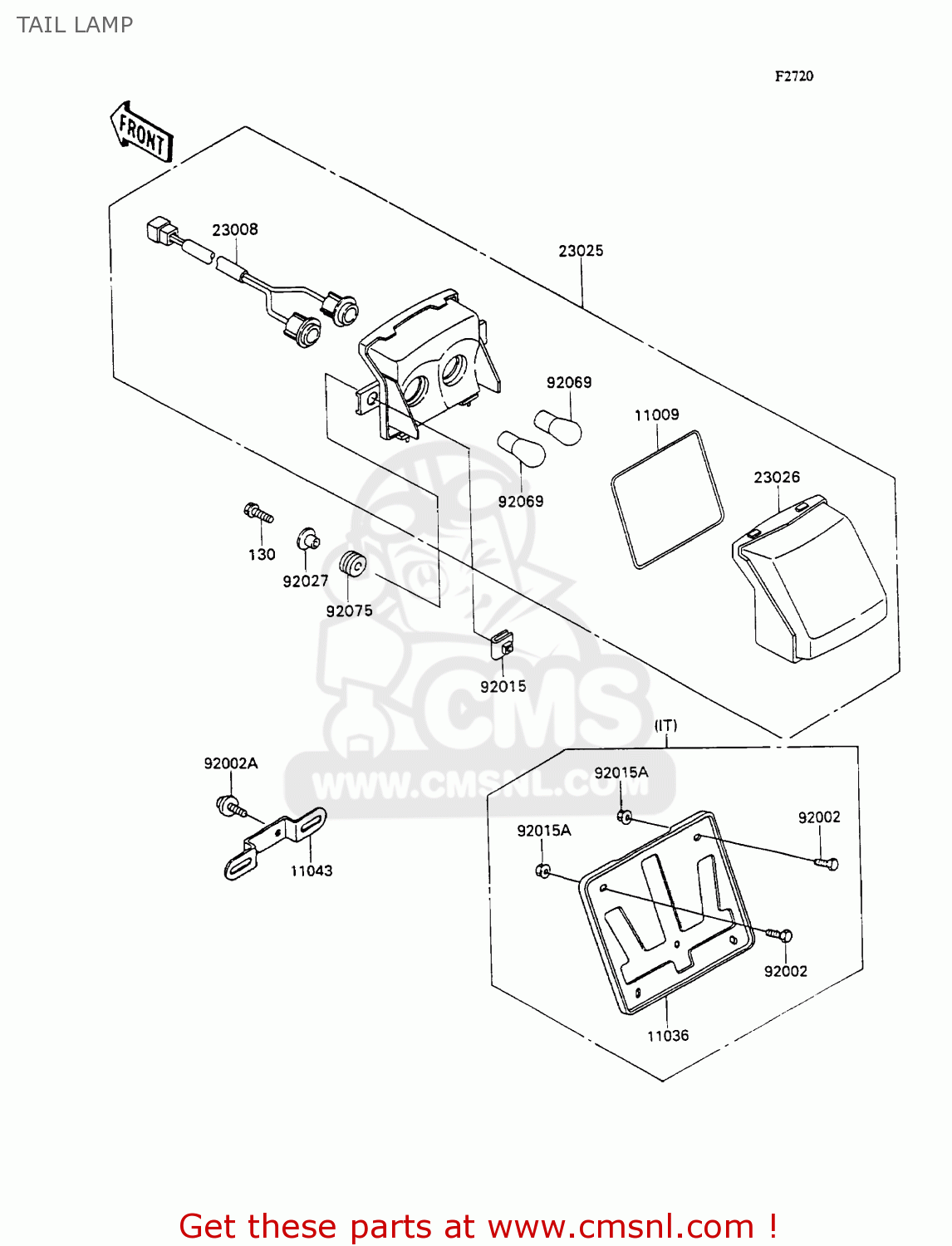

Tail lamp diagram ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130H0625
ref: 130

BOLT-FLANGED,6X25

€ 0.50

11009

110091875
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 7.00

11036

110361820
ref: 11036
IT

BRACKET-A,LICENSE PLA

€ 13.50

11043

110431499
ref: 11043

BRACKET,REFLECTOR

€ 12.00

23008

230081364
ref: 23008

SOCKET-ASSY,TAIL LAMP

€ 32.50

23025

230251205
ref: 23025

LAMP-TAIL

€ 110.50

23026

230261117
ref: 23026

LENS,TAIL LAMP

€ 47.00

92002

920021132
ref: 92002
IT

BOLT,6X12

€ 2.50

92002A

920021351
ref: 92002A

BOLT

€ 2.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92015A

920151193
ref: 92015A
IT

NUT,FLANGED,6MM

€ 0.50

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

920751690
ref: 92075

DAMPER,10X24X12

€ 3.00
