CYLINDER HEAD COVER

ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST

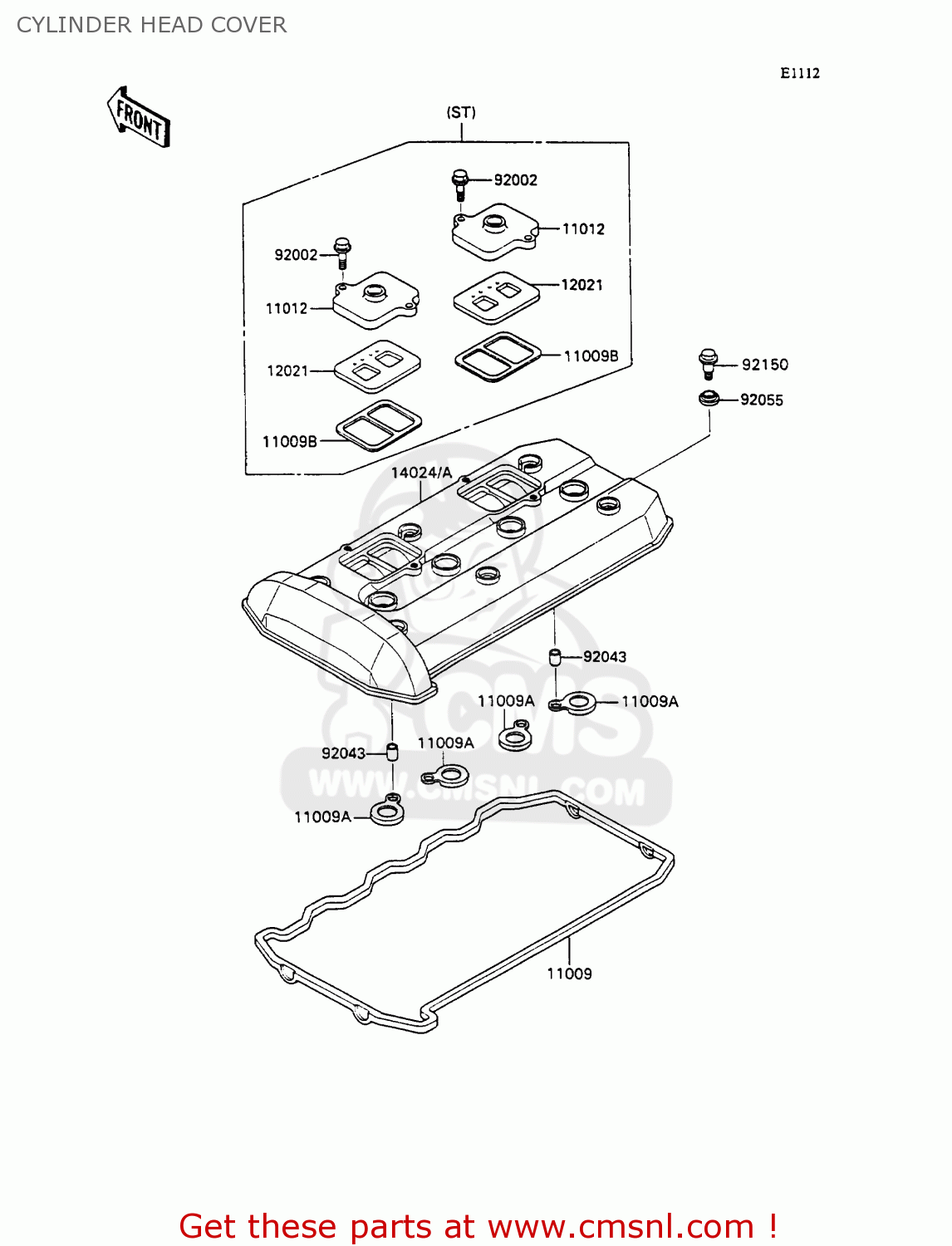

Cylinder head cover diagram ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11009

110091724
ref: 11009

GASKET,HEAD COVER (NAS)

€ 56.00

11009A

110091725
ref: 11009A

GASKET,SPARK PLUG (NAS)

€ 6.00

11009B

110091857
ref: 11009B
ST

GASKET,REED VALVE (NAS)

€ 6.00

11012

110121532
ref: 11012
ST

CAP,REED VALVE

€ 18.00

12021

120211053
ref: 12021
ST

VALVE-ASSY-REED

€ 50.50

14024

140241628
ref: 14024
ST

COVER,HEAD

€ 320.50

14024A

140241645
ref: 14024A
AREUFGFRGRITNRSDSPUK

COVER,HEAD

€ 234.00

92002

920021068
ref: 92002
ST

BOLT,6X22

€ 2.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92055

920551352
ref: 92055

RING-O,HEAD COVER BOL

€ 7.00

92150

921501447
ref: 92150

BOLT

€ 3.00
