Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR(1/4)

ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST

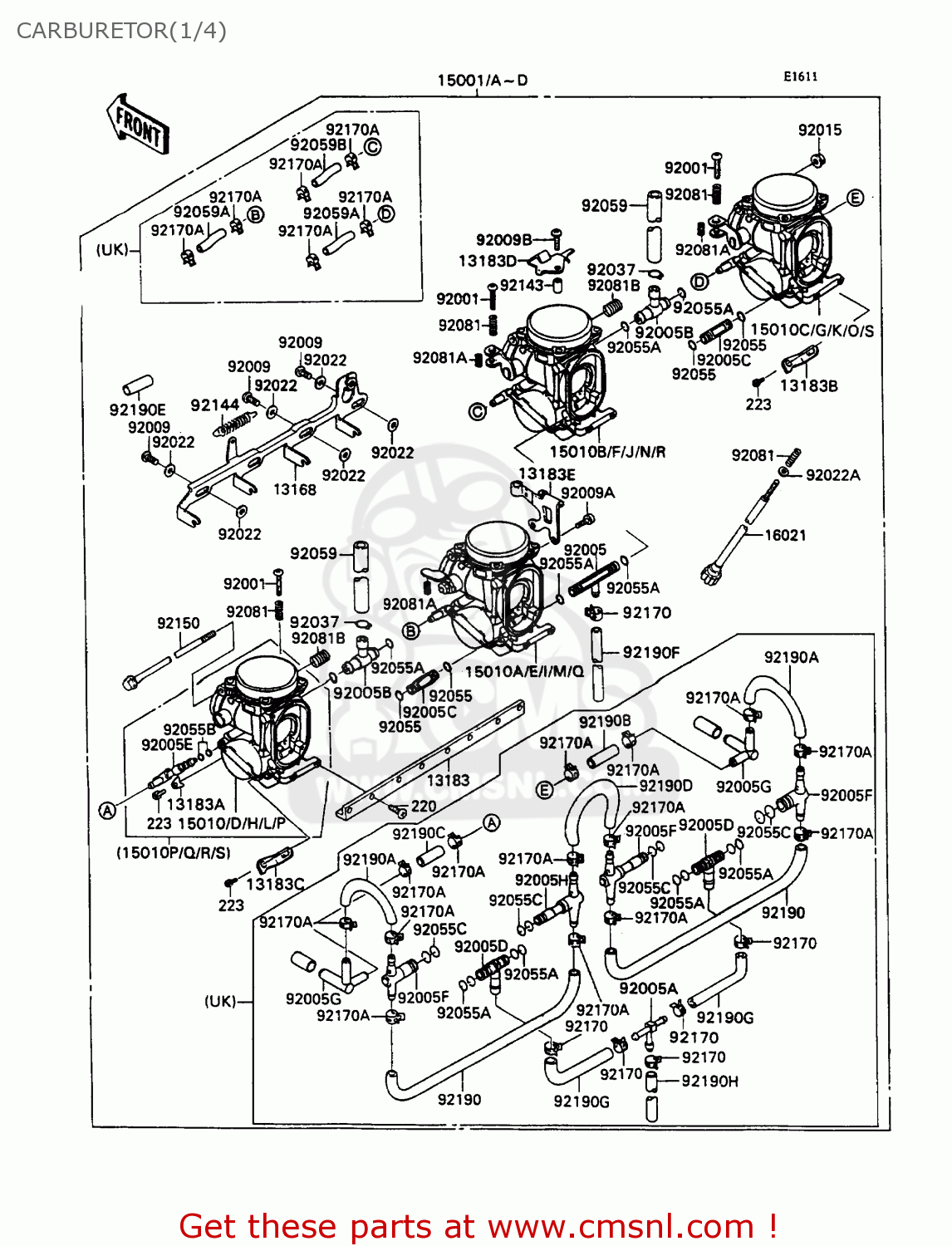

Carburetor(1/4) diagram ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST

CARBURETOR(1/4) ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST
CARBURETOR(1/4) ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST
CARBURETOR(1/4) ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13168
131681405
ref: 13168
LEVER,STARTER
€ 87.00
13183
131831321
ref: 13183
PLATE,CARBURETOR,STAY
131831321
€ 59.50
13183A
131831323
ref: 13183A
UK
PLATE,FITTING
€ 7.50
13183B
131831452
ref: 13183B
UK
PLATE,RH
€ 9.50
13183C
131831453
ref: 13183C
UK
PLATE,LH
€ 9.50
13183D
131831592
ref: 13183D
PLATE,STARTER CABLE
131831592
€ 26.00
13183E
131831606
ref: 13183E
PLATE,THROTTLE CABLE
€ 36.00
15001
150011579
ref: 15001
ST
CARBURETOR-ASSY
€ 2,038.50
15001A
150011580
ref: 15001A
UK
CARBURETOR-ASSY
€ 2,038.50
15001B
150011582
ref: 15001B
ARFG
CARBURETOR-ASSY
€ 2,038.50
15001C
150011584
ref: 15001C
EUFRGRITNRSP
CARBURETOR-ASSY
150011584
€ 2,164.50
15001D
150011657
ref: 15001D
SD
CARBURETOR-ASSY
€ 2,273.00
15010
150101087
ref: 15010
ARFG
CARBURETOR,LH,OUTSIDE
€ 487.00
15010A
150101088
ref: 15010A
ARFG
CARBURETOR,LH,INSIDE
€ 615.50
15010B
150101089
ref: 15010B
ARFG
CARBURETOR,RH,INSIDE
€ 487.00
15010C
150101090
ref: 15010C
ARFG
CARBURETOR,RH,OUTSIDE
€ 487.00
15010D
150101091
ref: 15010D
ST
CARBURETOR,LH,OUTSIDE
€ 487.00
15010E
150101092
ref: 15010E
ST
CARBURETOR,LH,INSIDE
150101092
€ 463.50
15010F
150101093
ref: 15010F
ST
CARBURETOR,RH,INSIDE
150101093
€ 463.50
15010G
150101094
ref: 15010G
ST
CARBURETOR,RH,OUTSIDE
€ 487.00
15010H
150101095
ref: 15010H
SD
CARBURETOR,LH,OUTSIDE
€ 487.00
15010I
150101096
ref: 15010I
SD
CARBURETOR,LH,INSIDE
€ 487.00
15010J
150101097
ref: 15010J
SD
CARBURETOR,RH,INSIDE
€ 487.00
15010K
150101098
ref: 15010K
SD
CARBURETOR,RH,OUTSIDE
€ 487.00
15010L
150101103
ref: 15010L
EUFRGRITNRSP
CARBURETOR,LH,OUTSIDE
€ 487.00
15010M
150101104
ref: 15010M
EUFRGRITNRSP
CARBURETOR,LH,INSIDE
€ 487.00
15010N
150101105
ref: 15010N
EUFRGRITNRSP
CARBURETOR,RH,INSIDE
€ 487.00
15010O
150101106
ref: 15010O
EUFRGRITNRSP
CARBURETOR,RH,OUTSIDE
€ 615.50
15010P
150101107
ref: 15010P
UK
CARBURETOR,LH,OUTSIDE
€ 487.00
15010Q
150101108
ref: 15010Q
UK
CARBURETOR,LH,INSIDE
€ 487.00
15010R
150101109
ref: 15010R
UK
CARBURETOR,RH,INSIDE
€ 487.00
15010S
150101110
ref: 15010S
UK
CARBURETOR,RH,OUTSIDE
€ 615.50
16021
160211131
ref: 16021
SCREW-THROTTLE STOP
160211131
€ 77.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051108
ref: 92005
AREUFGFRGRITNRSDSPST
FITTING,FUEL,T-TYPE
920051108
€ 16.50
92005A
920051119
ref: 92005A
UK
FITTING,T-TYPE
€ 17.50
92005B
920051125
ref: 92005B
FITTING,T-TYPE
920051125
€ 18.00
92005C
920051157
ref: 92005C
AREUFGFRGRITNRSDSPST
FITTING
€ 25.00
92005D
920051179
ref: 92005D
UK
FITTING,T-TYPE
920051179
€ 21.00
92005E
920051191
ref: 92005E
UK
FITTING,T-TYPE
€ 17.50
92005F
920051192
ref: 92005F
UK
FITTING,T-TYPE
€ 17.50
92005G
920051193
ref: 92005G
UK
FITTING
€ 12.00
92005H
920051200
ref: 92005H
UK
FITTING
€ 18.50
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091632
ref: 92009B
SCREW
920091632
€ 4.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371194
ref: 92037
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92055
920551004
ref: 92055
AREUFGFRGRITNRSDSPST
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
AREUFGFRGRITNRSDSPST
RING-O,FUEL FITTING
920551223
€ 3.50
92055A
920551223
ref: 92055A
UK
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551427
ref: 92055B
UK
RING-O,4.5X1.5
920551427
€ 3.00
92055C
920551454
ref: 92055C
UK
RING-O
920551454
€ 4.00
92059
920591738
ref: 92059
TUBE,7X11X45
€ 17.00
92059A
920591976
ref: 92059A
UK
TUBE,4X10X59
920591976
€ 9.00
92059B
920591977
ref: 92059B
UK
TUBE,4X10X70
920591977
€ 9.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92144
921441518
ref: 92144
SPRING,STARTER LEVER
921441518
€ 14.50
92150
921501211
ref: 92150
BOLT,5X305
921501211
€ 17.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
223
223C0414
ref: 223
UK
SCREW-PAN-WS-CROS
€ 2.50
92170
921701051
ref: 92170
AREUFGFRGRITNRSDSPST
CLAMP,TUBE
921701051
€ 5.50
92170
921701051
ref: 92170
UK
CLAMP,TUBE
921701051
€ 5.50
92170A
921701054
ref: 92170A
UK
CLAMP,TUBE
921701054
€ 5.00
92190
921901030
ref: 92190
UK
TUBE,L=200
921901030
€ 9.00
92190A
921901031
ref: 92190A
UK
TUBE,L=125
€ 9.00
92190B
921901032
ref: 92190B
UK
TUBE,L=40
921901032
€ 3.50
92190C
921901033
ref: 92190C
UK
TUBE,L=25
€ 9.00
92190D
921901043
ref: 92190D
UK
TUBE
€ 13.00
92190E
921901157
ref: 92190E
TUBE,STARTER SPRING
€ 4.50
92190F
921901161
ref: 92190F
AREUFGFRGRITNRSDSPST
TUBE,7.3X12.5X127
€ 19.50
92190G
921901165
ref: 92190G
UK
TUBE,L=110
€ 25.00
92190H
921901167
ref: 92190H
UK
TUBE,7.3X12.5X67
€ 19.50
