IGNITION SWITCH

ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST

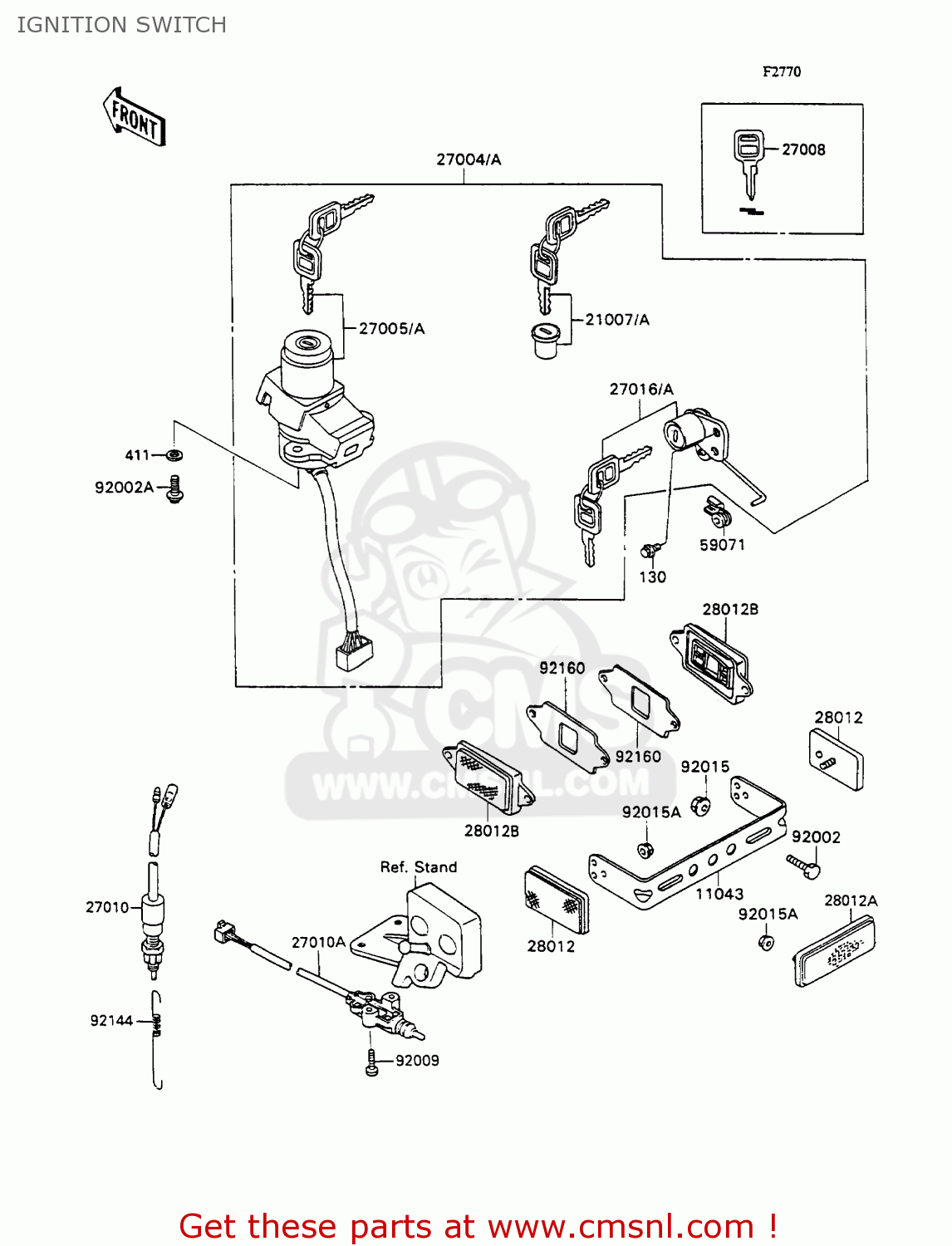

Ignition switch diagram ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST

IGNITION SWITCH ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST
IGNITION SWITCH ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST
IGNITION SWITCH ZX1100C2 ZZR1100 1991 EUROPE UK FR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11043
110431619
ref: 11043
AR
BRACKET,REFLECTOR,RR
110431619
€ 9.00
21007
210075027
ref: 21007
AREUFRGRITSPSTUK
ROTOR,LOCK,TANK CAP
€ 65.50
21007A
210075028
ref: 21007A
FGNRSD
ROTOR,LOCK,TANK CAP
210075028
€ 65.50
27004
270045383
ref: 27004
AREUFRGRITSPSTUK
SWITCH-ASSY
270045383
€ 244.50
27004A
270045384
ref: 27004A
FGNRSD
SWITCH-ASSY
€ 244.50
27005
270055082
ref: 27005
AREUFRGRITSPSTUK
SWITCH-ASSY-IGNITION
€ 267.50
27005A
270055083
ref: 27005A
FGNRSD
SWITCH-ASSY-IGNITION
270055083
€ 147.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
270101093
€ 20.00
27010A
270101226
ref: 27010A
SWITCH,SIDE STAND
270101226
€ 47.50
27016
270165165
ref: 27016
AREUFRGRITSPSTUK
LOCK-ASSY,SEAT
€ 43.50
27016A
270165166
ref: 27016A
FGNRSD
LOCK-ASSY,SEAT
€ 43.50
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121057
ref: 28012A
REFLECTOR-REFLEX
280121057
€ 16.00
28012B
280121068
ref: 28012B
AR
REFLECTOR-REFLEX,FR,S
280121068
€ 34.00
59071
590711125
ref: 59071
JOINT
590711125
€ 5.00
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92009
920091459
ref: 92009
SCREW
920091459
€ 2.50
92015
920151193
ref: 92015
AR
NUT,FLANGED,6MM
920151193
€ 0.50
130
130B0510
ref: 130
BOLT-FLANGED
130B0510
€ 1.50
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
92015A
920151259
ref: 92015A
EUFGFRGRITNRSDSPSTUK
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151259
ref: 92015A
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92144
921441283
ref: 92144
SPRING,REAR BRAKE SWI
921441283
€ 3.50
92160
921601192
ref: 92160
AR
DAMPER,REFLECTOR
921601192
€ 6.00
