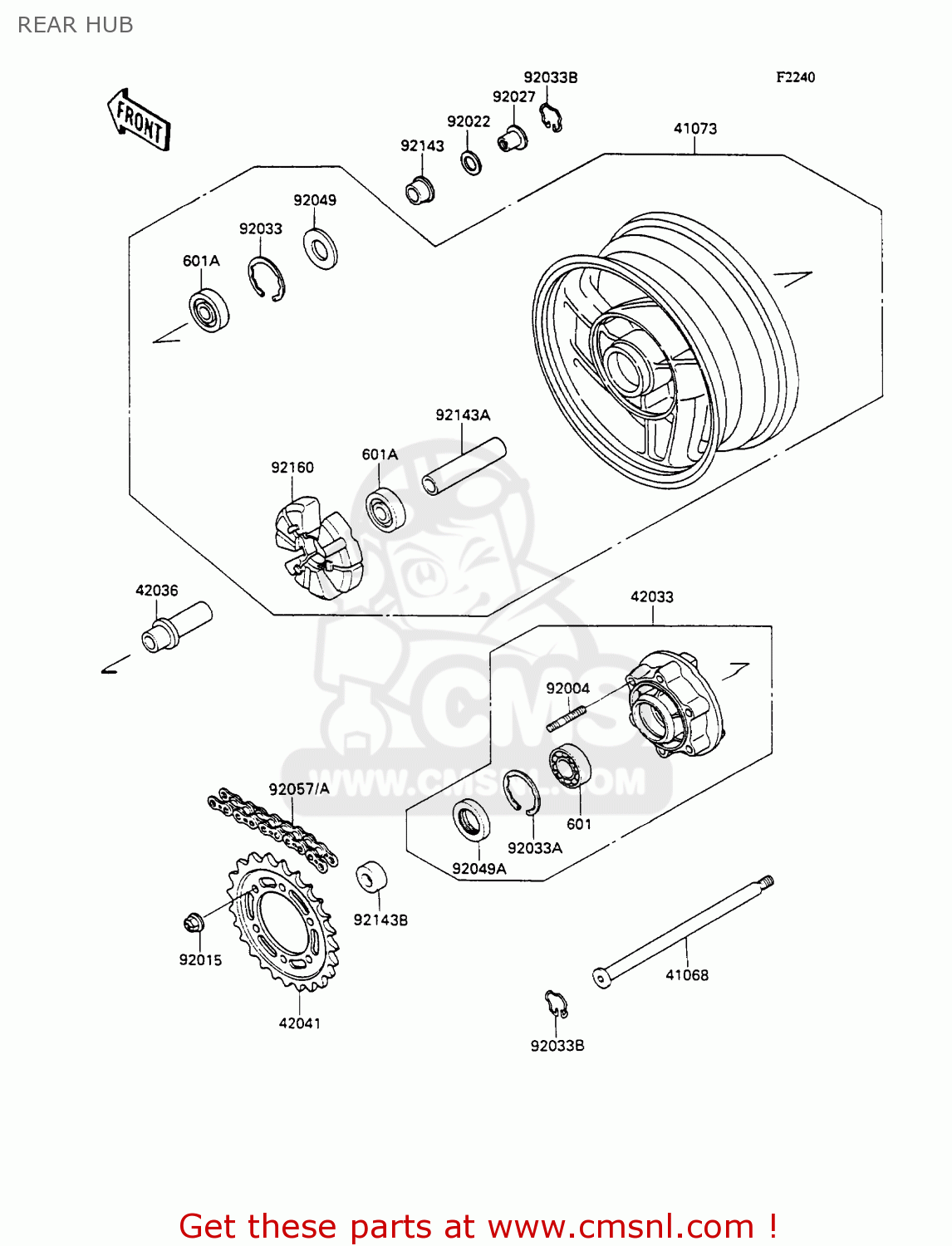

REAR HUB

ref

part #

description

quantity

601

601B6206UU
ref: 601

BEARING-BALL,#6206UUC

€ 41.00

601A

601B6304UU
ref: 601A

BEARING-BALL,#6304UUC

€ 34.50

41068

410681312
ref: 41068

AXLE,RR

€ 89.00

41073

410731464GE
ref: 41073

WHEEL-ASSY,RR,G.GRAY

€ 775.50

42033

420331133GD
ref: 42033

COUPLING-ASSY,RR HUB,

€ 238.00

42036

420361229
ref: 42036

SLEEVE,RR AXLE,L=62

€ 26.50

42041

420411283
ref: 42041

SPROCKET-HUB,45T

€ 53.00

92004

920041146
ref: 92004

STUD,10X24

€ 4.00

92015

920151720
ref: 92015

NUT,10MM

€ 3.50

92022

920221618
ref: 92022

WASHER,23X32X2.3

€ 4.00

92027

920271810
ref: 92027

COLLAR,RR AXLE,L=28

€ 21.00

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92033A

920331044
ref: 92033A

CIRCLIP 62 M/M

€ 7.50

92033B

920331156
ref: 92033B

RING-SNAP,RR AXLE

€ 3.00

92049

920491061
ref: 92049

SEAL-OIL,28X52X5

€ 13.00

92049A

92050027
ref: 92049A

OIL SEAL

€ 13.50

92057A

920571325
ref: 92057A

CHAIN,DRIVE,EK50UV-XX

€ 102.50

92143

921431042
ref: 92143

COLLAR,L=23

€ 19.50

92143A

921431384
ref: 92143A

COLLAR,RR HUB,L=99

€ 15.00

92143B

921431385
ref: 92143B

COLLAR,RR AXLE,L=12

€ 18.50

92160

921601051
ref: 92160

DAMPER,SHOCK,RR HUB

€ 97.50

all assemblies
