SUSPENSION

ZX1100C1 ZZR1100 1990 EUROPE UK FR FG GR IT NR SD SP ST

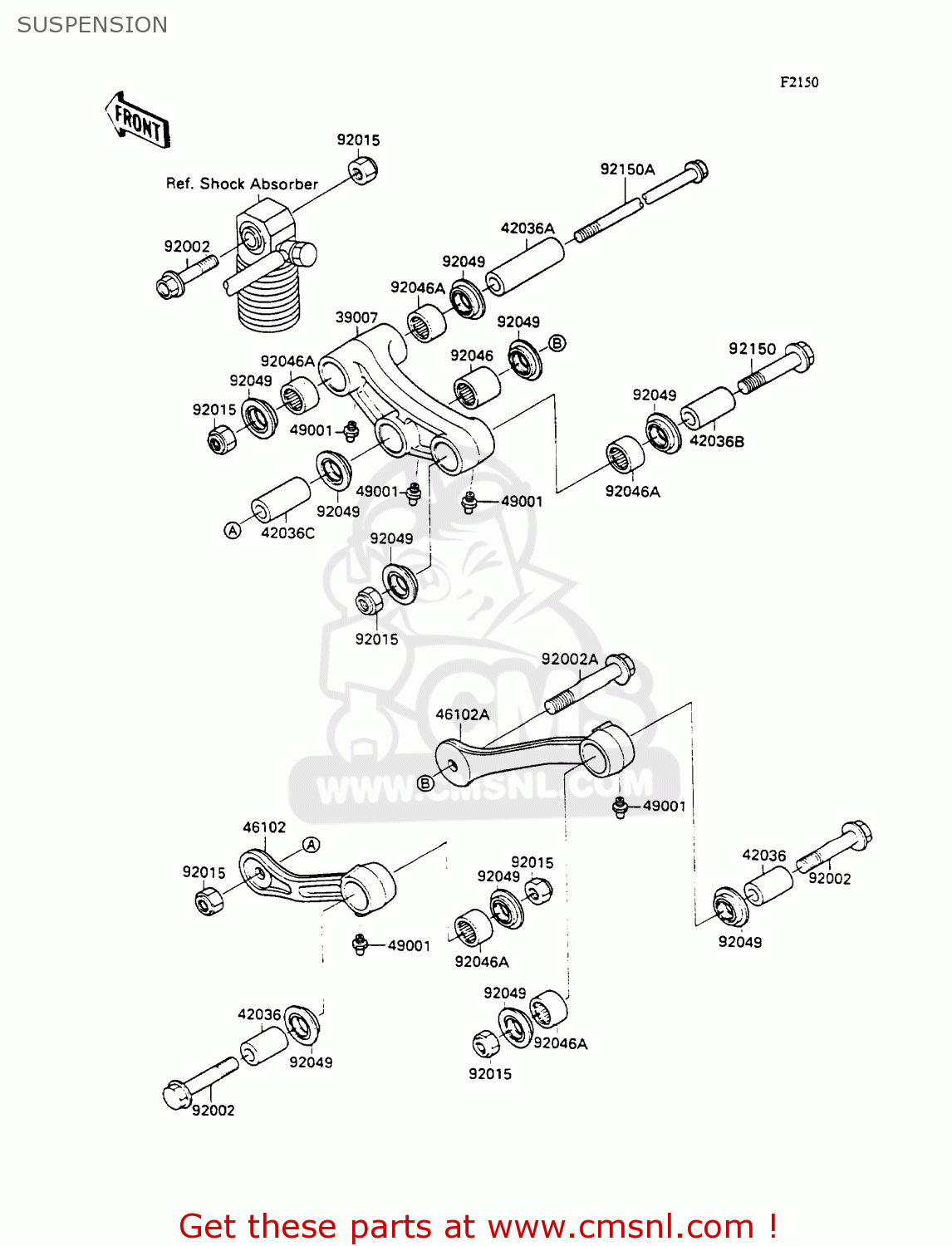

Suspension diagram ZX1100C1 ZZR1100 1990 EUROPE UK FR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

39007

390071107
ref: 39007

ARM-SUSP,UNI TRAK

€ 145.50

42036

420361077
ref: 42036

SLEEVE,ARM,RR

€ 11.50

42036A

420361079
ref: 42036A

SLEEVE,12.1X20X70

€ 19.00

42036B

420361108
ref: 42036B

SLEEVE,12.1X20X40

€ 14.00

42036C

420361111
ref: 42036C

SLEEVE,12.5X20X50

€ 15.00

46102

461021248
ref: 46102

ROD,SUSPENSION,LH

€ 91.50

46102A

461021249
ref: 46102A

ROD,SUSPENSION,RH

€ 91.50

49001

490011051
ref: 49001

NIPPLE-GREASE,ROD BOL

€ 2.00

92002

920021464
ref: 92002

BOLT,FLANGED,12X60

€ 8.50

92002A

920021785
ref: 92002A

BOLT,SUSPENSION ARM,1

€ 10.50

92015

920151190
ref: 92015

NUT,LOCK,12MM,BLACK

€ 4.50

92046

920461110
ref: 92046

BEARING-NEEDLE,BM2027

€ 22.50

92046A

920461112
ref: 92046A

BEARING-NEEDLE,BM2027

€ 21.50

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50

92150

921501115
ref: 92150

BOLT,FLANGED,12X70

€ 6.00

92150A

921501116
ref: 92150A

BOLT,FLANGED,12X165

€ 14.00
