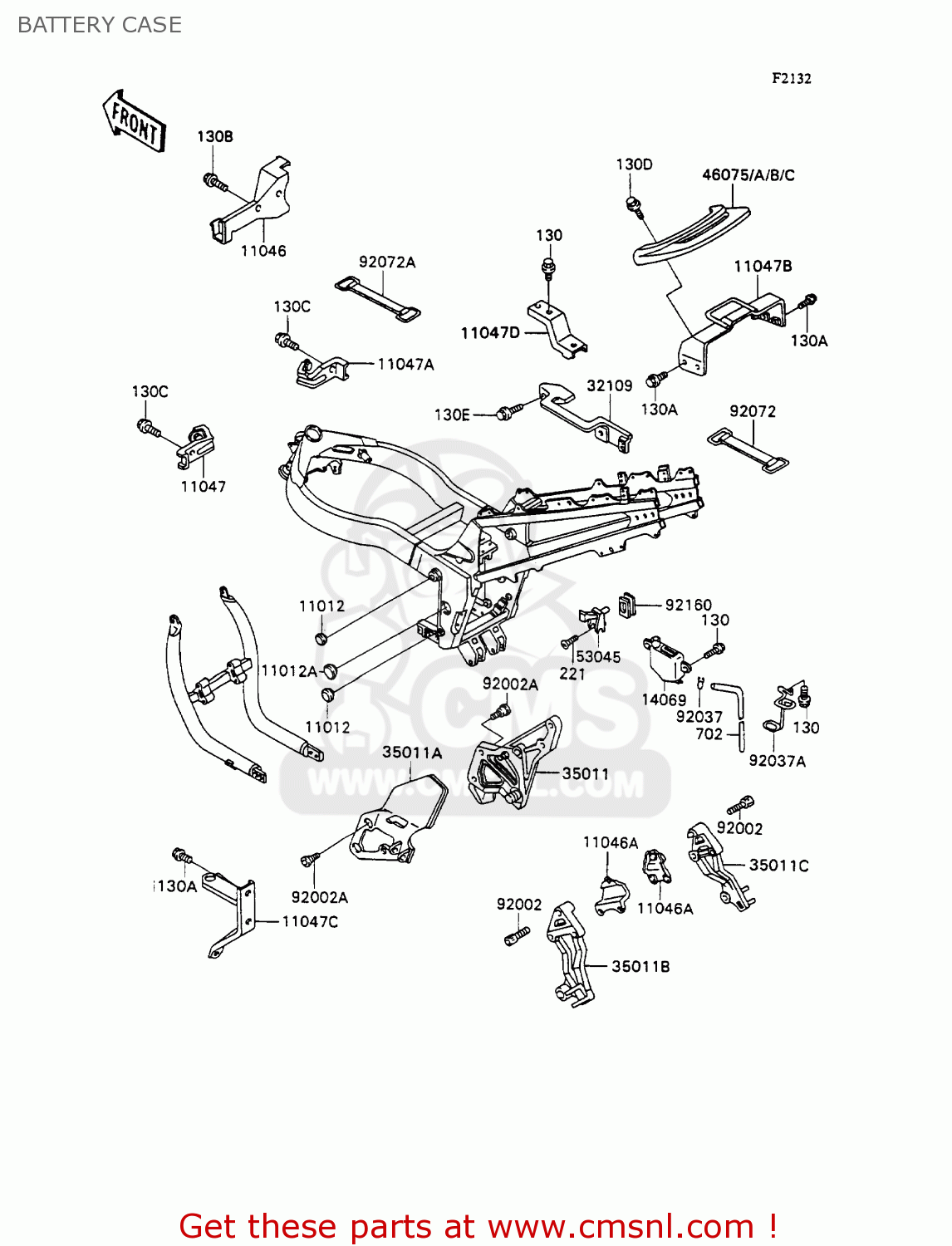

BATTERY CASE

ref

part #

description

quantity

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

130A

130J0614
ref: 130A

BOLT-FLANGED,6X14,BLA

€ 1.50

130B

130J0616
ref: 130B

BOLT-FLANGED,6X16

€ 1.50

130C

130J0812
ref: 130C

BOLT-FLANGED

€ 0.50

130D

130J0820
ref: 130D

BOLT-FLANGED,8X20

€ 0.50

130E

130J0825
ref: 130E

BOLT-FLANGED,8X25,BLA

€ 2.00

221

221E0625
ref: 221

SCREW-CSK-CROS

€ 2.50

702

702A07380
ref: 702

TUBE-RUBBER

€ 9.50

11012

110121460
ref: 11012

CAP

€ 7.50

11012A

110121657
ref: 11012A

CAP

€ 11.00

11046

110461262
ref: 11046

BRACKET,FUEL PUMP

€ 8.00

11046A

110461722
ref: 11046A

BRACKET,MUFFLER STAY

€ 7.50

11047

110461890
ref: 11047

BRACKET,RADIATOR,LH

€ 14.00

11047A

110461891
ref: 11047A

BRACKET,RADIATOR,RH

€ 11.00

11047B

110461934
ref: 11047B

BRACKET,TAIL GRIP

€ 35.50

11047C

110461936
ref: 11047C

BRACKET,OIL COOLER

€ 13.50

11047D

110461975
ref: 11047D

BRACKET,RR FENDER,FR

€ 22.50

14069

140691054
ref: 14069

BREATHER

€ 16.50

32109

321091198
ref: 32109

GRIP-FRAME

€ 46.50

35011

350111417GD
ref: 35011

STAY,STEP HOLDER,RH,C

€ 77.00

35011A

350111520GD
ref: 35011A

STAY,STEP HOLDER,LH,G

€ 68.50

35011B

350111521GD
ref: 35011B

STAY,RR,LH,G.GRAY

€ 37.00

35011C

350111522GD
ref: 35011C

STAY,RR,RH,G.GRAY

€ 72.00

46075

460751091HB
ref: 46075
AREUFGFRGRITNRSDSTUK

GRIP,TAIL,L.ROUGE

€ 80.50

46075A

460751091H8
ref: 46075A

GRIP,TAIL,EBONY

€ 136.00

53045

530451057
ref: 53045

HOOK-ASSY,ROPE

€ 25.00

92002

920021334
ref: 92002

BOLT,SOCKET,8X22

€ 2.50

92002A

920021493
ref: 92002A

BOLT,SOCKET,8X20

€ 1.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371875
ref: 92037A

CLAMP,HOSE

€ 6.50

92072

92072045
ref: 92072

BAND-OIL TANK

€ 10.00

92072A

920721188
ref: 92072A

BAND

€ 9.50

92160

921601042
ref: 92160

DAMPER,ROPE HOOK

€ 3.50
