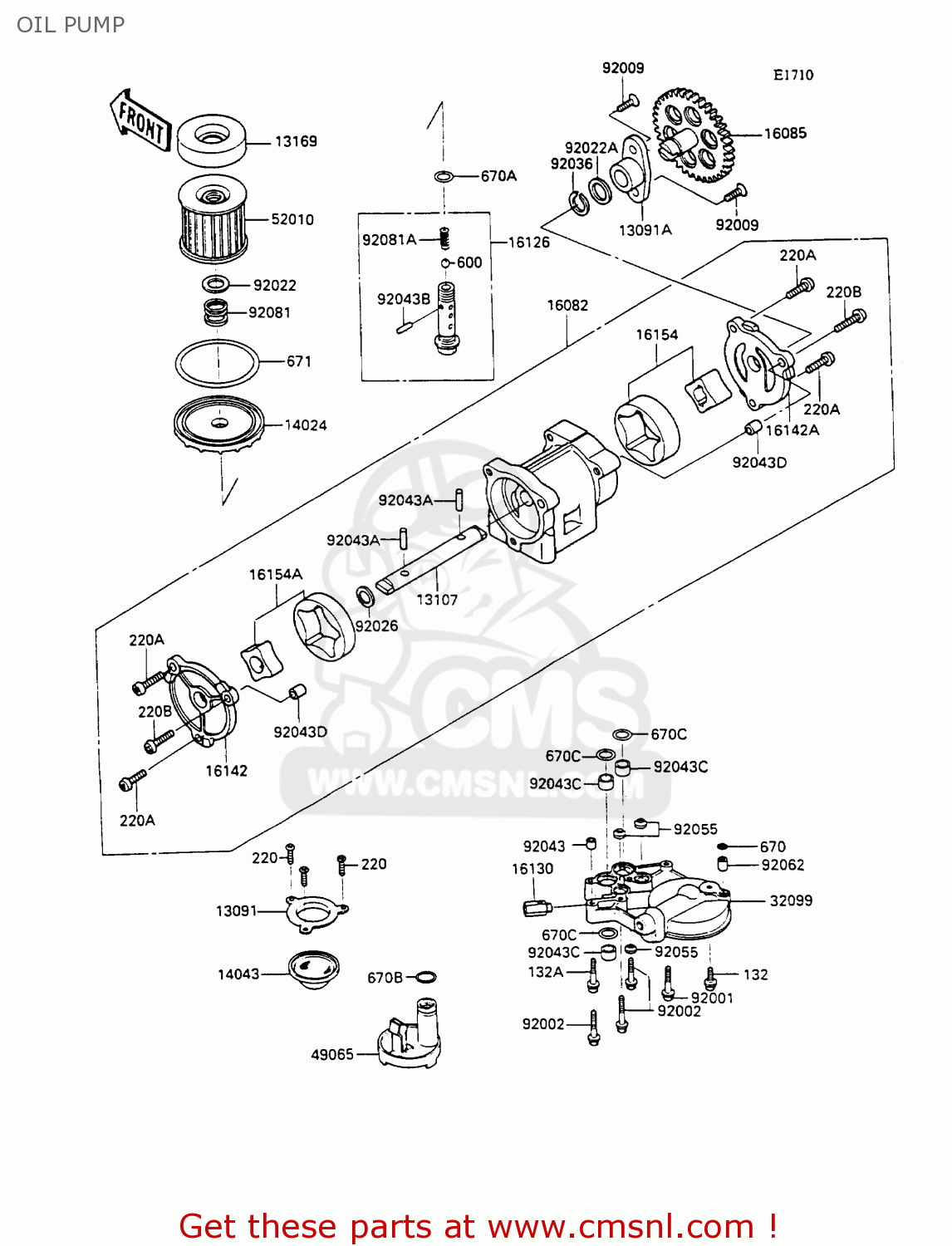

OIL PUMP

ref

part #

description

quantity

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

132A

132G0645
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

220A

220B0618
ref: 220A

SCREW-PAN HEAD,6X18

€ 2.50

220B

220B0625
ref: 220B

SCREW-PAN HEAD,6X25

€ 1.50

600

600A1200
ref: 600

BALL-STEEL,3/8

€ 0.50

670

670B1508
ref: 670

O RING,8MM

€ 1.00

13091

130911274
ref: 13091

HOLDER,OIL FILTER

€ 9.50

13091A

130911333
ref: 13091A

HOLDER,PUMP GEAR

€ 21.00

13107

131071236
ref: 13107

SHAFT,OIL PUMP

€ 46.00

13169

131691313
ref: 13169

PLATE,OIL FILTER

€ 7.00

14024

140251422
ref: 14024

COVER,OIL FILTER,F.BL

€ 31.00

14043

16111003
ref: 14043

STRAINER,OIL

€ 10.00

16082

160821096
ref: 16082

PUMP-ASSY-OIL

€ 166.50

16085

160851103
ref: 16085

GEAR,OIL PUMP,35T

€ 84.00

16126

161261108
ref: 16126

VALVE,OIL FILTER

€ 29.00

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

16142

161421088
ref: 16142

COVER-PUMP,LH

€ 32.00

16142A

161421089
ref: 16142A

COVER-PUMP,RH

€ 32.00

16154

161541007
ref: 16154

ROTOR ASSY,OIL PUMP

€ 51.50

16154A

161541078
ref: 16154A

ROTOR-PUMP

€ 51.50

32099

320991083
ref: 32099

CASE,OIL FILTER

€ 89.00

49065

490651063
ref: 49065

FILTER-OIL

€ 17.00

52010

16099003
ref: 52010

FILTER,OIL

€ 6.50

92001

920011105
ref: 92001

BOLT,HEX HEAD,6X38

€ 3.00

92002

920021431
ref: 92002

BOLT,6X38

€ 3.50

92009

920091360
ref: 92009

SCREW,6X16

€ 2.50

92022

920221012
ref: 92022

WASHER,20.5X30X1

€ 3.00

92022A

920221495
ref: 92022A

WASHER,14X20X1

€ 2.50

92026

920261230
ref: 92026

SPACER,OIL PUMP

€ 2.50

92036

920361052
ref: 92036

RING-SNAP,PUMP GEAR

€ 4.00

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92043A

920431061
ref: 92043A

PIN,DOWEL,5X17.8

€ 3.00

92043B

92043111
ref: 92043B

SPRING PIN

€ 4.00

92043C

920431213
ref: 92043C

PIN,18X20X12

€ 4.00

92043D

920431302
ref: 92043D

PIN,DOWEL,8X10

€ 1.00

92055

92055077
ref: 92055

O RING

€ 4.00

92062

920621055
ref: 92062

NOZZLE

€ 6.50

92081

920811018
ref: 92081

SPRING,OIL FILTER

€ 3.00

92081A

92081109
ref: 92081A

SPRING

€ 7.50

670A

670B2016
ref: 670A

O RING,16MM

€ 1.00

670B

670B2018
ref: 670B

O RING,18MM

€ 1.00

670C

670D2020
ref: 670C

O RING,20MM

€ 4.00

671

671B2590
ref: 671

O RING,90MM

€ 6.50

all assemblies
